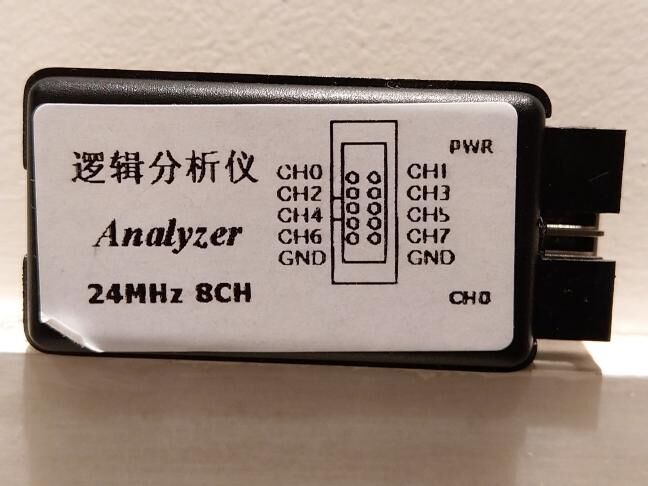

128axc-based USBee AX-Pro clone

Status Supported
Channels 8
Sample Rate 24MHz
Memory None
Triggers None (Software Only)
Voltage Range -0.5V — 5.25V

The 128axc-based USBee AX-Pro clone is a USB-based logic analyzer with 8-channel and up to 24MHz sample-rate.

It is yet another Cypress FX2 based logic analyzer. This one reports on USB as 08a9:0014 which is CWAV USBee AX-Pro, but contrary to the original (or other clones such as HT_USBee-AxPro), it has no Analog input.

In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.

See 128axc-based USBee AX-Pro clone/Info for more details (such as lsusb -v output) about the device.

Hardware

  • Main chip: Cypress CY7C68013A-128AXC (FX2)
  • Input buffer: NXP HC245
  • 2kByte I²C EEPROM: Atmel A24C02BN
  • Voltage regulator: AMS 117
  • 24MHz crystal: RJH24.000
  • No DAC is present, no Analog entry possible.

Photos

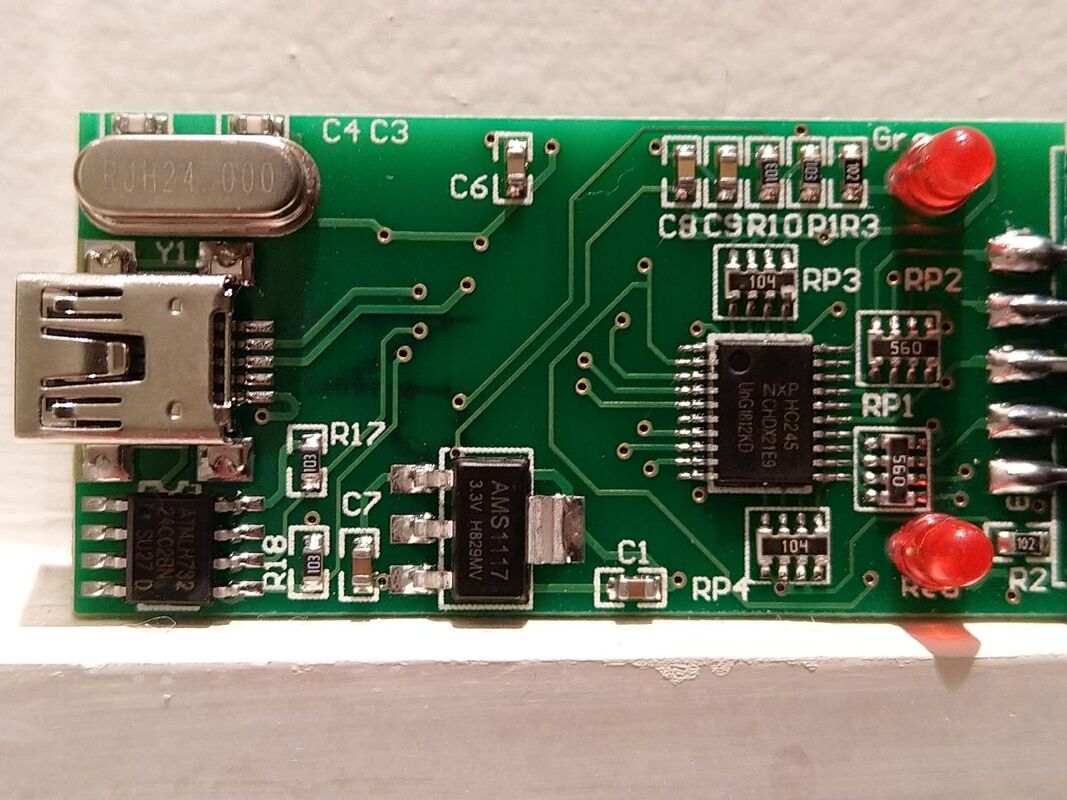

PCB, top

PCB, top

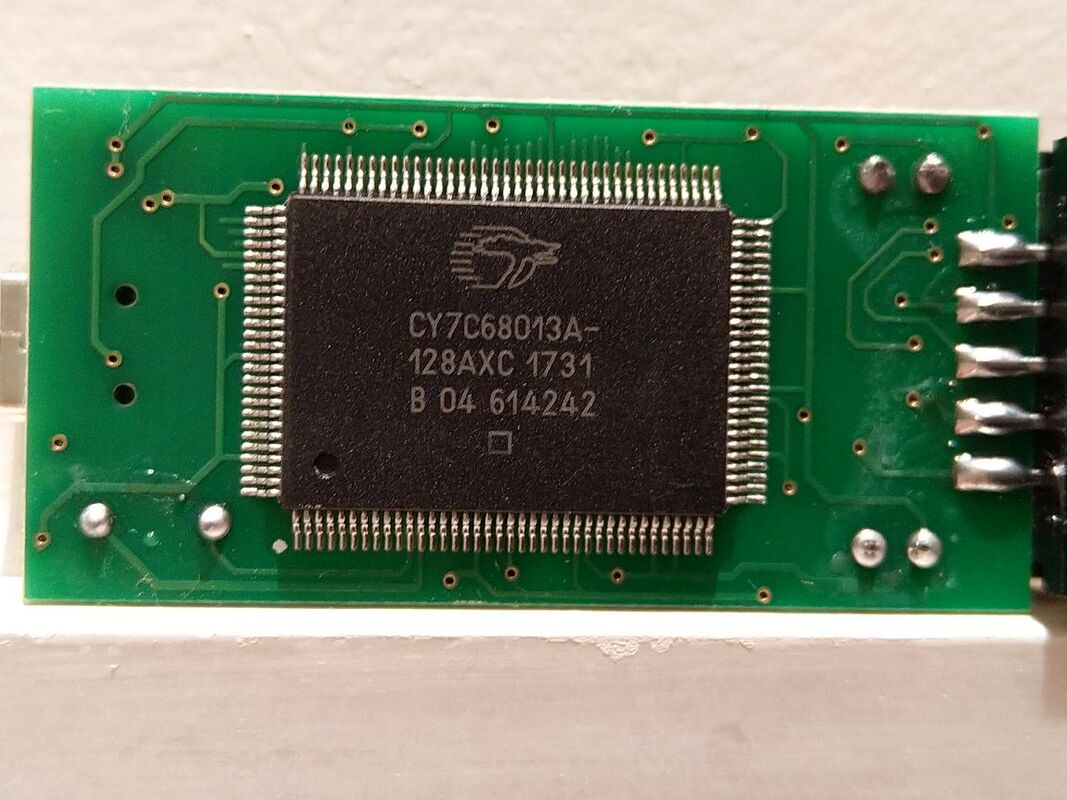

PCB, bottom, CY7C68013A-128AXC

PCB, bottom, CY7C68013A-128AXC

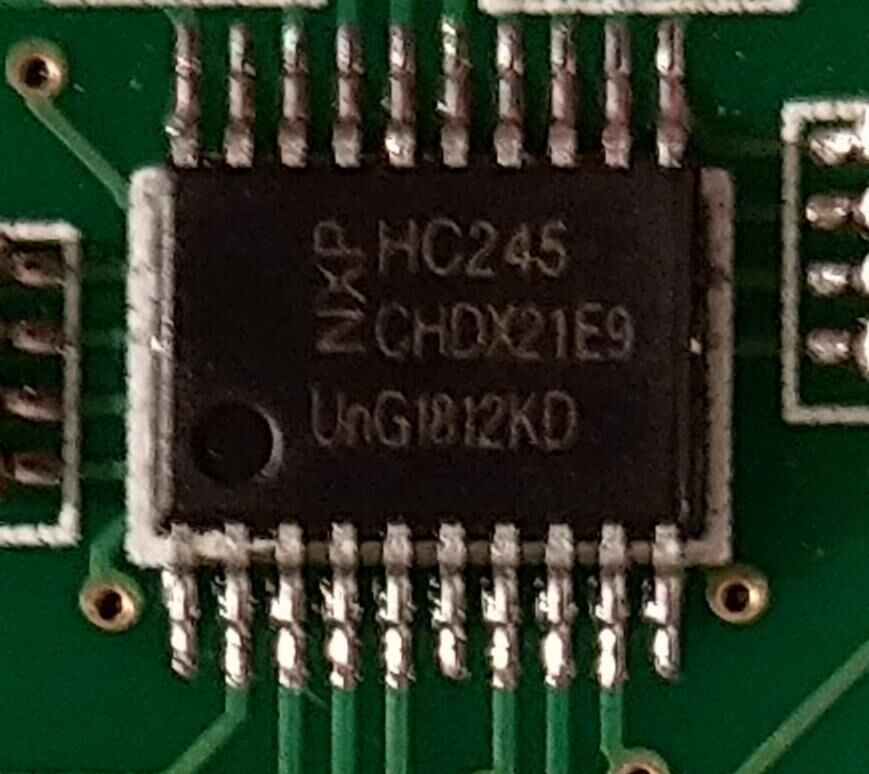

NXP HC245 Input Buffer

NXP HC245 Input Buffer

Protocol

Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
