Acute PKLA-1216
| Status | Planned |
| Channels | 16 |
| Sample Rate | 200MHz |
| Memory | 256kb/Channel |
| Triggers | pattern, edge, |
| Voltage Range | -30V — 30V |
| Website | http://www.acute.com.tw/product/la.php |
てへぺろ
(・ω<)~✧
missing image
(・ω<)~✧
missing image
The Acute PKLA-1216 is a 200MHz, 16-channel, USB-based logic analyzer.
See Acute PKLA-1216/Info for more details (such as lsusb -vvv output) about the device.

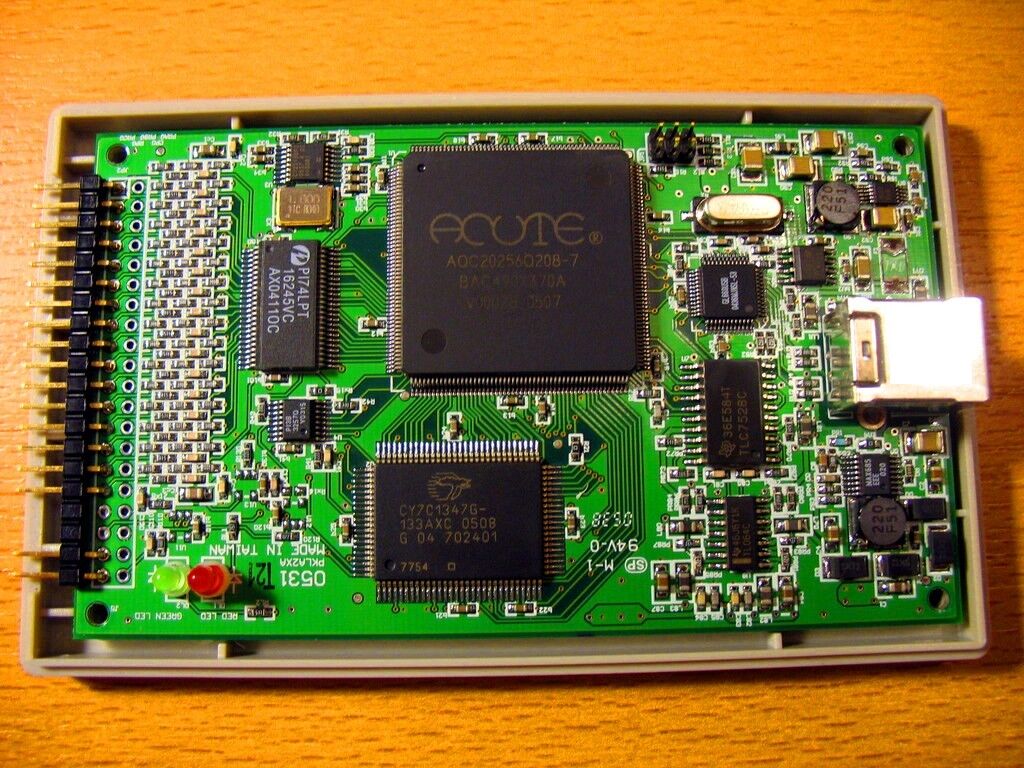

Hardware

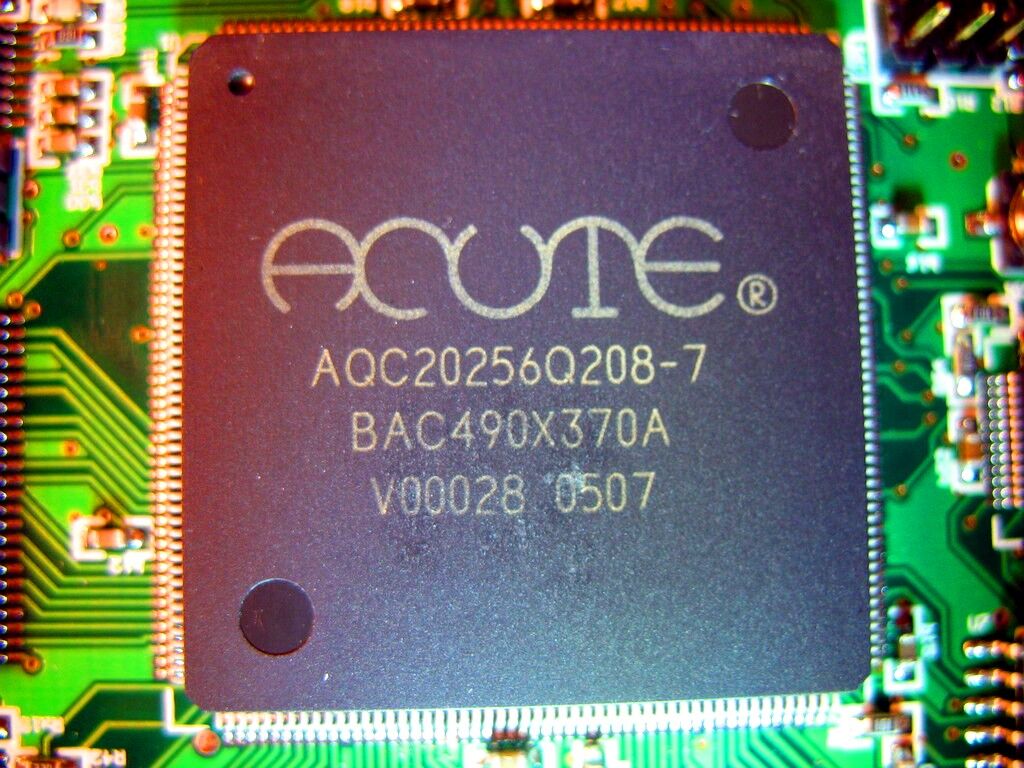

- Main chip (ASIC): Acute AQC20256Q208-7 BAC490X370A V00028 0507

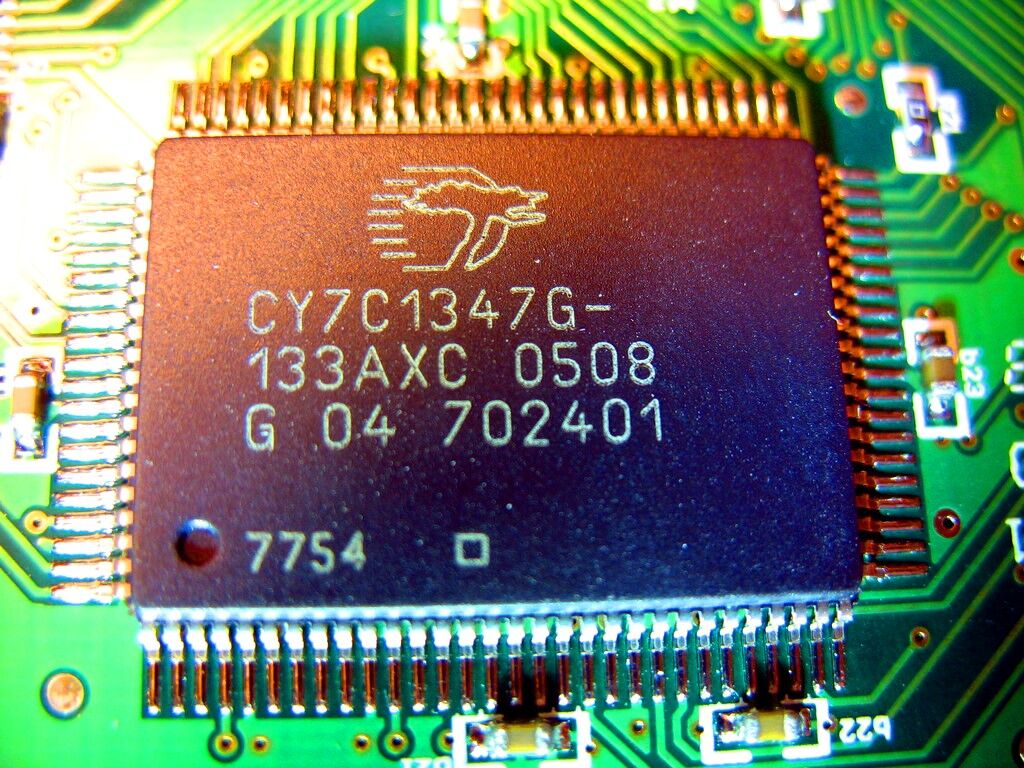

- SRAM (4MBit): Cypress CY7C1347G-133AXC (datasheet )

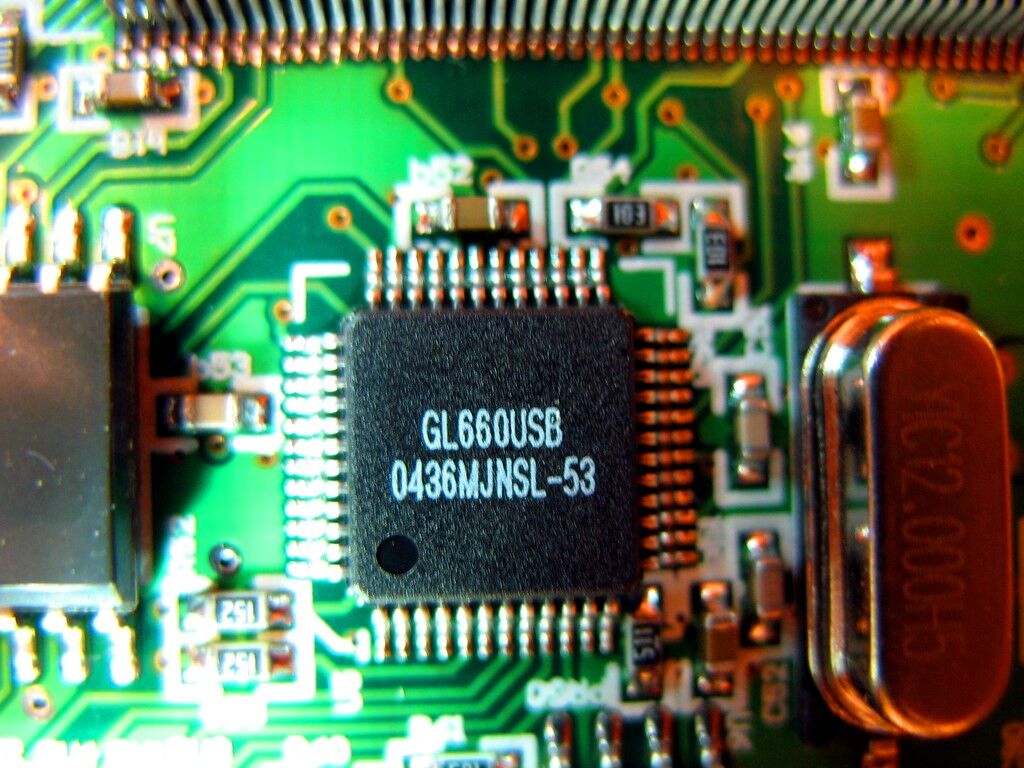

- USB2.0 to IEEE-1284 / DMA Bridge: Genesys GL660USB

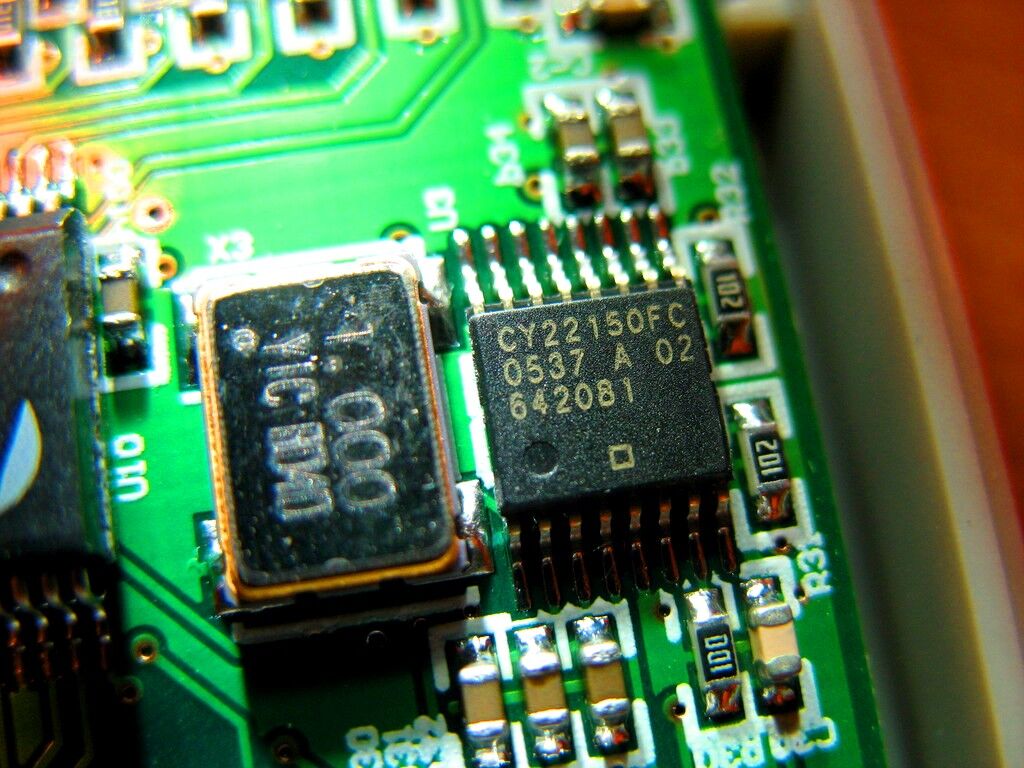

- One-PLL General-Purpose Flash-Programmable and I2C Programmable Clock Generator: Cypress CY22150FC (datasheet )

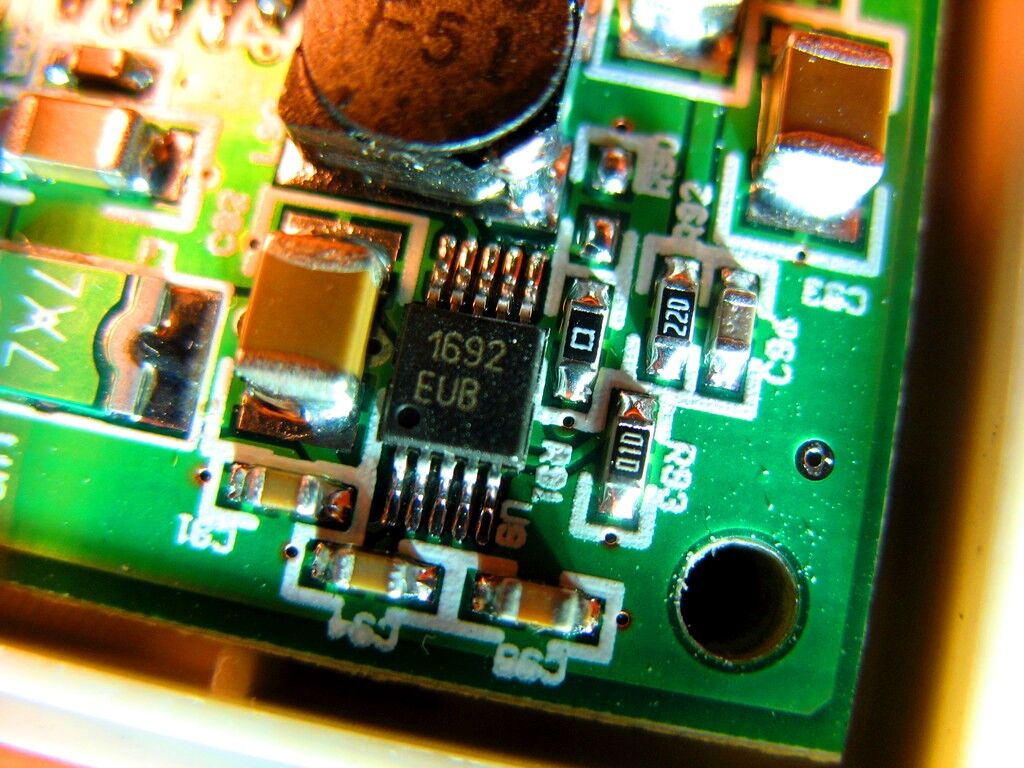

- Low-Noise, 5.5V-Input, PWM Step-Down Regulator: Maxim MAX1692EUB (datasheet )

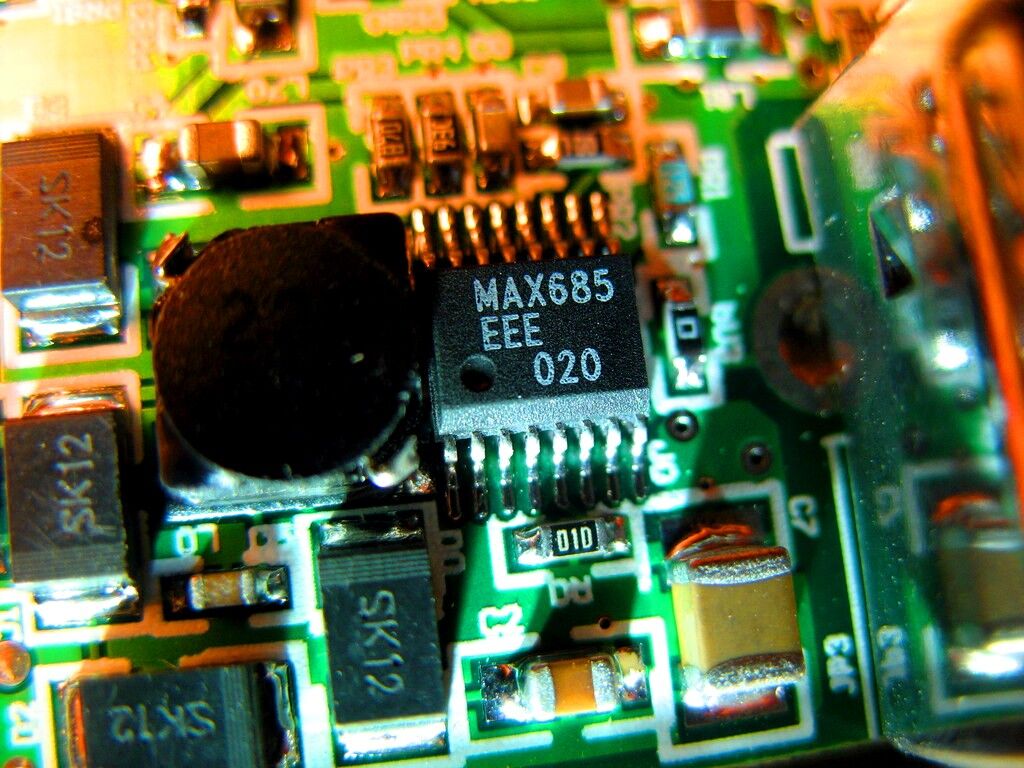

- Dual-Output (Positive and Negative), DC-DC Converter for CCD and LCD: Maxim MAX685 (datasheet )

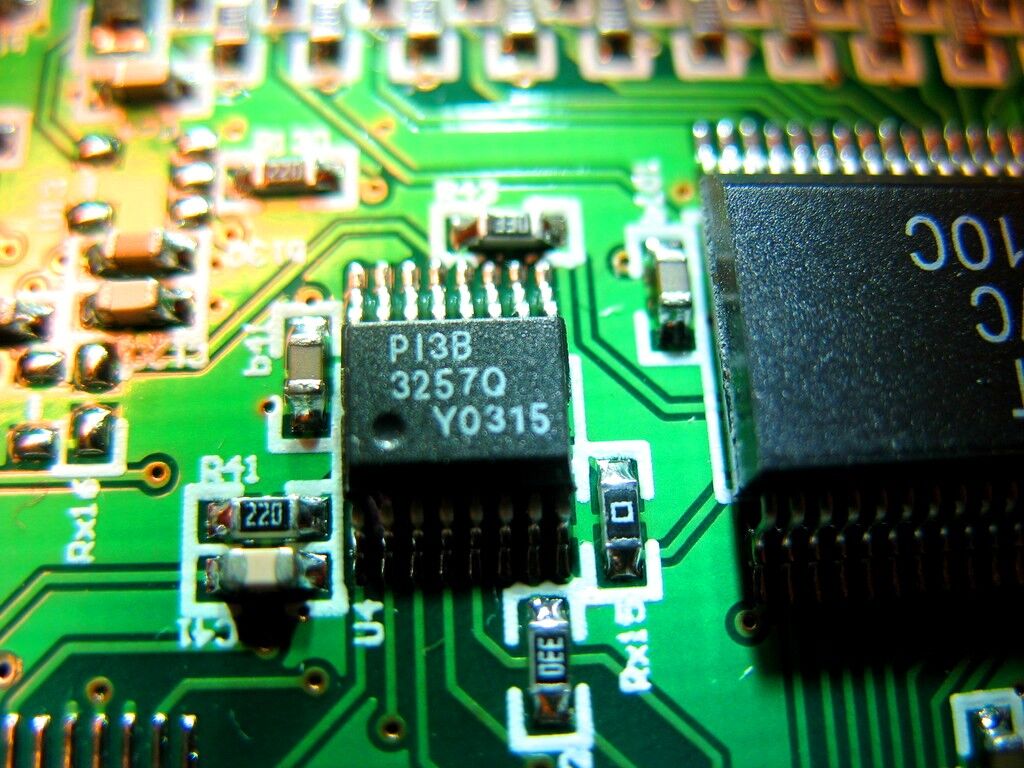

- 3.3V, Quad 2:1 Mux/DeMux NanoSwitch: Pericom PI3B3257Q (datasheet )

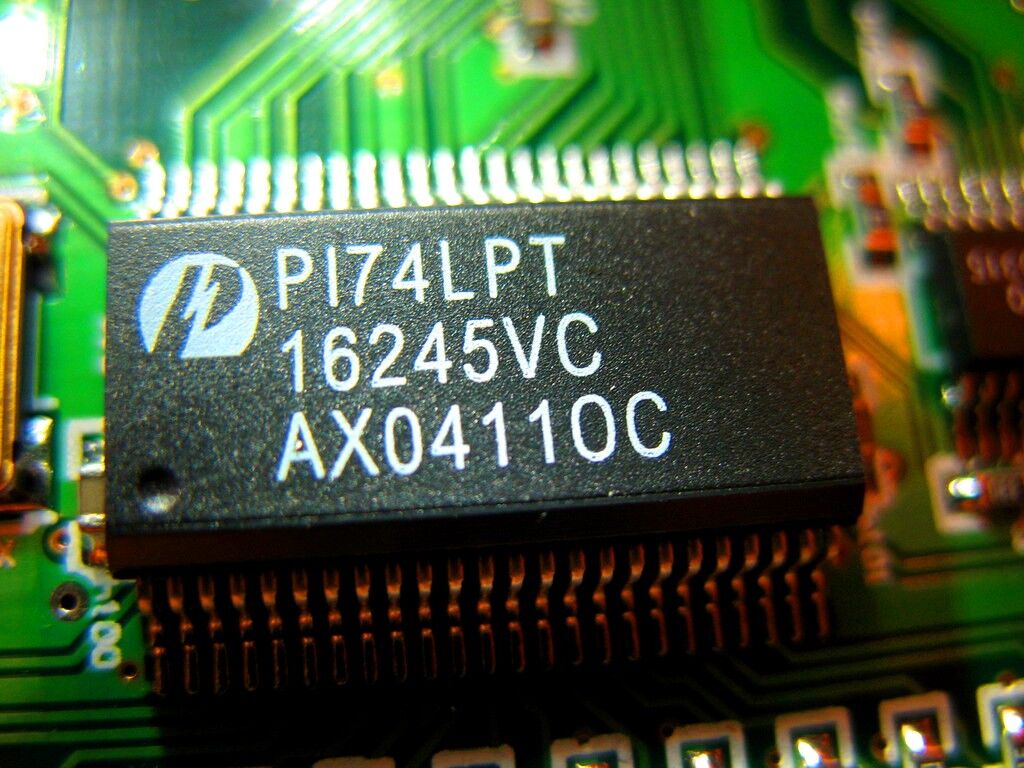

- 16-Bit Bidirectional Transceiver: Pericom PI74LPT16245 (datasheet )

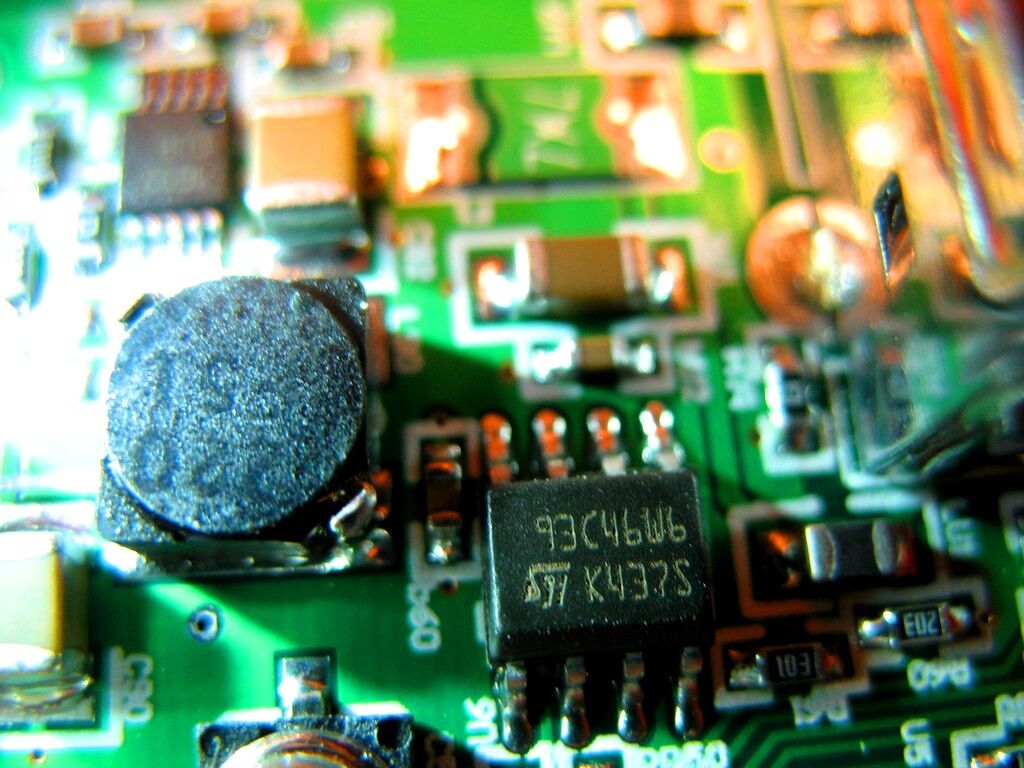

- 1kBit Microwire EEPROM: M93C46-W (datasheet )

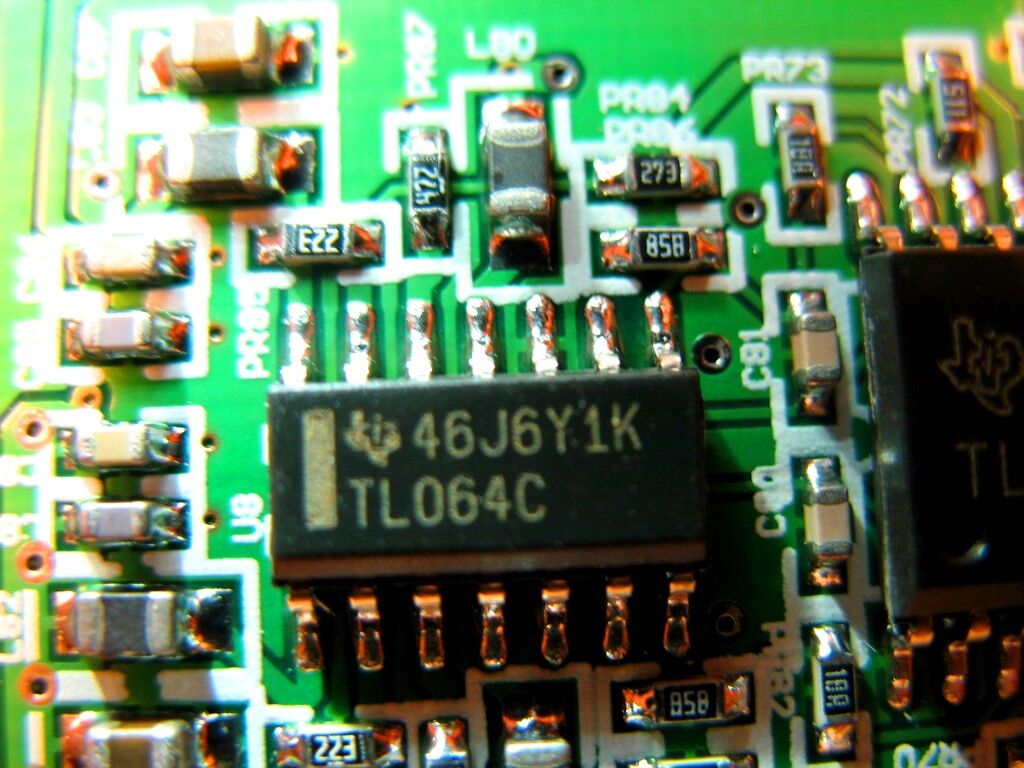

- Quad Low-Power JFET-Input General-Purpose Operational Amplifier: Texas Instruments TL064 (datasheet )

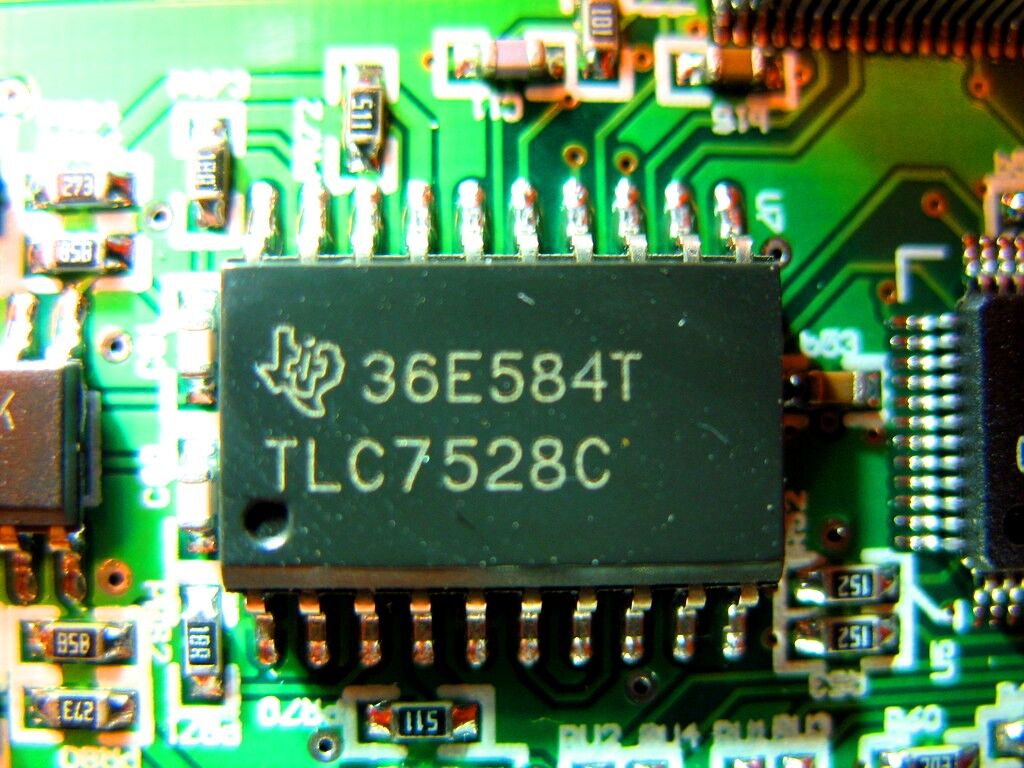

- Dual 8-Bit Multiplying Digital-to-Analog Converters: TLC7528 (datasheet )
- 12MHz crystal: YI12.000H5

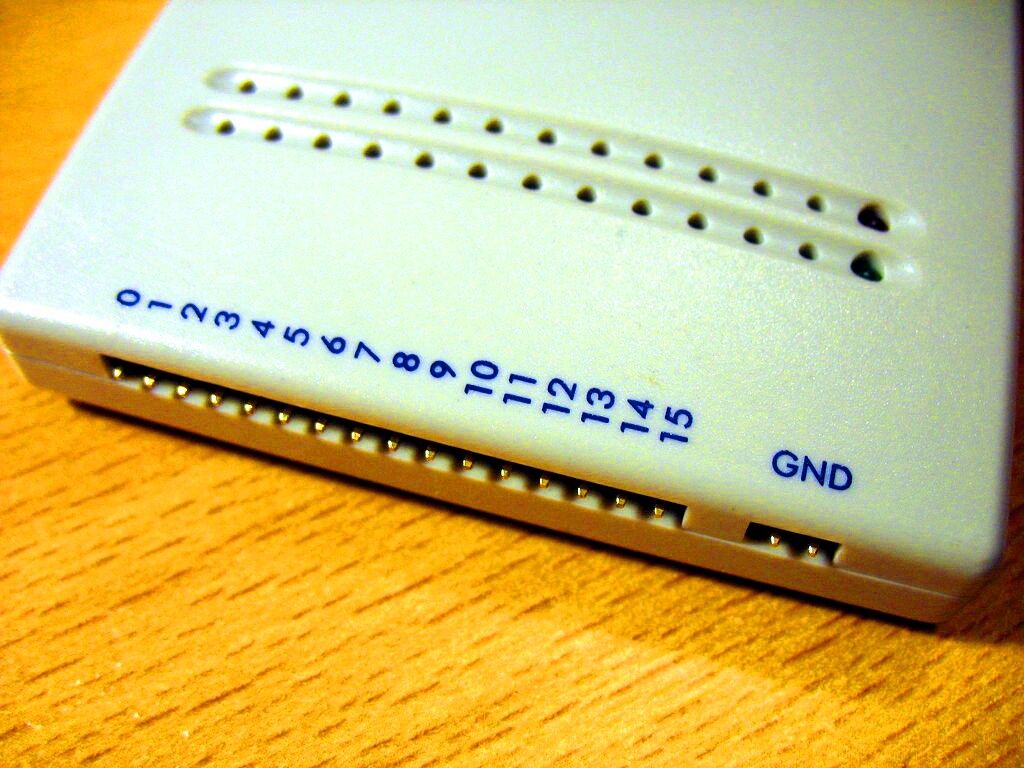

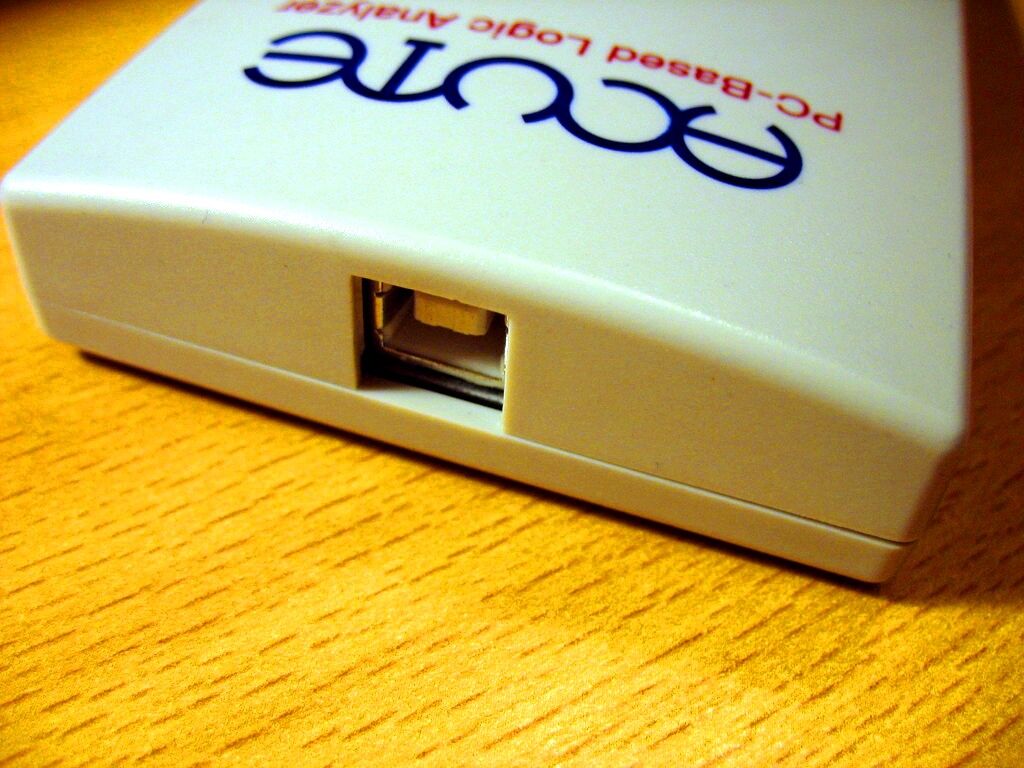

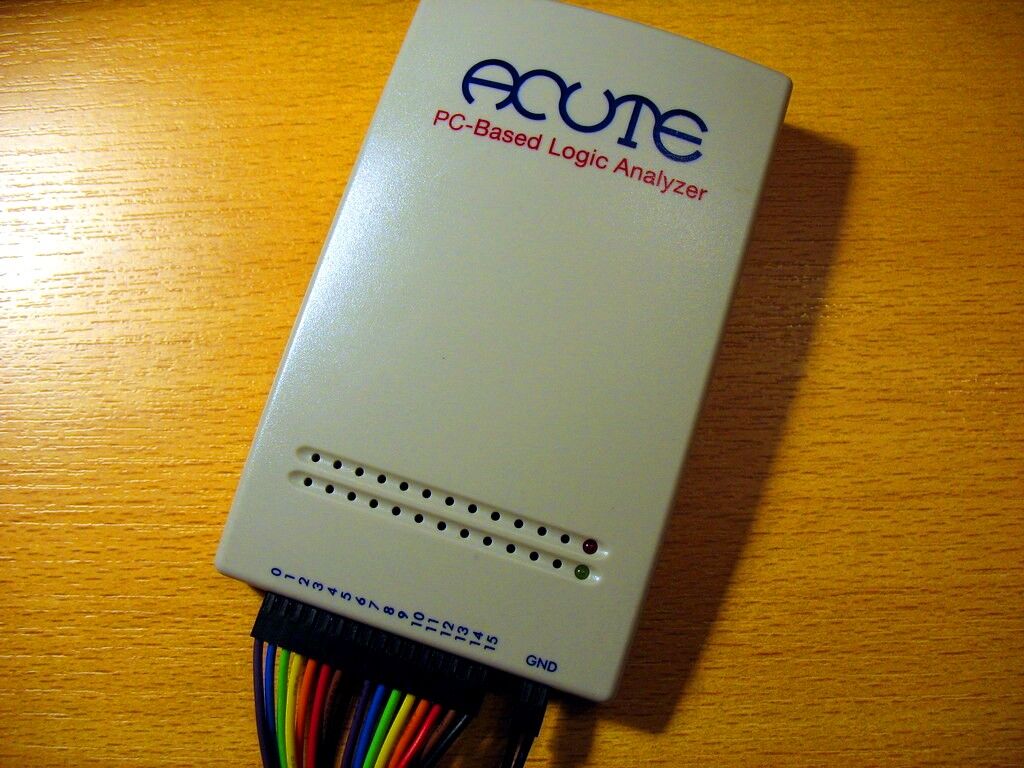

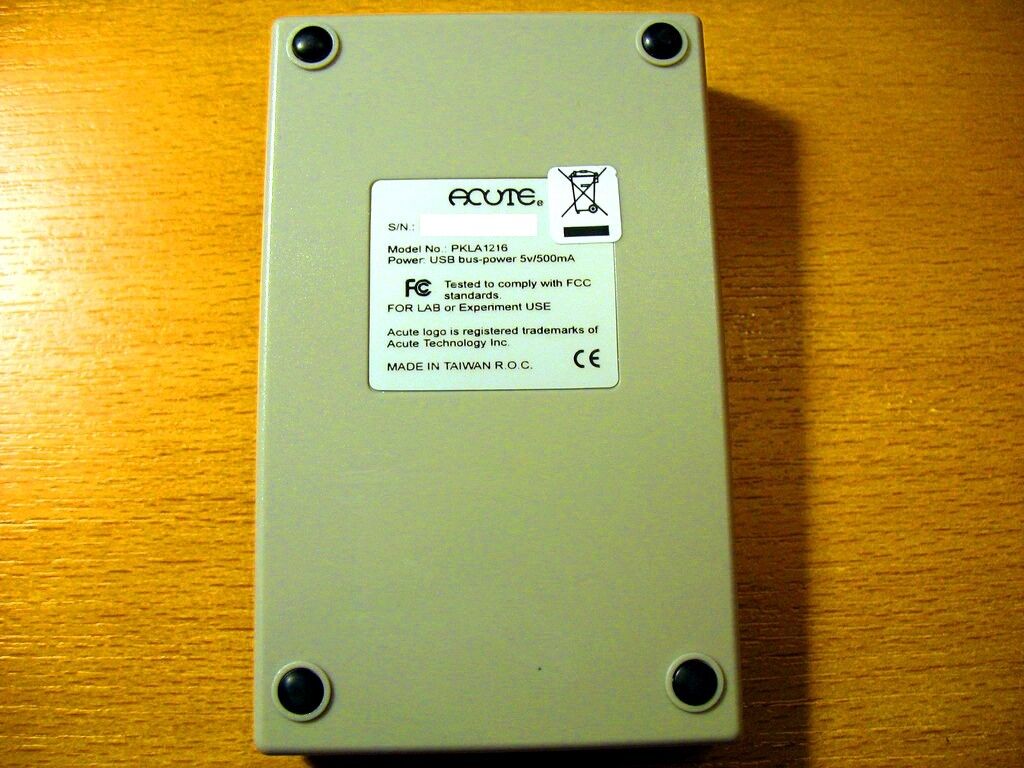

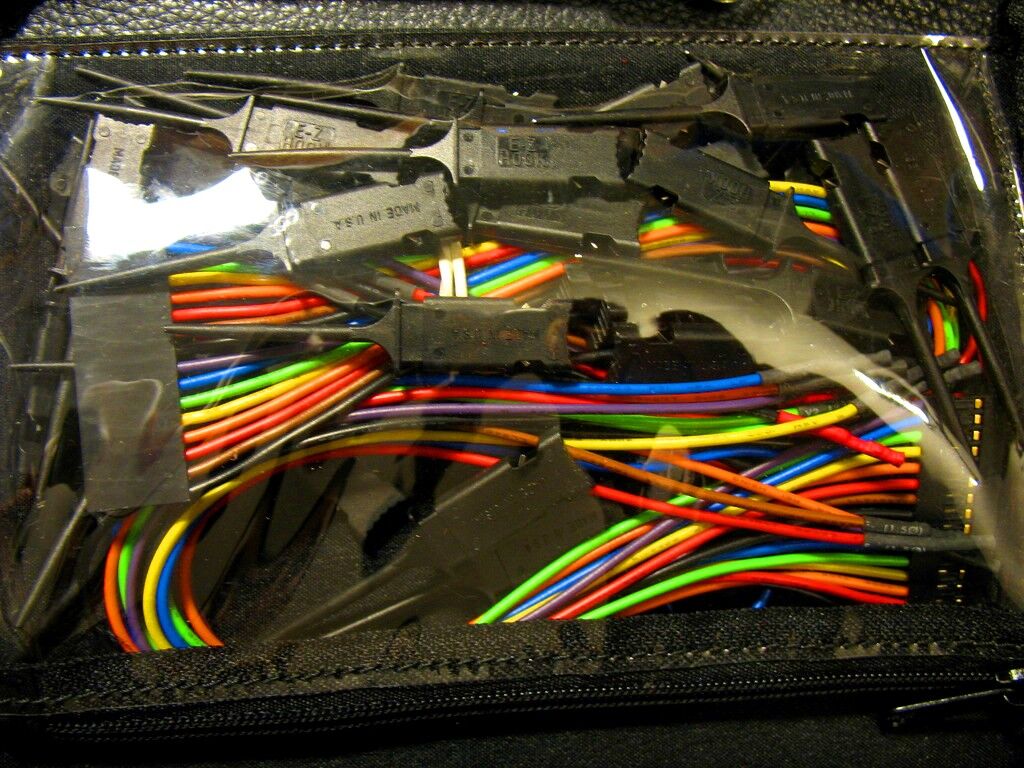

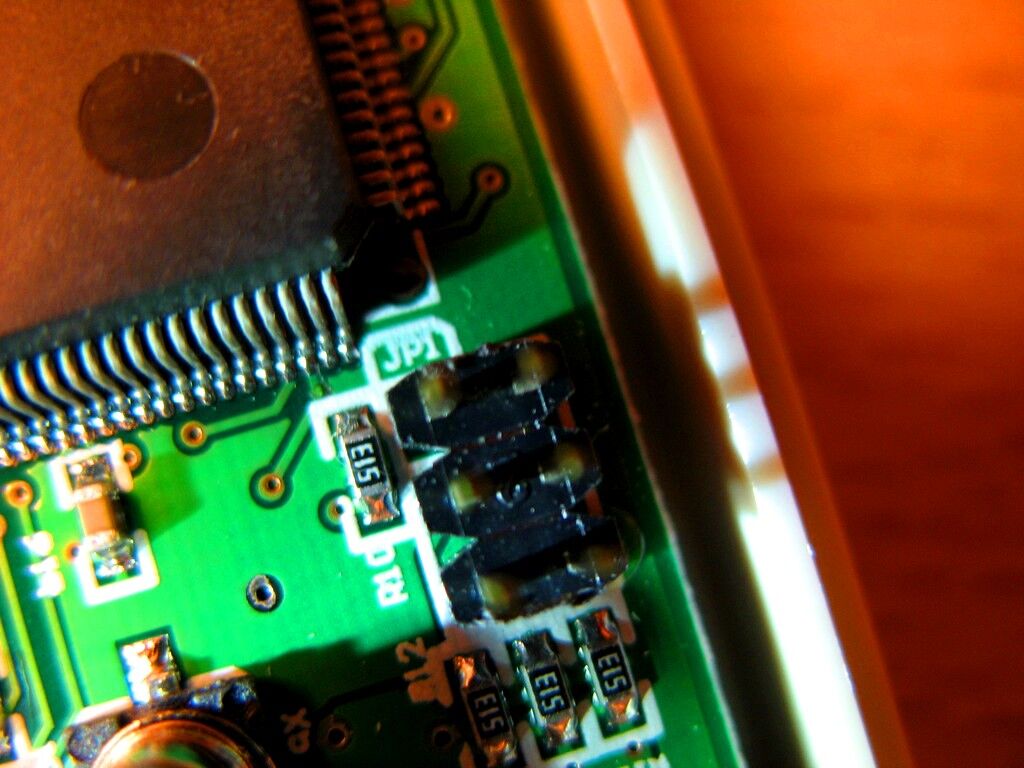

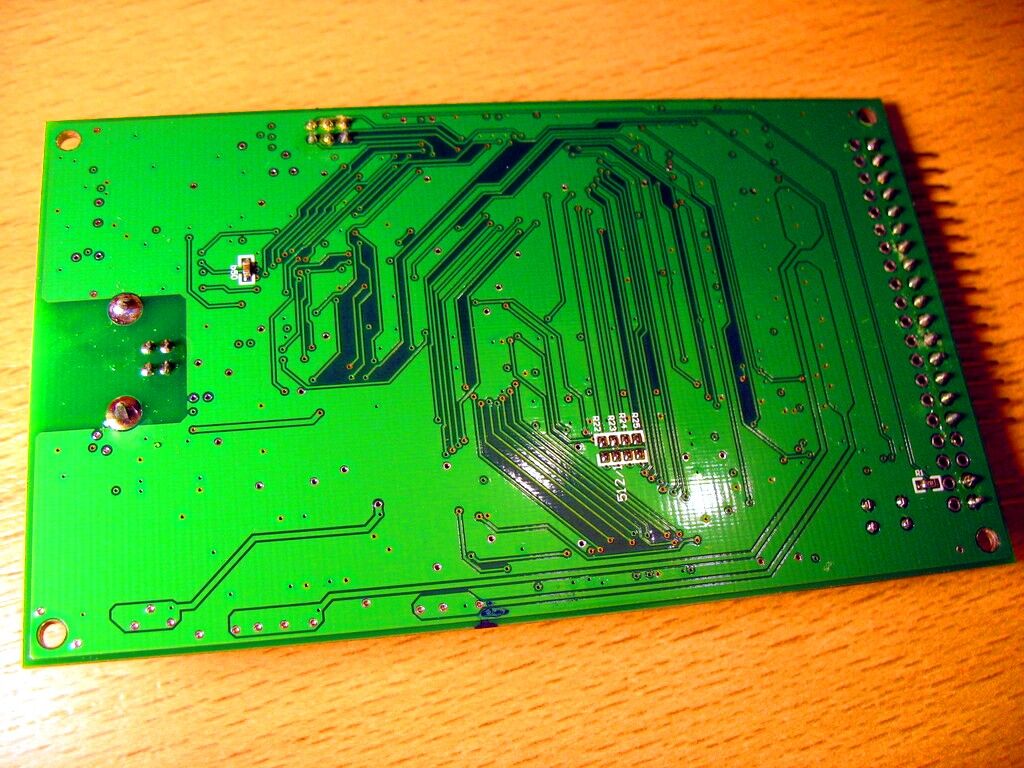

Photos
Protocol
TODO.
