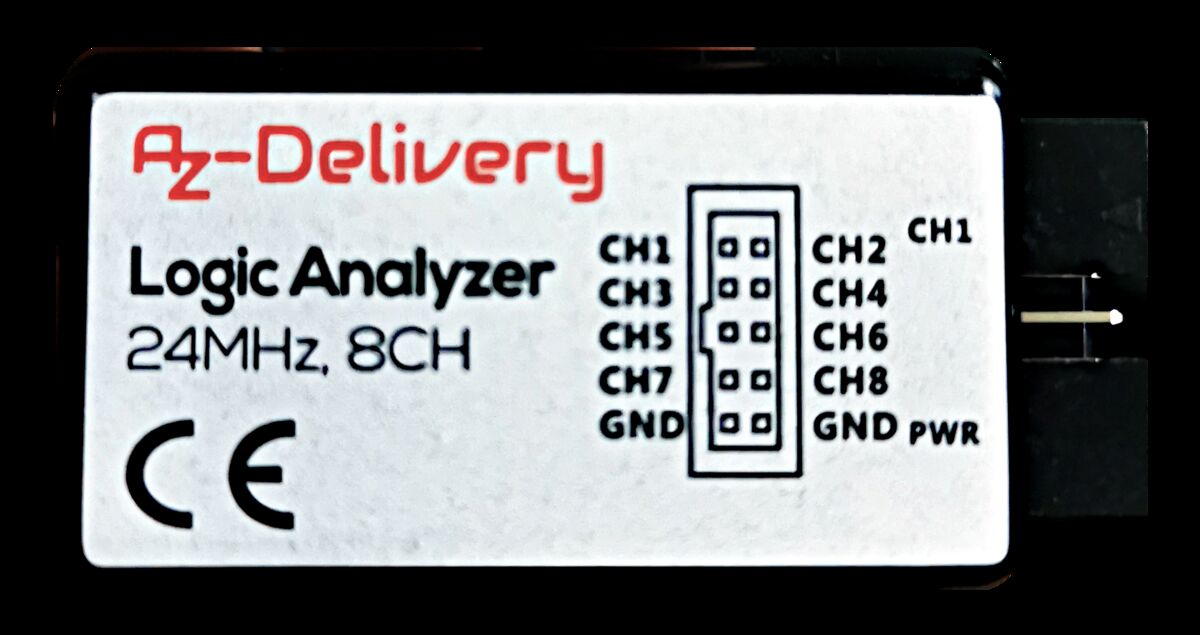

AZDelivery Logic Analyzer

Status Supported
Channels 8
Sample Rate 24MHz
Memory None
Triggers None (Software Only)
Voltage Range 0.0V — 5.25V

The AZ-Delivery Logic Analyzer is a standard USB Cypress FX2 based 8-channel 24 MHz logic analyzer, which has a strong resemblence to VKTECH saleae clone.

In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.

The device uses USB\VID_0925&PID_3881 so is indistinguishable from a Saleae_Logic device

Mine was purchased for roughly 12€ from Amazon.de and it arrived in less than a 24-hour window.

See AZDelivery Logic Analyzer/Info for more details (such as lsusb -vvv output) about the device.

Hardware

  • Main chip: Cypress CY7C68013A-56LTXC (FX2LP in QFN package)
  • Transceiver —
  • 3.3V voltage regulator: 662K (XC6206P332MR)
  • I²C EEPROM: ATMHK101 24C02N
  • Crystal: 24MHz

Photos

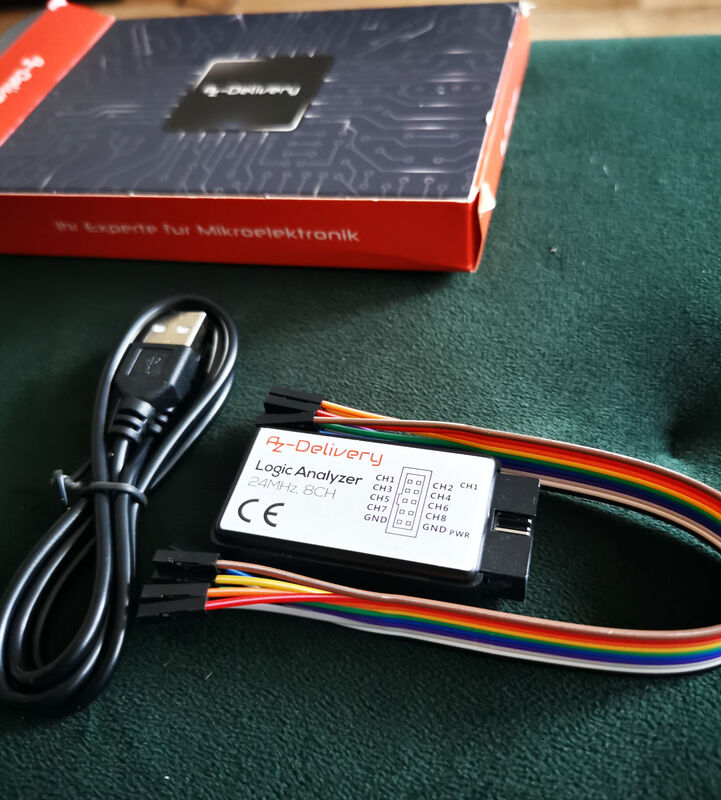

Pakaging and content

Pakaging and content

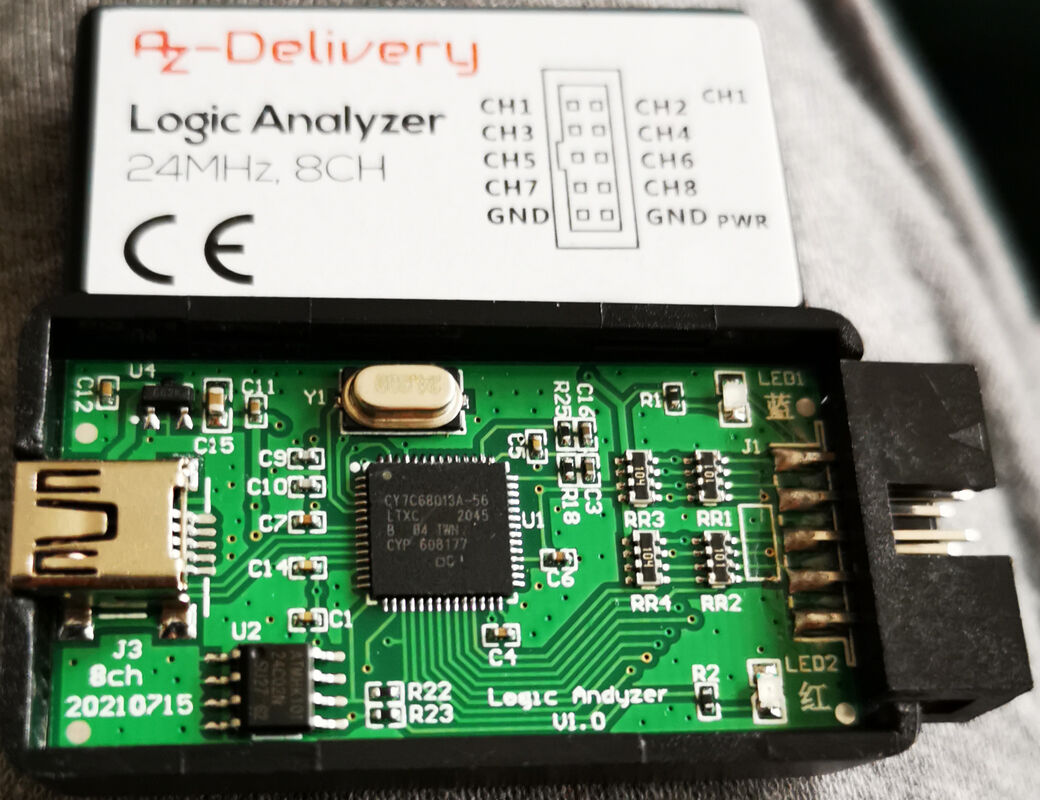

Device, PCB front

Device, PCB front

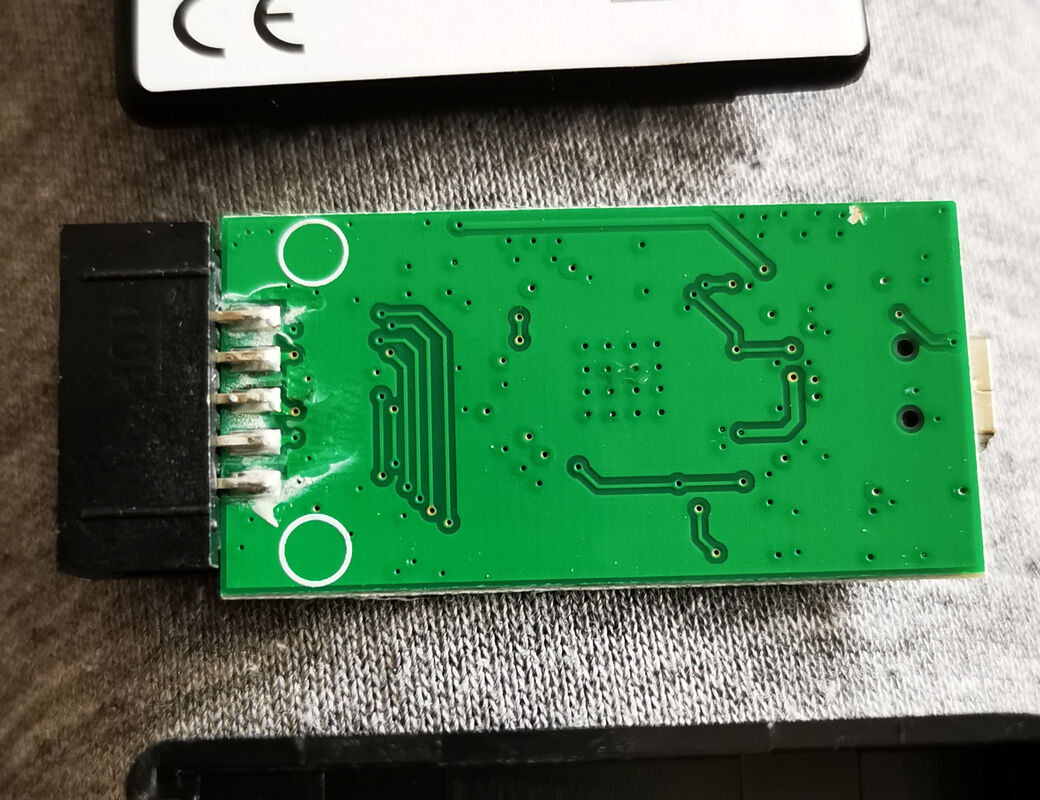

Device, PCB back

Device, PCB back

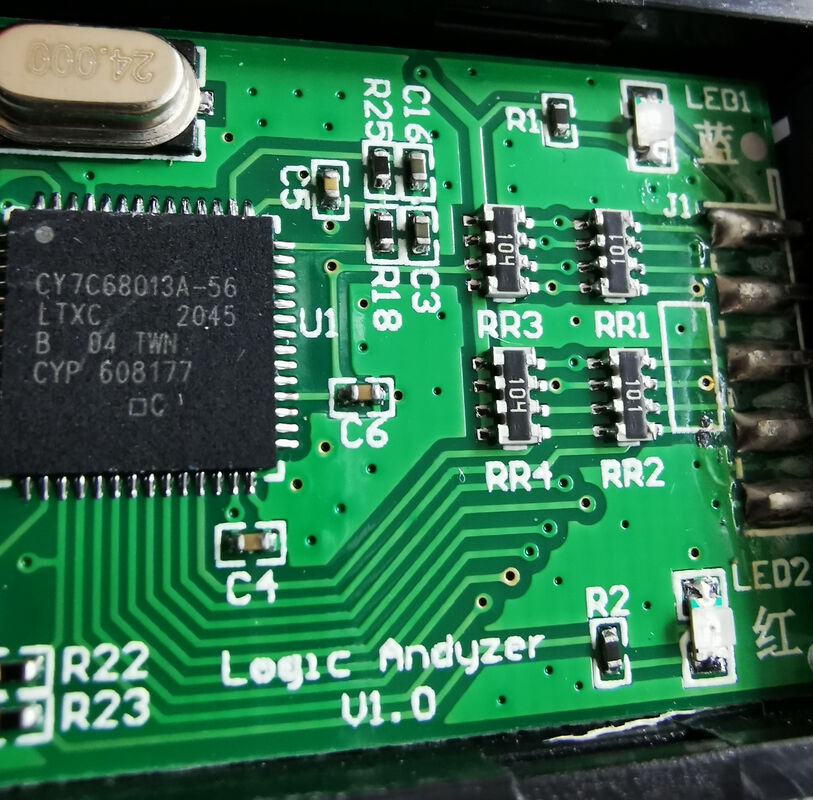

CY7C68013A, closeup

CY7C68013A, closeup
