LabNation SmartScope
| Status | Planned |
| Channels | 8 |
| Sample Rate | 100MHz |
| Memory | 4Msa |
| Triggers | low, high, rising, falling, edge, |
| Voltage Range | Unknown |
| Website | https://www.lab-nation.com |
The LabNation SmartScope is a USB-based mixed-signal oscilloscope (100 MS/s, 45MHz bandwidth), 8-channel logic analyzer (100MHz), arbitrary waveform generator / function generator.
See LabNation SmartScope/Info for some more details (such as lsusb -v output) on the device.
Hardware
- FPGA (3840 logic cells): Xilinx XC6SXL4 (datasheet )
- 64Mbit SDRAM: Alliance Memory AS4C4M16S (datasheet )
- Dual-channel, 8-bit, 100Msps ADC: Maxim MAX19506 (datasheet )
- 8-bit microcontroller with full-speed USB: Microchip PIC18F14K50 (datasheet )
- Single-pole normally-closed SOP OptoMOS relay: Ixys CPC1125N (datasheet )
- 250MHz, rail-to-rail I/O, CMOS dual opamp: Texas Instruments OPA2354 (datasheet )
- Quad buffer/line driver with 3-state outputs: Diodes Incorporated 74LVC126A (datasheet )
- 0480000 OCP1332 1725
- 4x CGA4V
- S03A
Photos
Package, top
Package, bottom

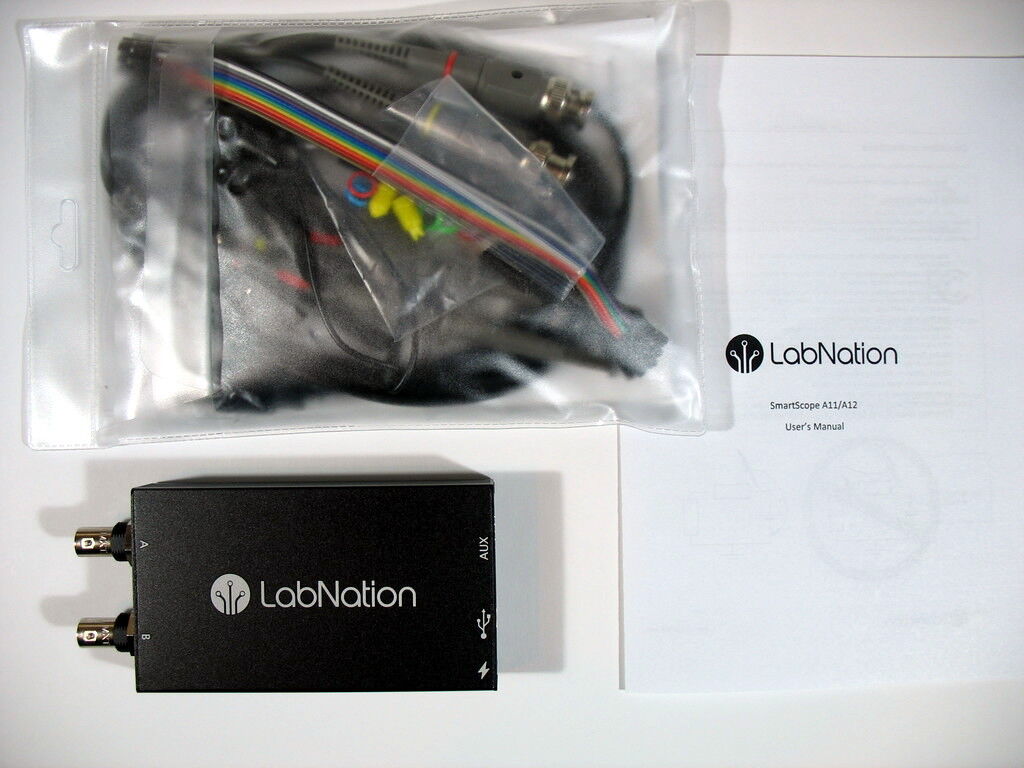

Package, contents

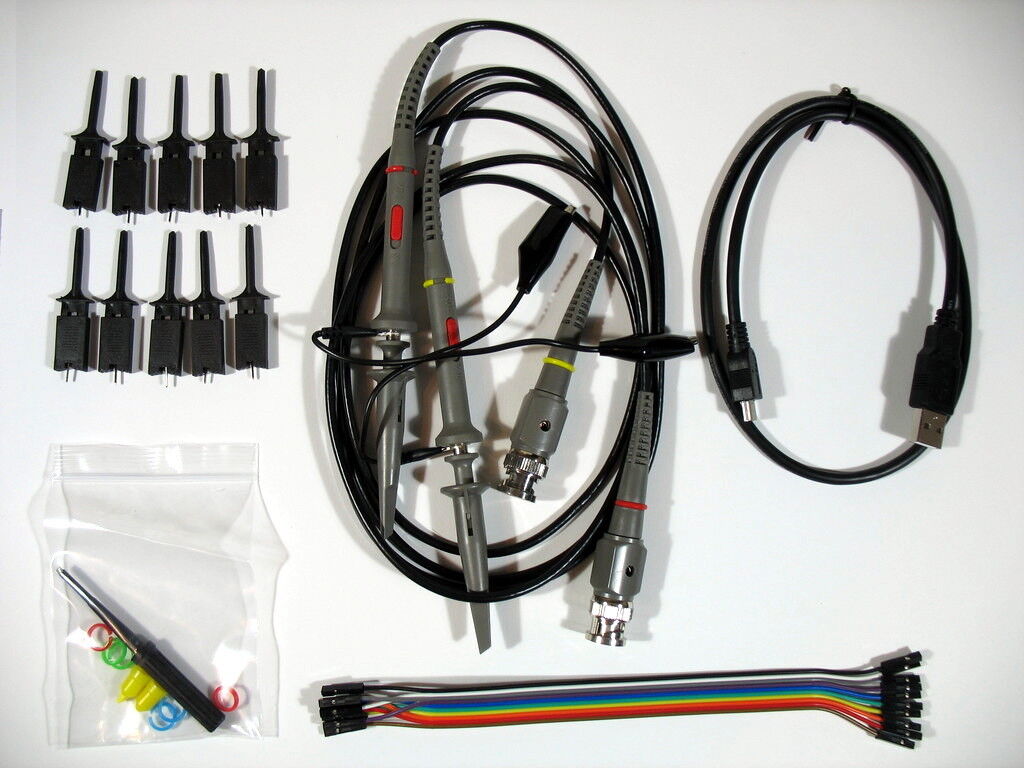

Cables and probes

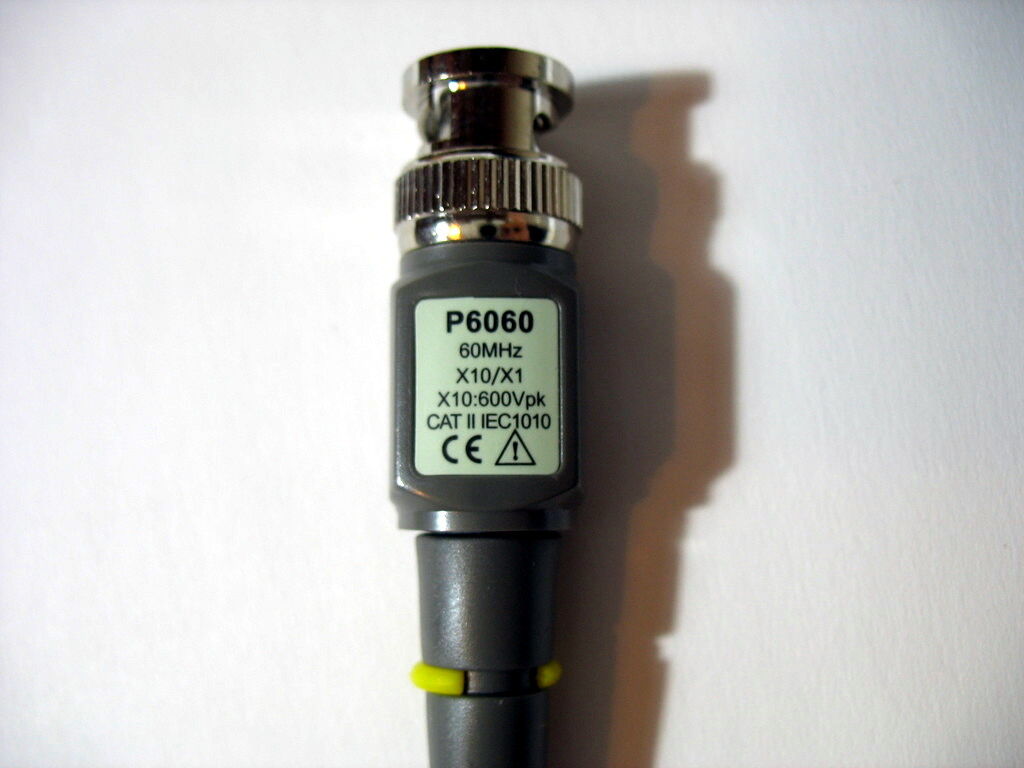

P6060 probe

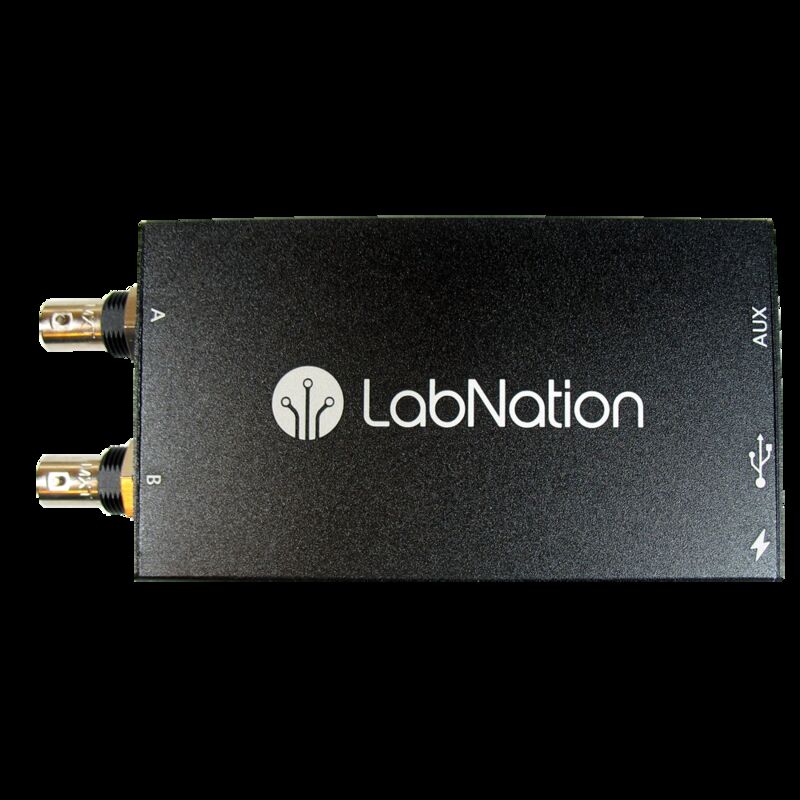

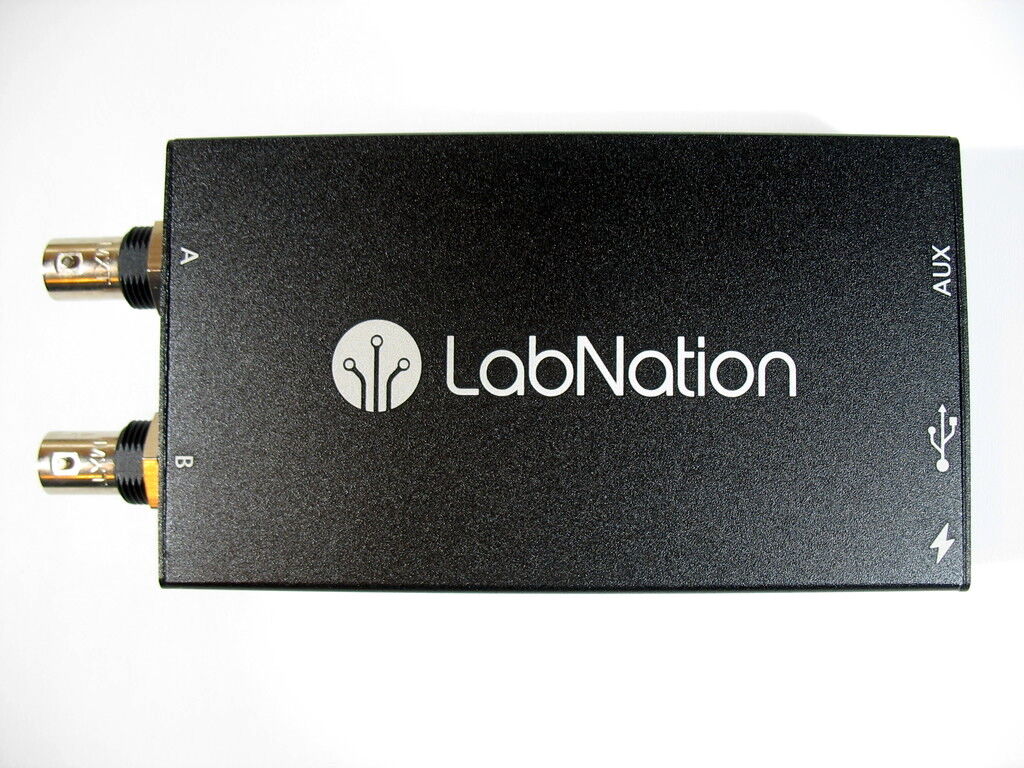

Device, top

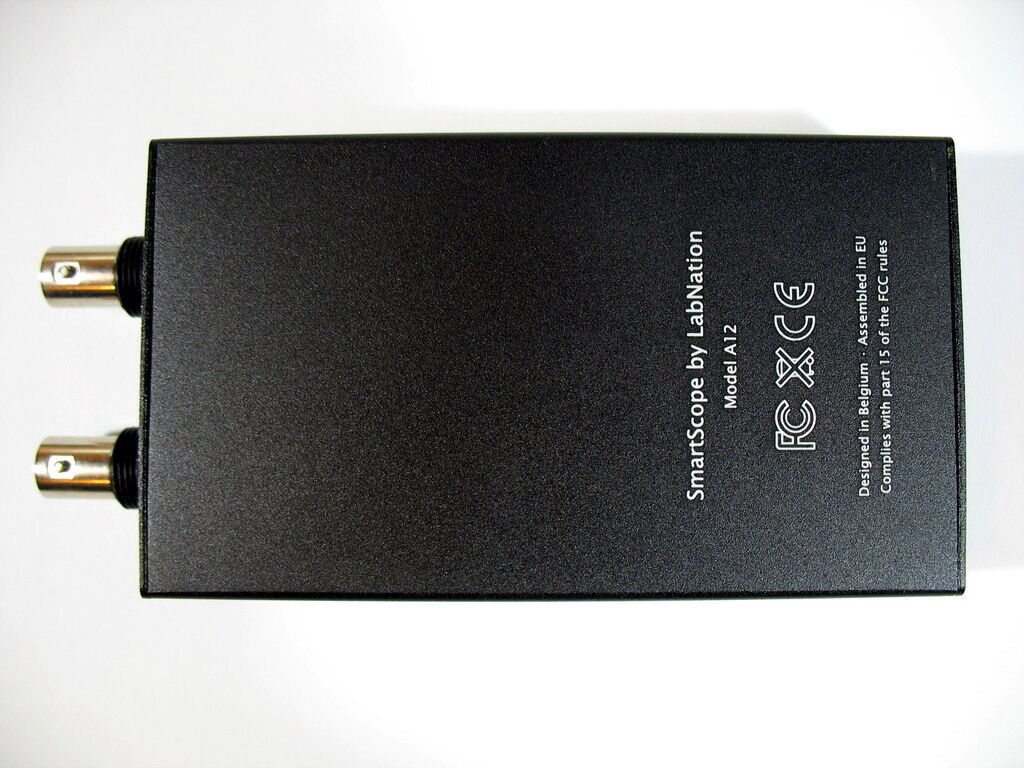

Device, bottom

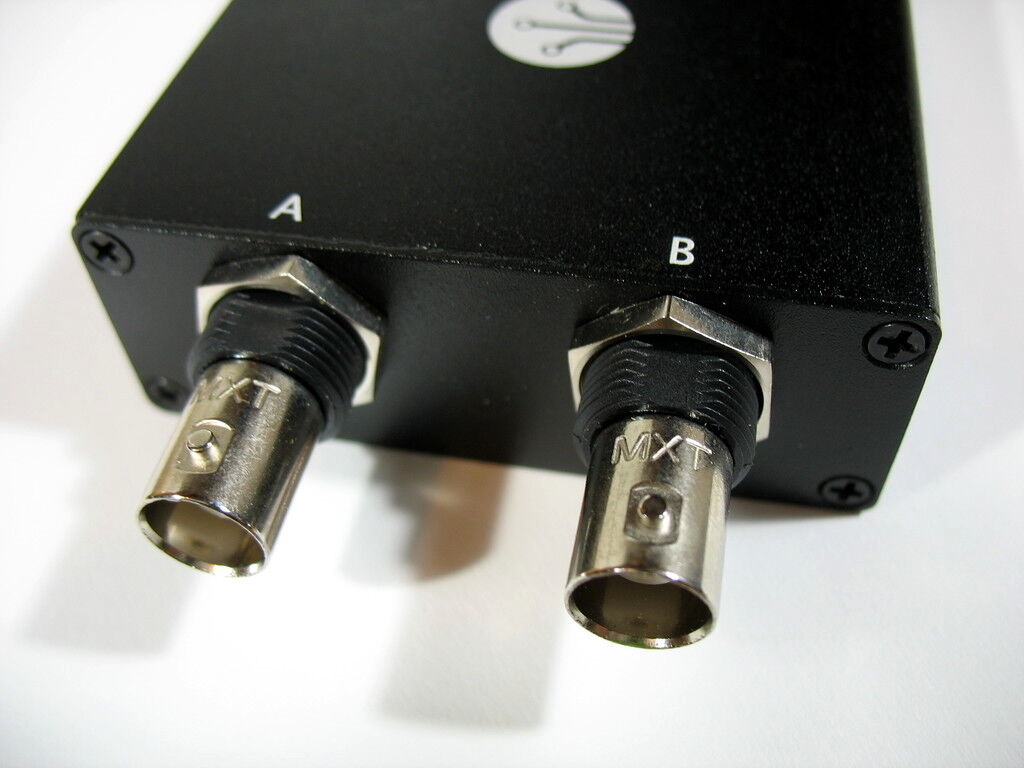

Probe connector

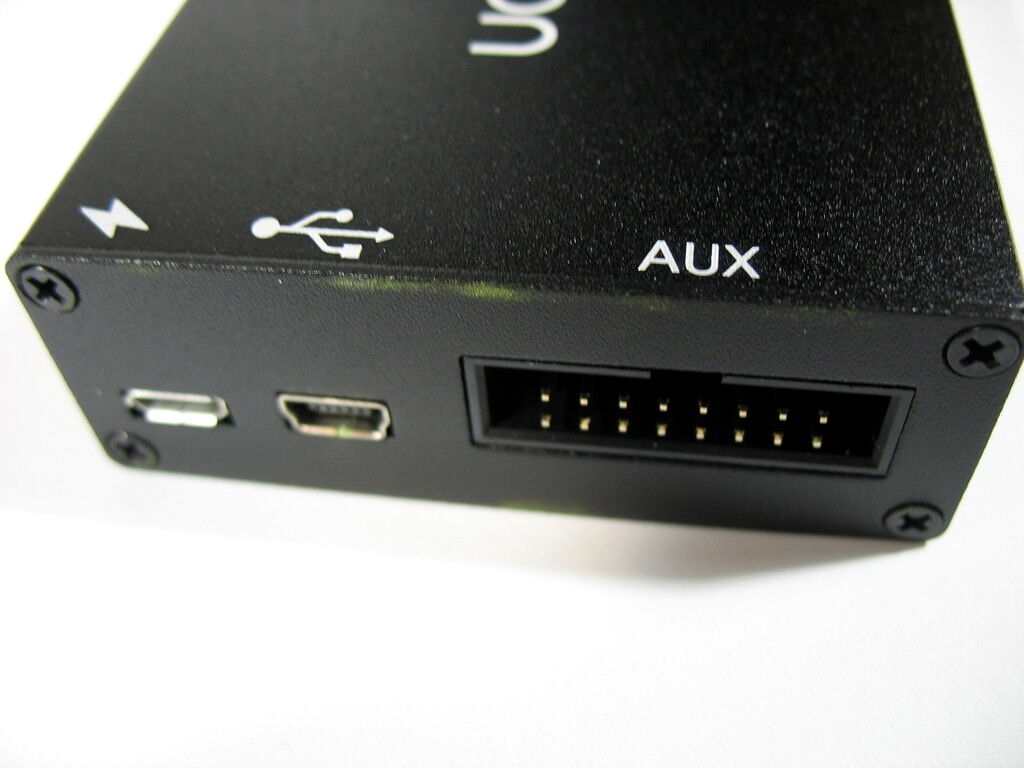

Misc connectors

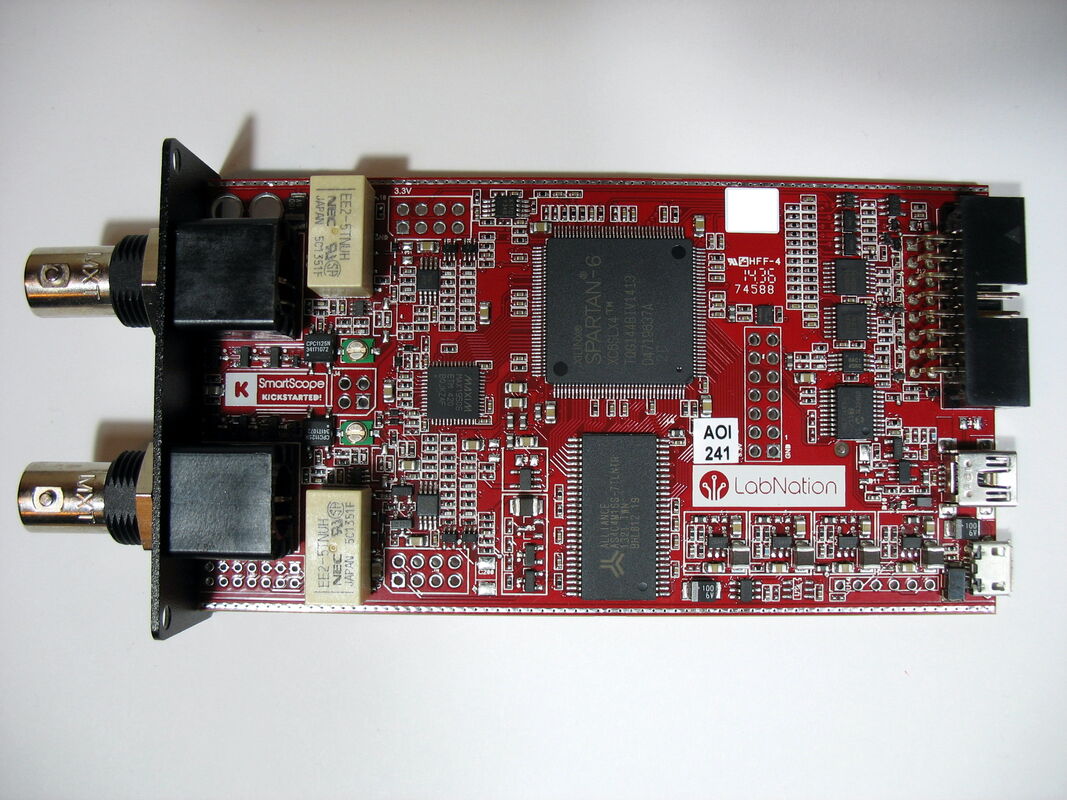

PCB, top

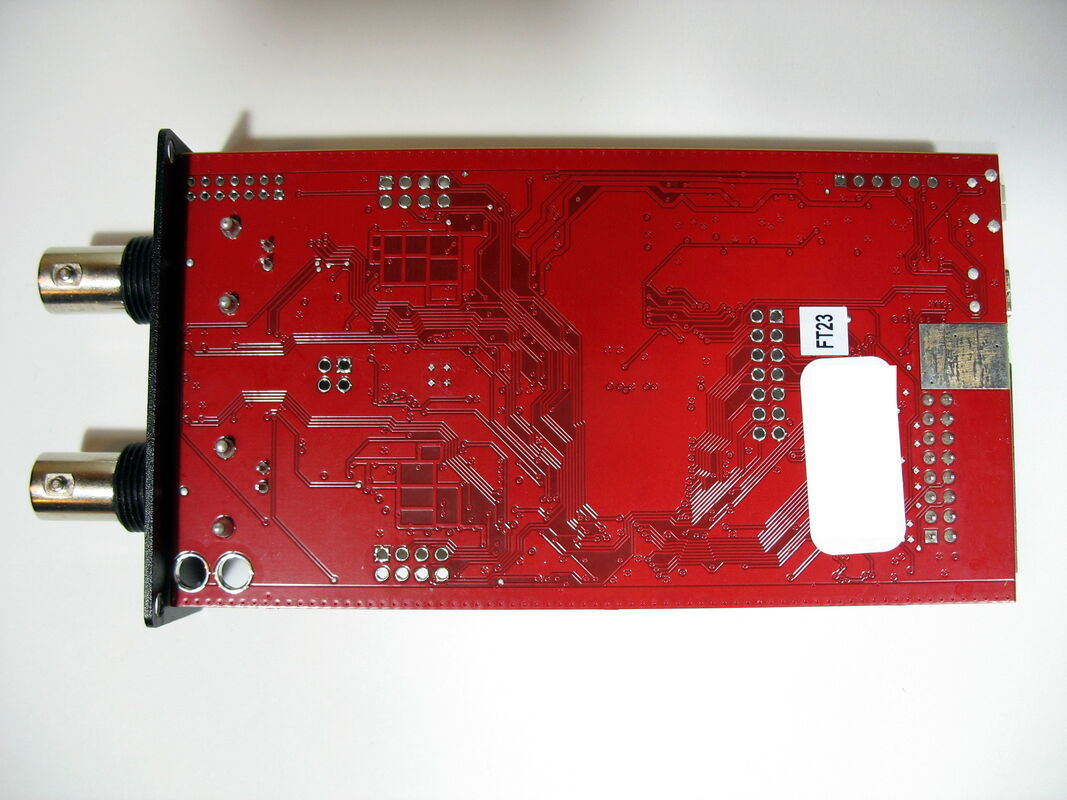

PCB, bottom

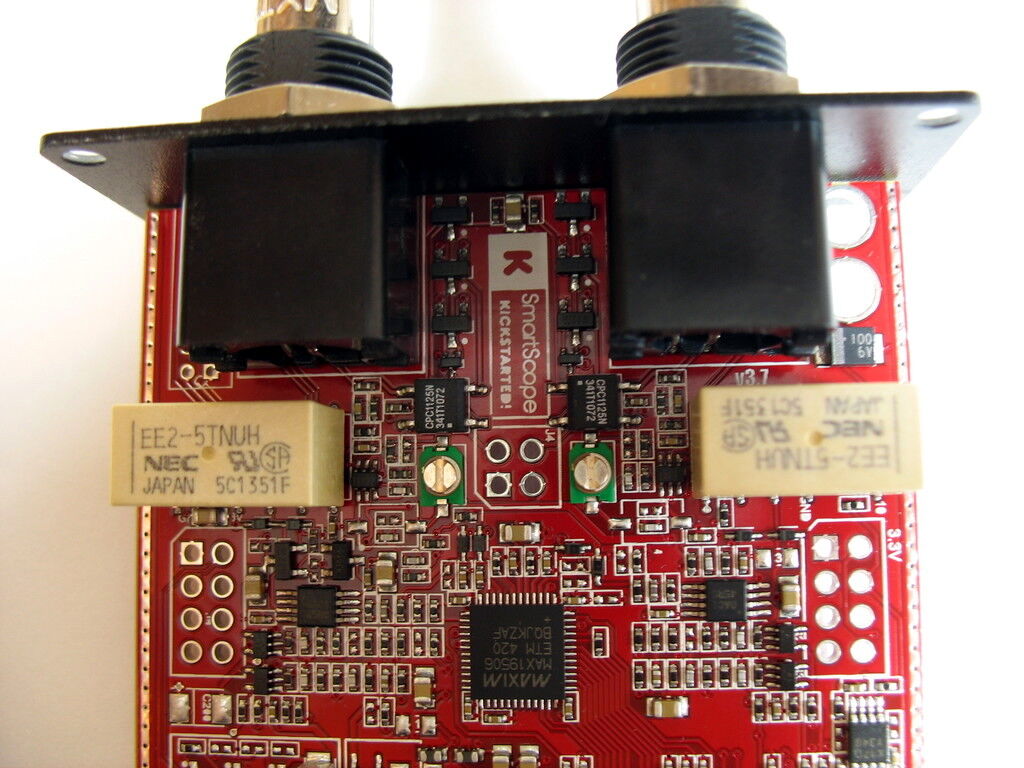

Analog frontend

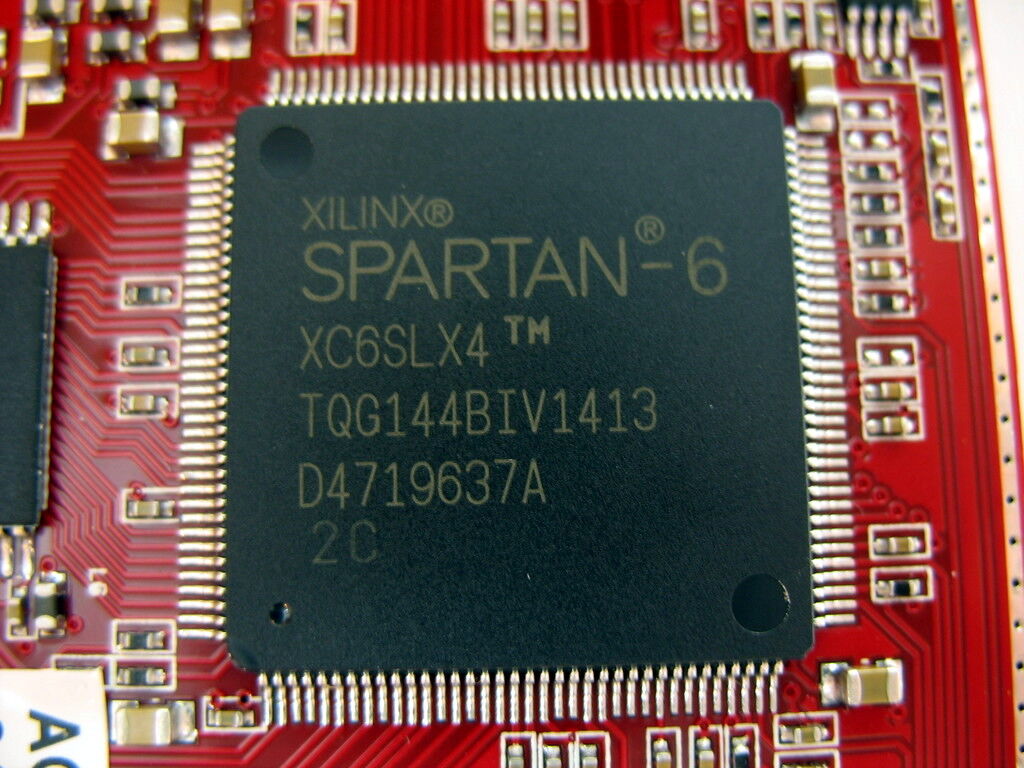

Xilinx XC6SLX4

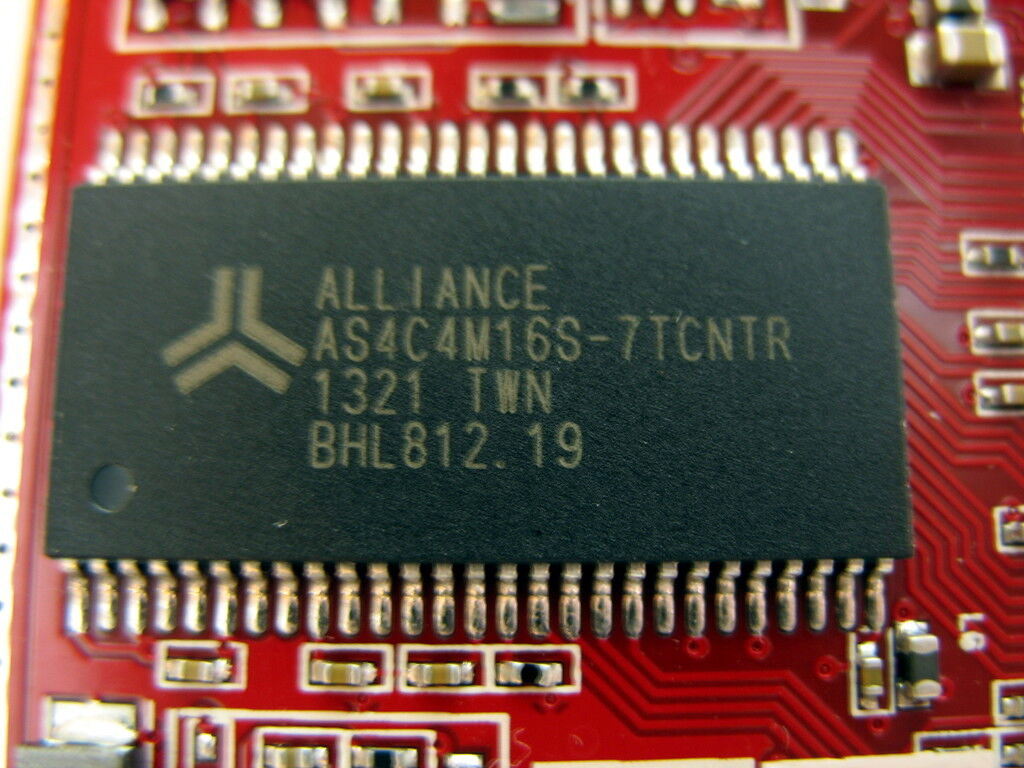

Alliance AS4C4M16S

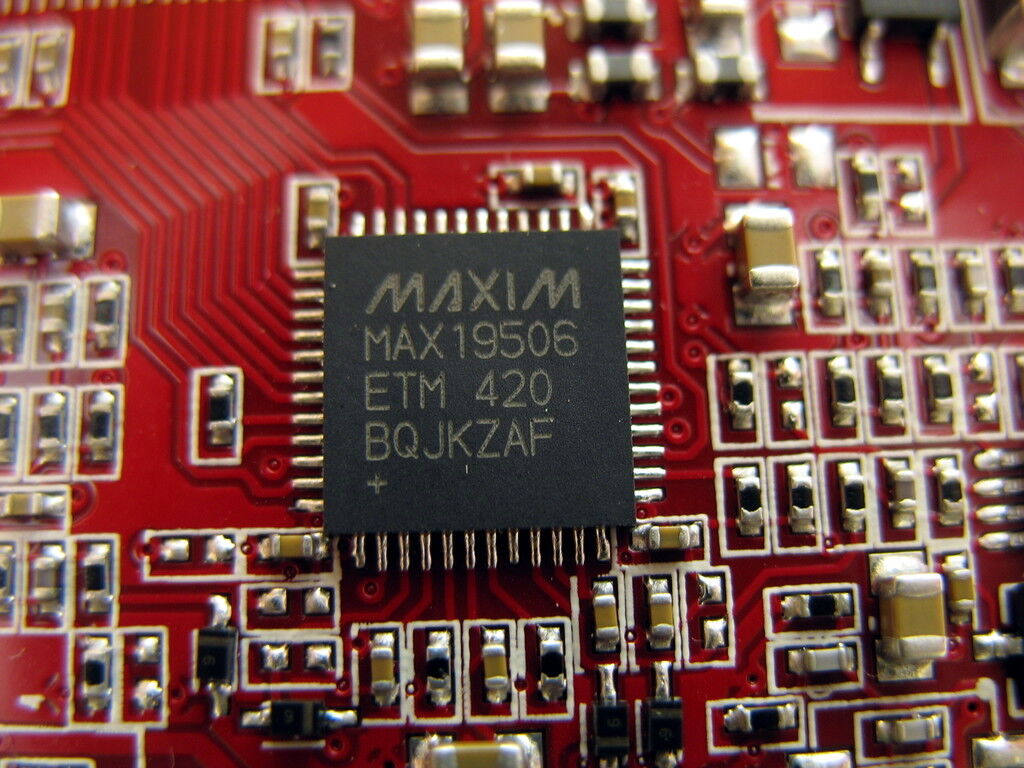

Maxim MAX19506

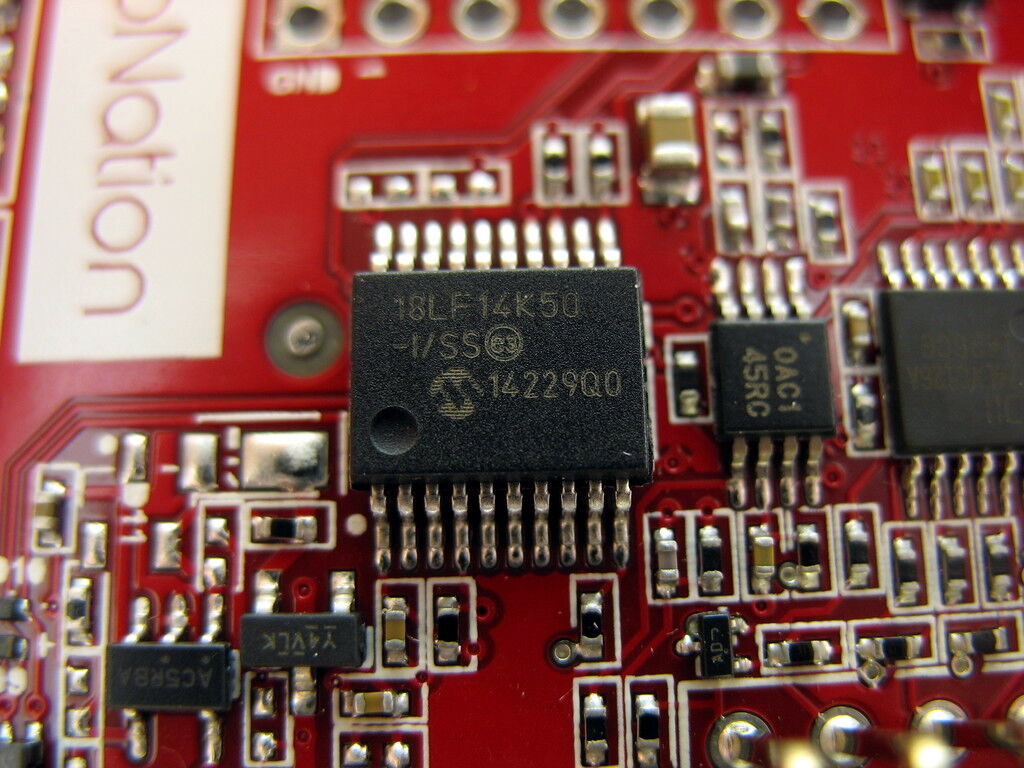

Microchip 18LF14K50

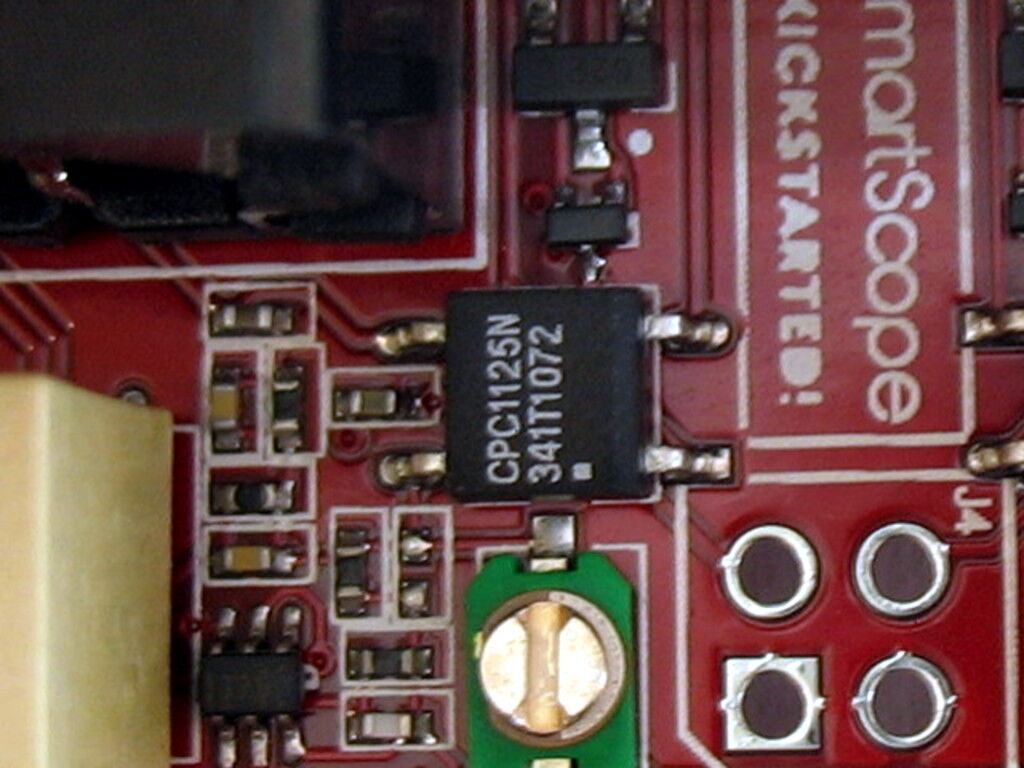

Ixys CPC1125N

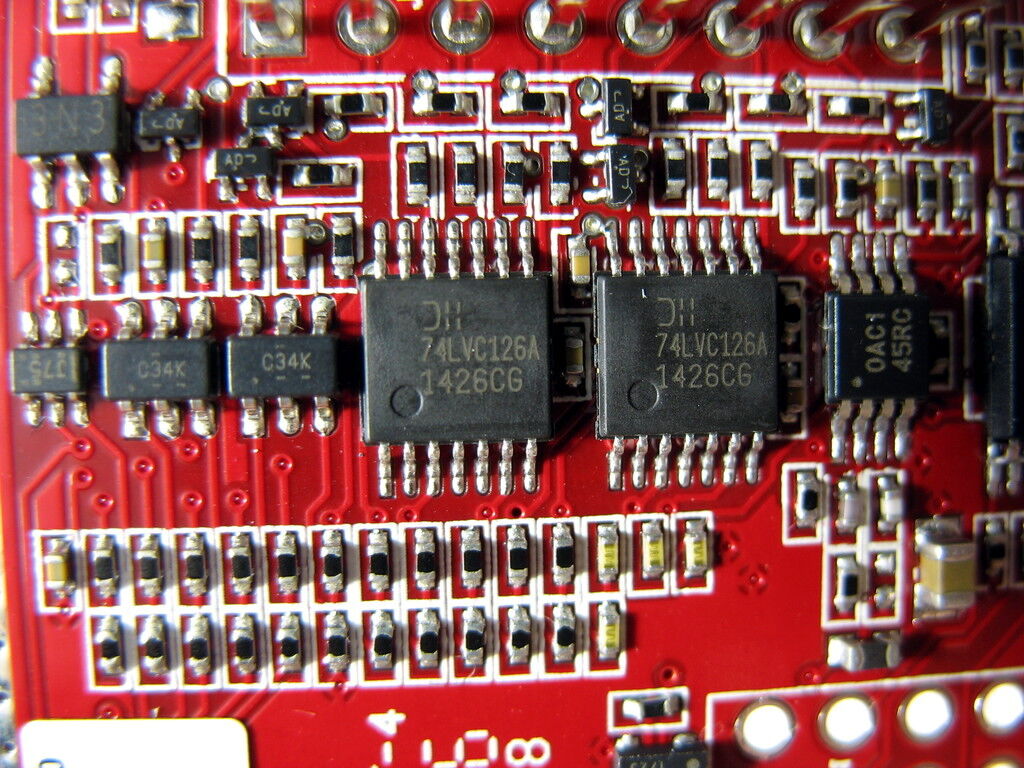

74LVC126A

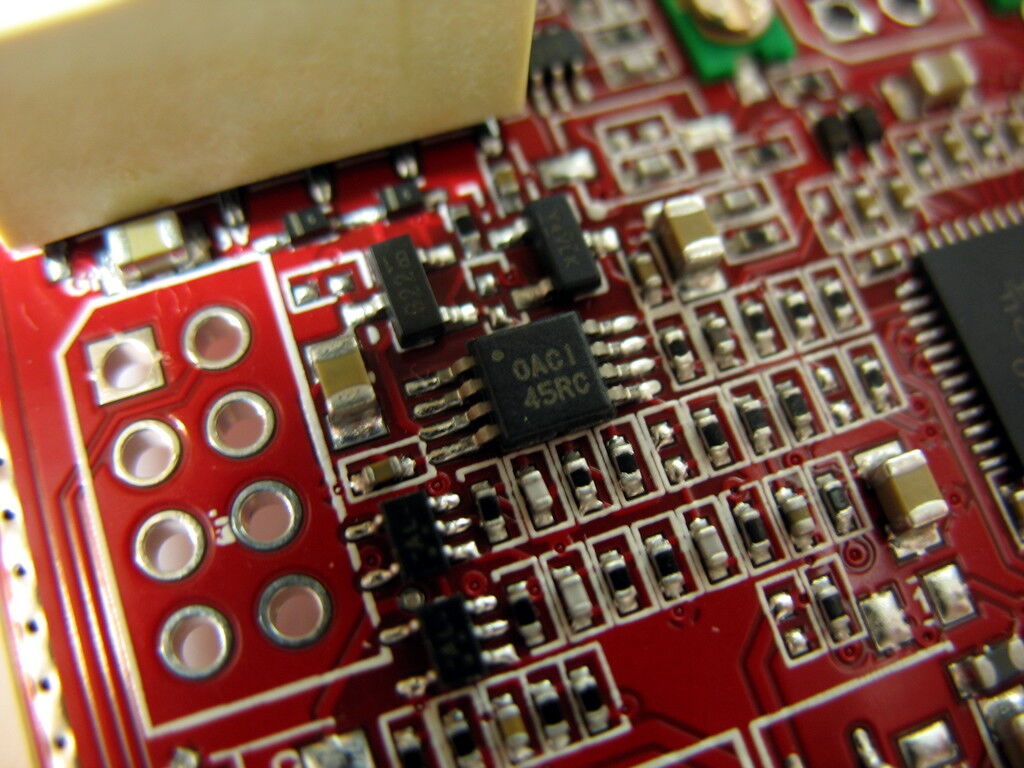

TI OPA2354
Protocol
Progress
Detection and bitstream loading implemented in libsigrok driver. Scope init and acquisition WIP in python test code. See https://github.com/karlp/libsigrok/tree/devel/labnation
