MiniLA
| Status | Planned |
| Channels | 32 |
| Sample Rate | 100MHz |
| Memory | 128Kb/ch |
| Triggers | low, high, rising, falling, don't care, |
| Voltage Range | Unknown |
| Website | http://minila.sourceforge.net |

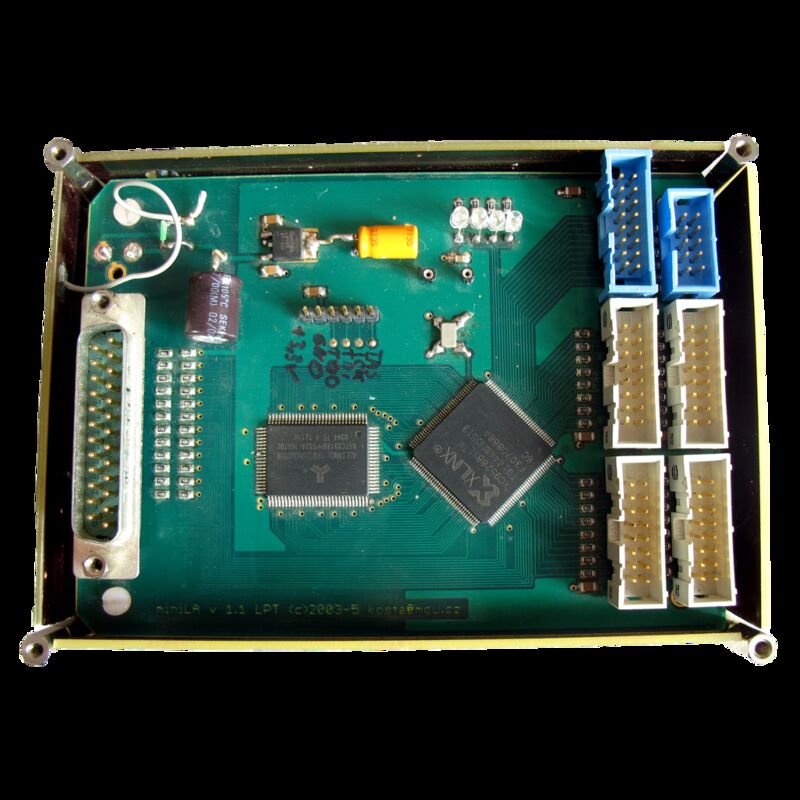

The MiniLA is a parallel port based, 32-channel logic analyzer with up to 100MHz sampling rate.
It is an open-hardware / open-source design.
Hardware
TODO.
Photos
TODO.
Protocol
TODO.
