Noname LHT00SU1

Status Supported
Channels 8 + 1
Sample Rate 8ch @ 24MHz, 8+1ch @ 12MHz
Memory None
Triggers None (Software Only)
Voltage Range Unknown
Website https://www.aliexpress.com/wholesale?catId=0&initiative_id=SB_20170810062635&SearchText=lht00su1

The Noname LHT00SU1 is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate, with 1 additional analog channel (theoretically 2, but only one of them can be used at a time; 3MHz analog bandwidth).

It is a clone of the CWAV USBee AX-Pro.

In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.

Note: fx2lafw currently doesn't support switching between the two possible analog channels, 1ACH will be used unconditionally.

See Noname LHT00SU1/Info for some more details (such as lsusb -v output) on the device.

Hardware

There's a jumper on the PCB which write-protects the I²C EEPROM when set (it ships in that state) by keeping the WP pin at 3.3V.

Photos

LTH00SU1-V5.0:

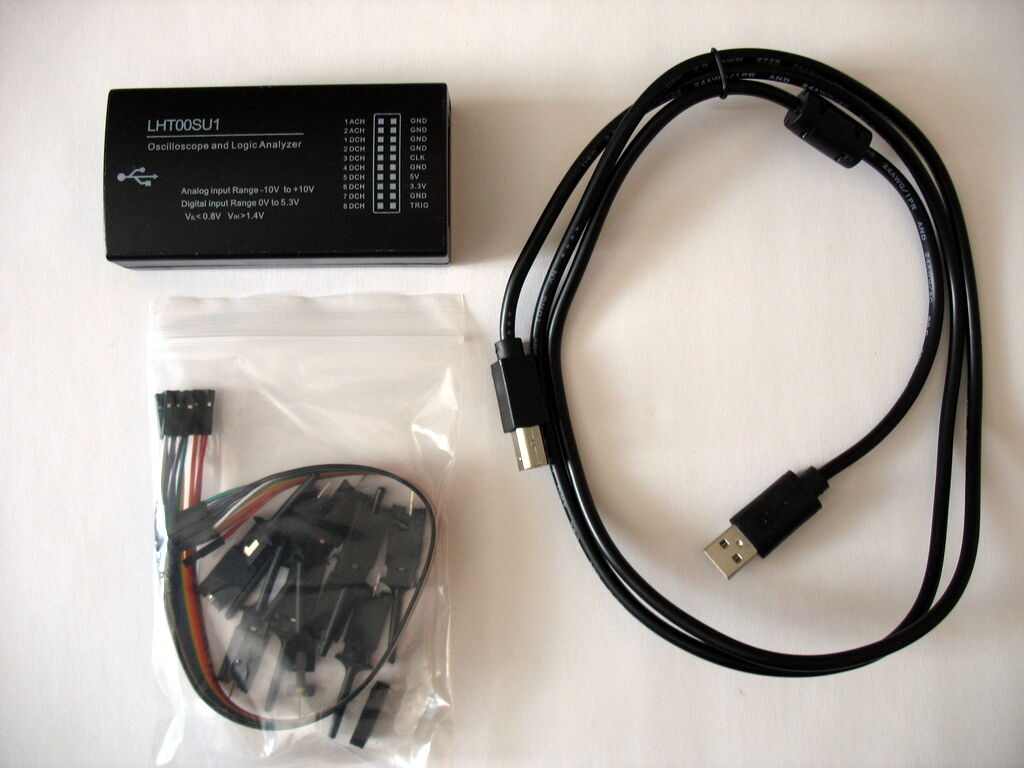

Package contents

Package contents

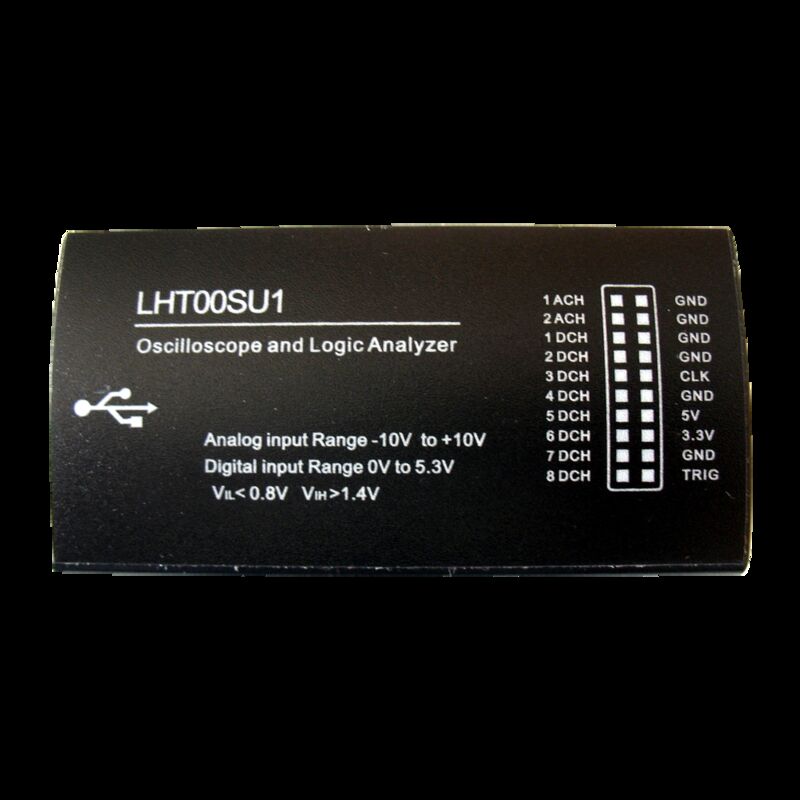

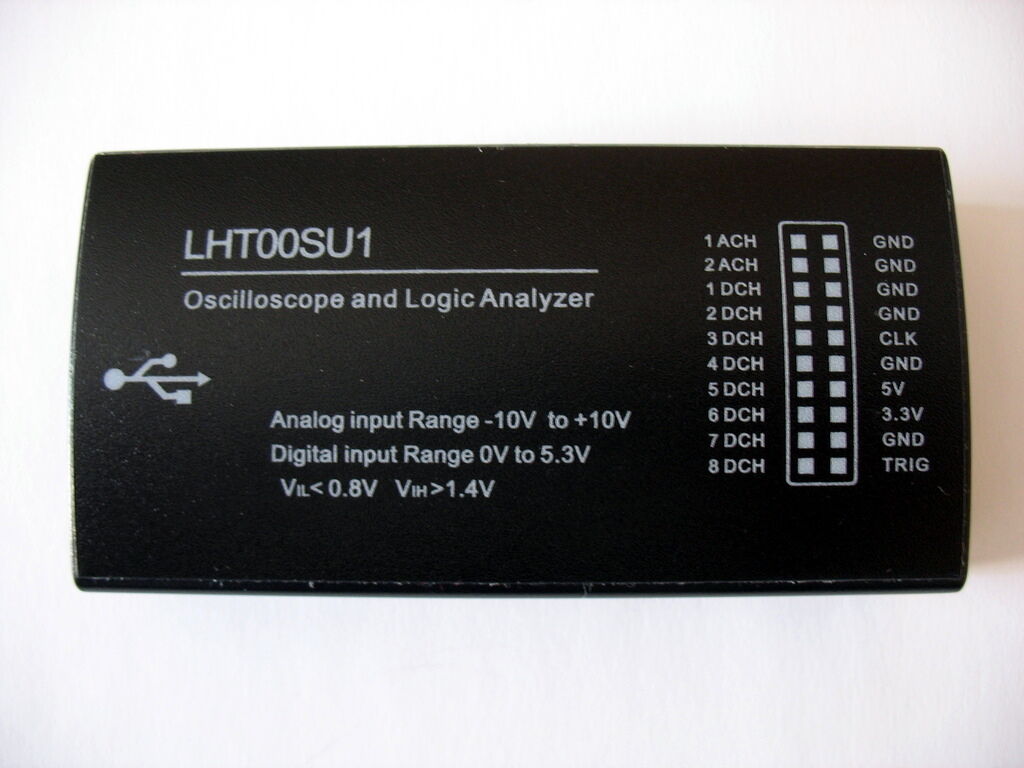

Device, top

Device, top

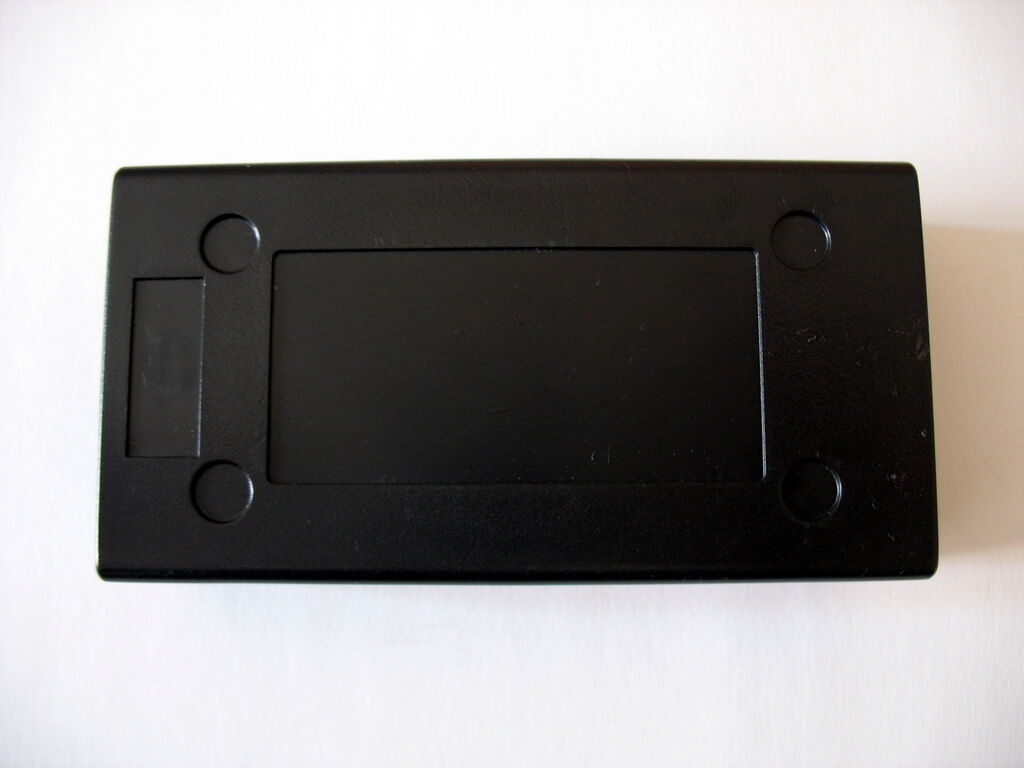

Device, bottom

Device, bottom

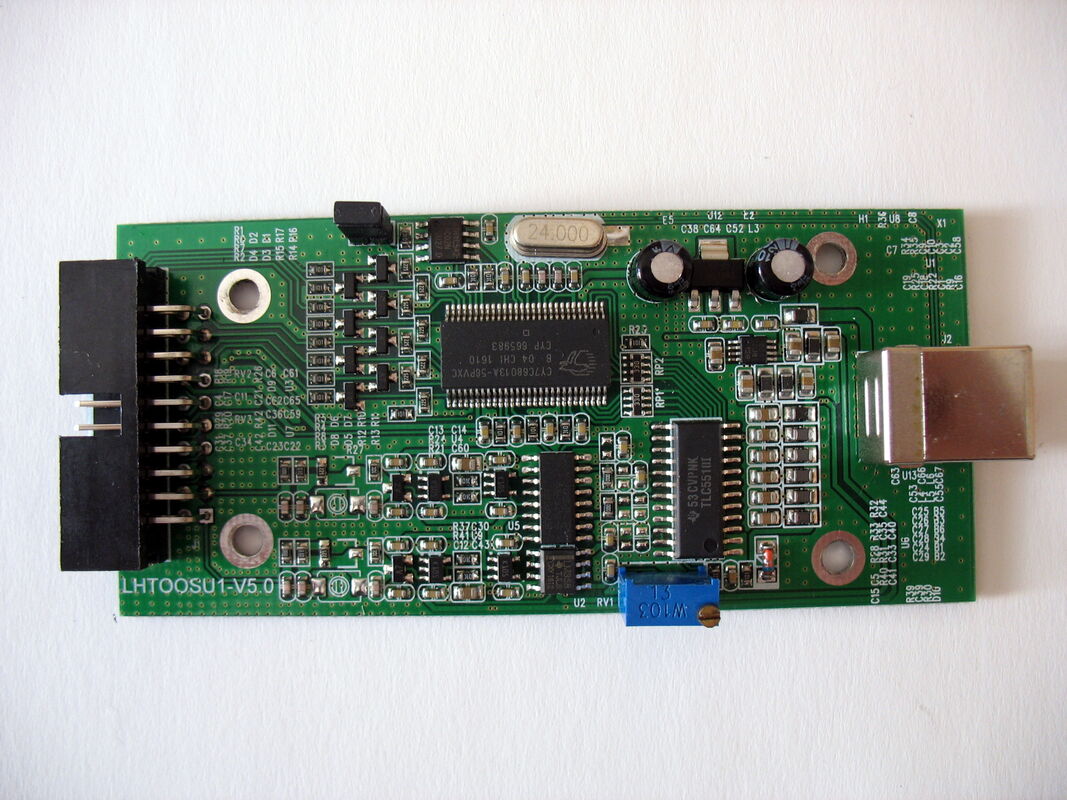

PCB, top

PCB, top

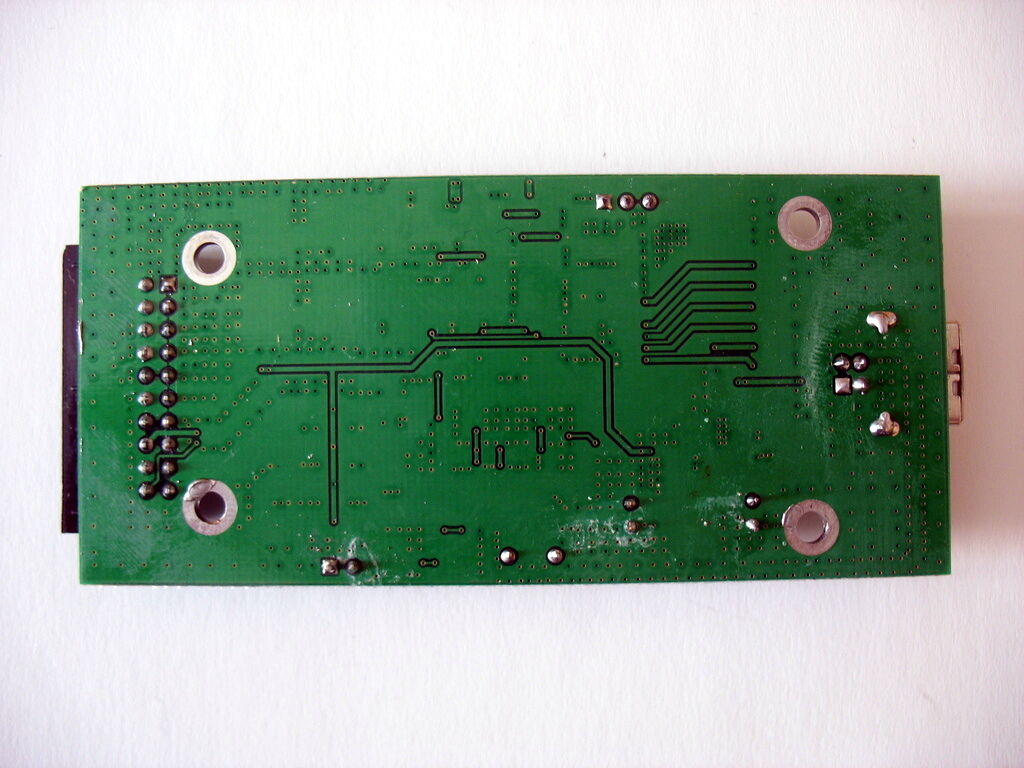

PCB, bottom

PCB, bottom

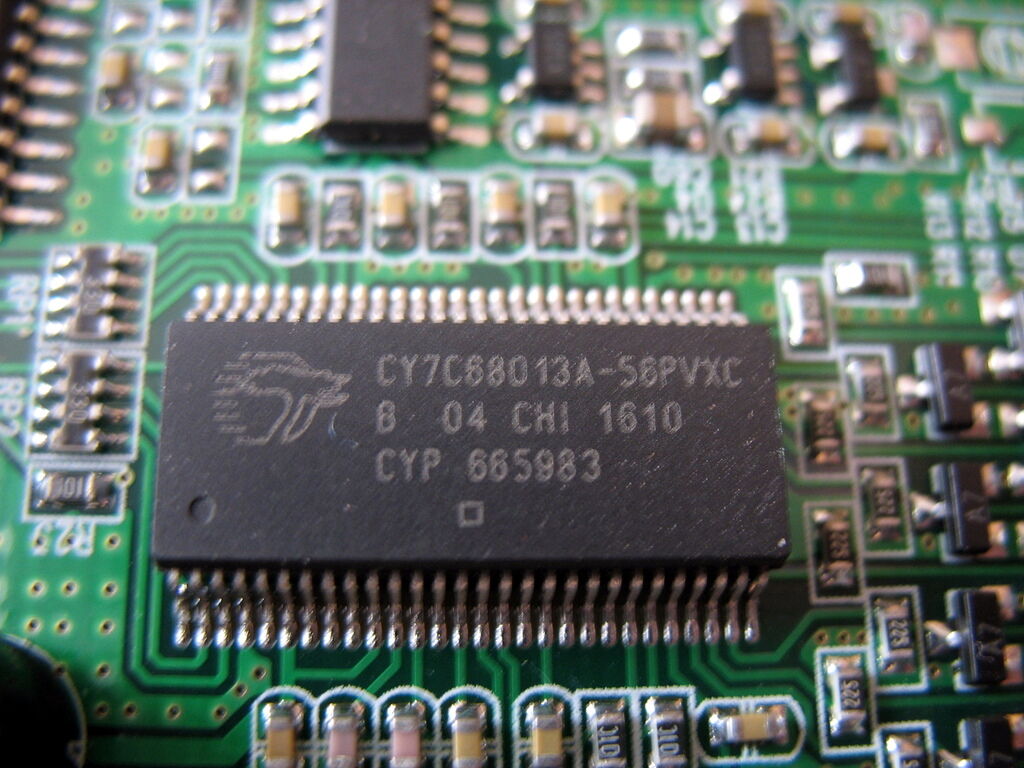

Cypress FX2

Cypress FX2

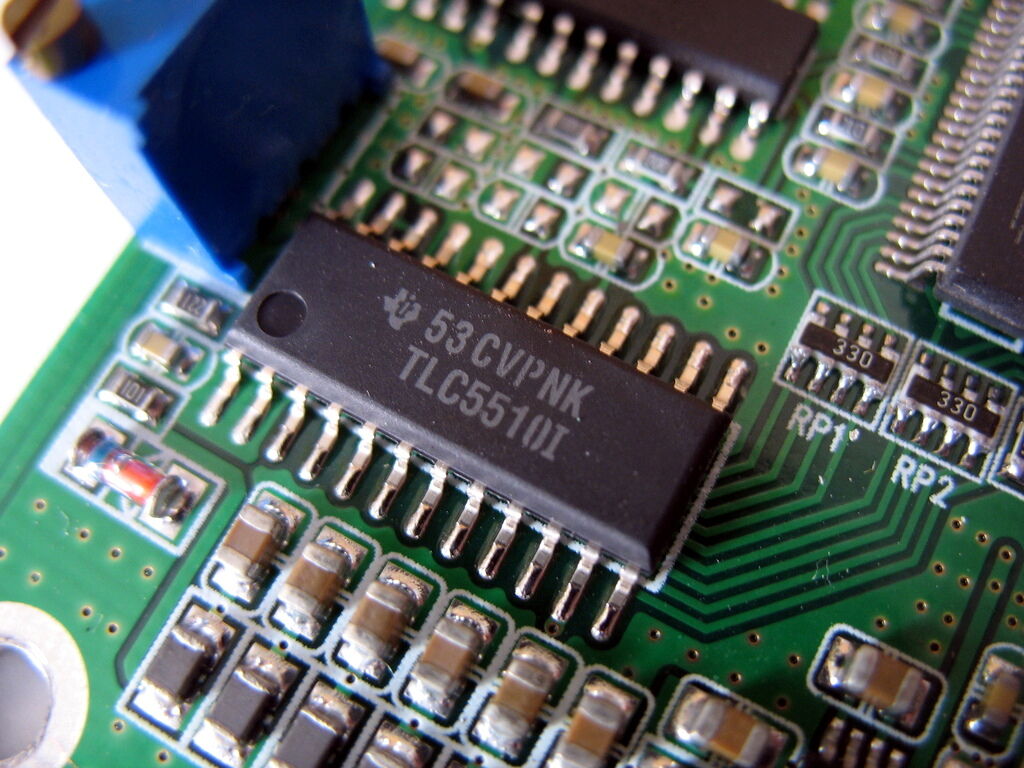

TLC5510I

TLC5510I

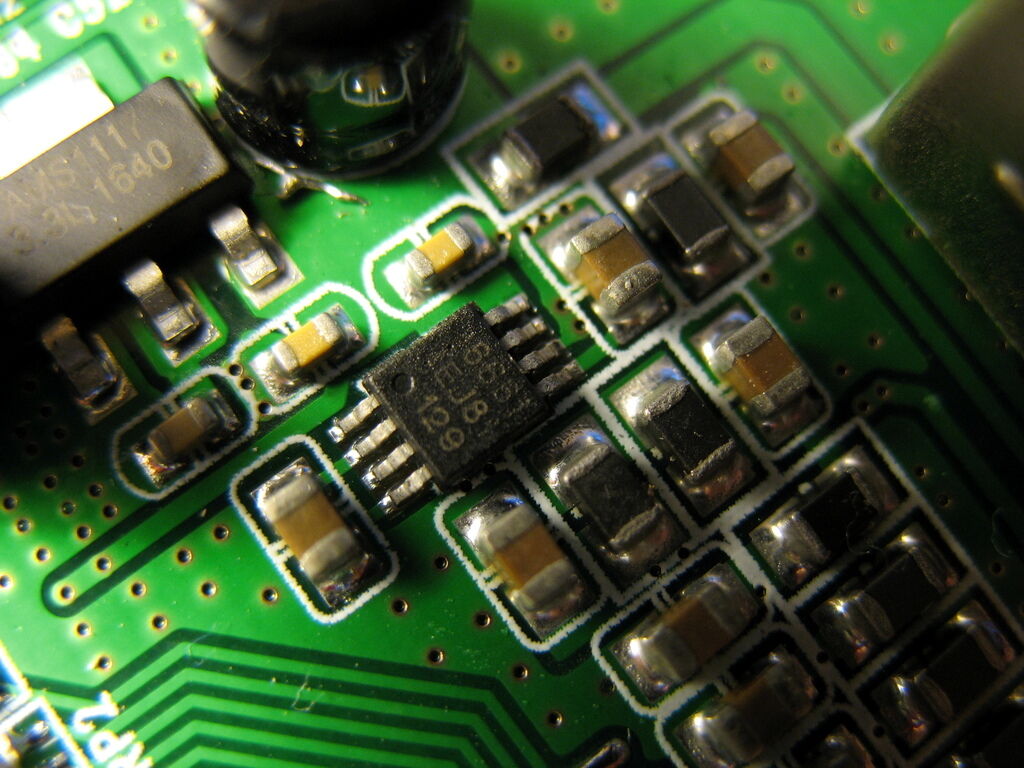

Unknown SO8

Unknown SO8

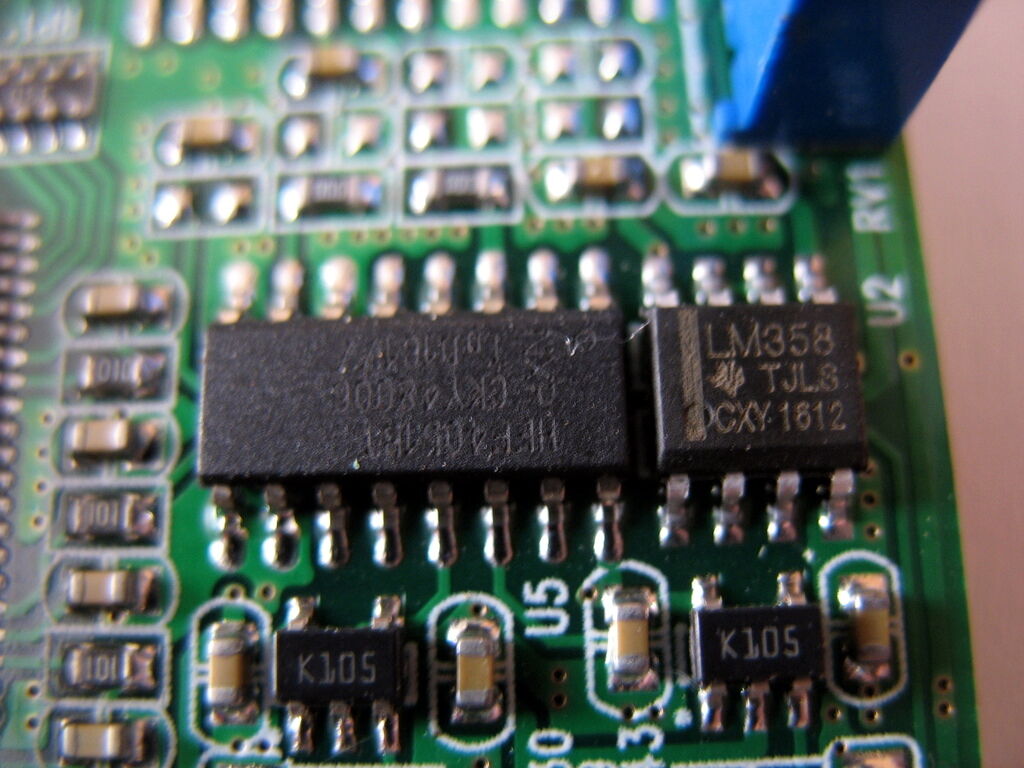

LM358

LM358

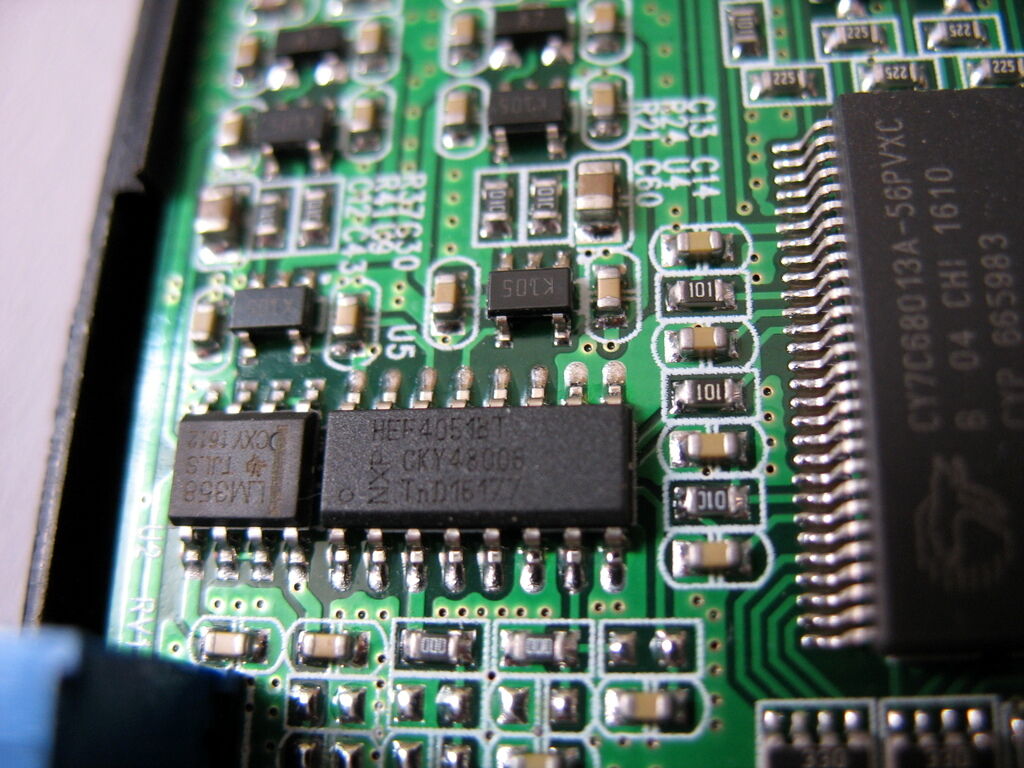

HEF4051BT

HEF4051BT

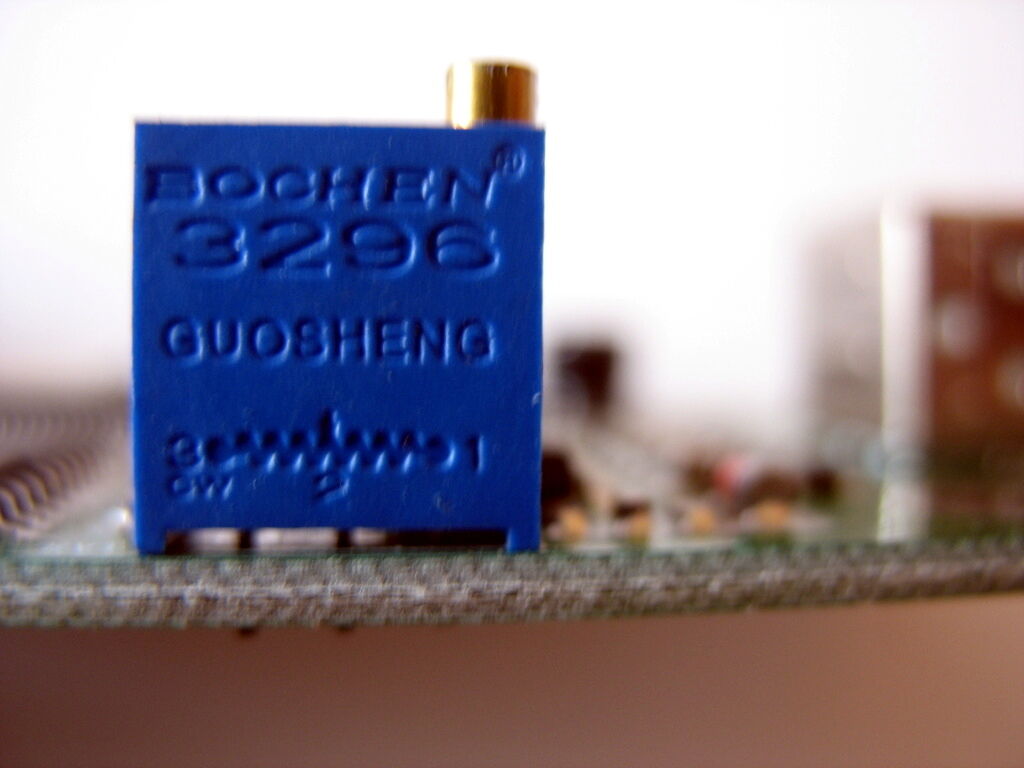

Bochen 3296

Bochen 3296

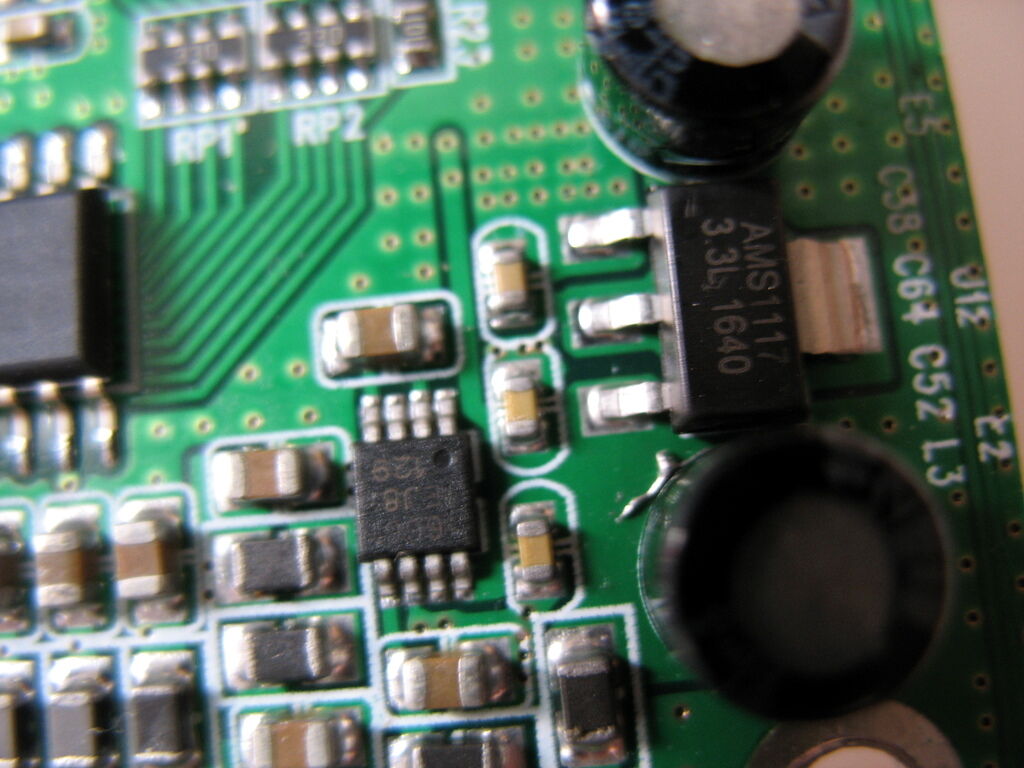

AMS1117-3.3

AMS1117-3.3

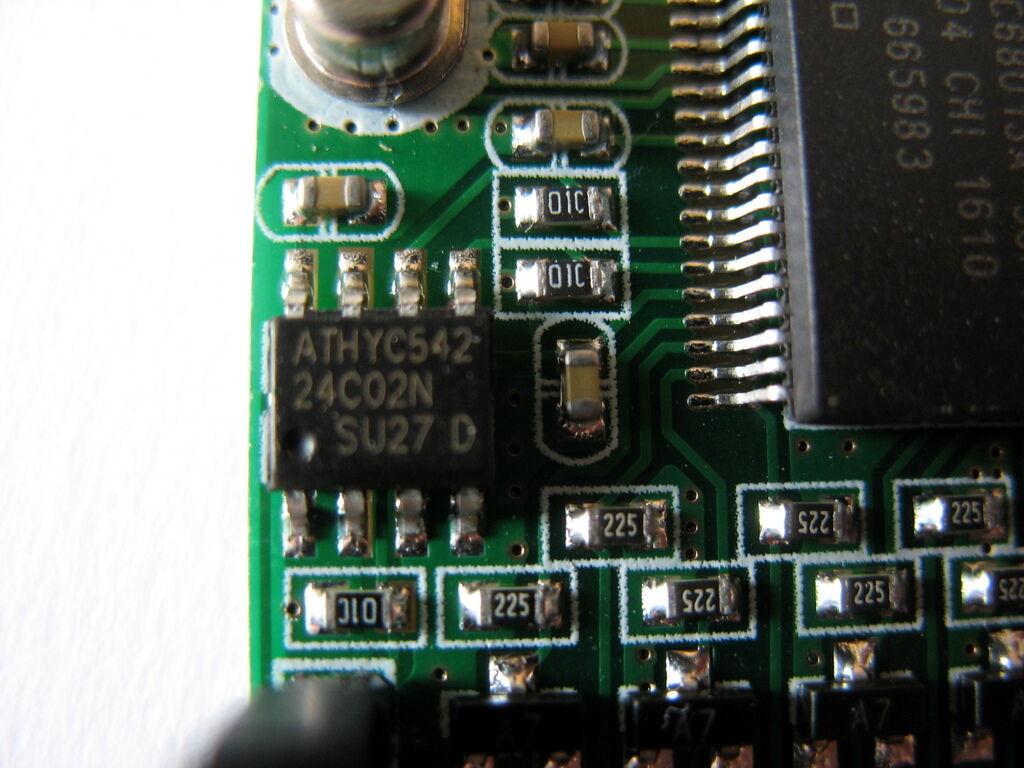

24C02N

24C02N

LINSOU21-V1.3:

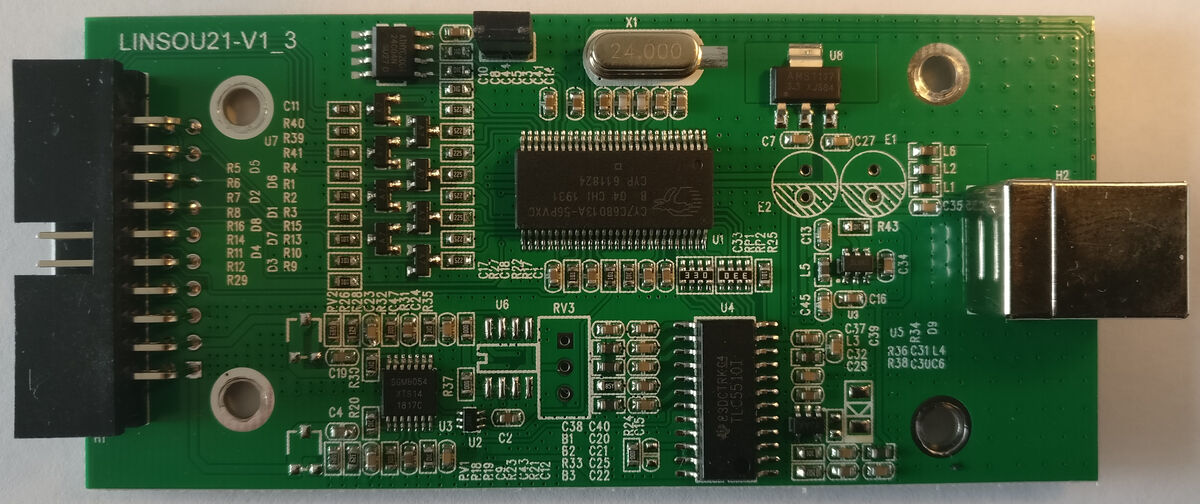

PCB, top

PCB, top

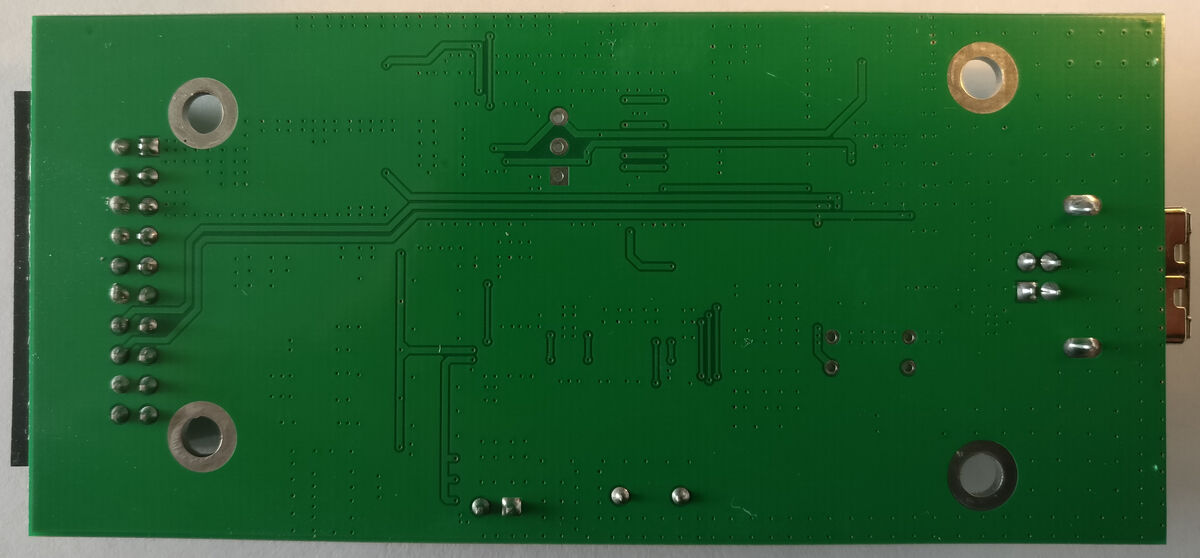

PCB, bottom

PCB, bottom

T100-B-V1.2:

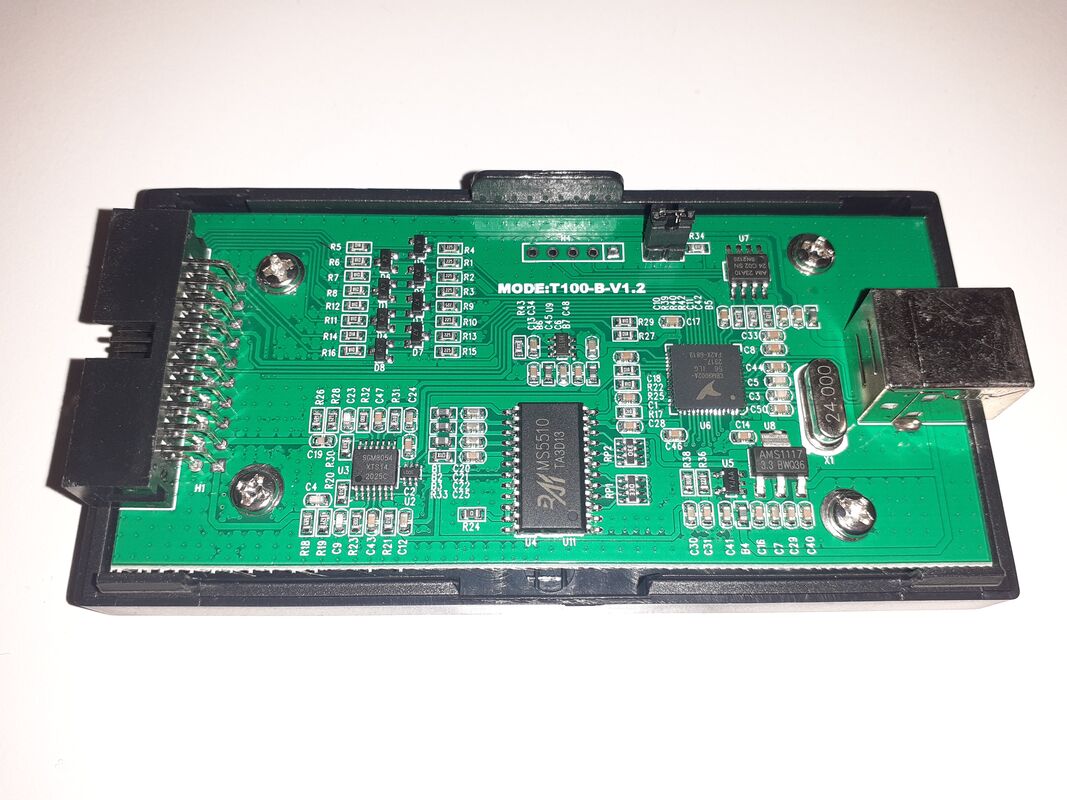

PCB, top

PCB, top

Protocol

Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
