Robomotic MiniLogic
| Status | Supported |
| Channels | 8 |
| Sample Rate | 24MHz |
| Memory | None |
| Triggers | None (Software Only) |
| Voltage Range | -0.5V — 5.25V |
| Website | http://buglogic.robomotic.com |
The Robomotic MiniLogic is a USB-based, 8-channel logic analyzer with up to 24MHz sampling rate.
It is a clone of the Saleae Logic.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
See Robomotic MiniLogic/Info for more details (such as lsusb -vvv output) about the device.
Hardware
- Main chip: Cypress CY7C68013A-56PVXC (FX2LP) (datasheet )
- Octal 3-state non-inverting buffer/line-driver/line-receiver: 74HC244A (TODO: vendor?)
- 1A low-dropout voltage regulator (3.3V): Advanced Monolithic Systems AMS1117-3.3 (datasheet )
- 2K I2C serial EEPROM: 2x Microchip 24LC02BI (datasheet )
- 64K I2C serial EEPROM: Microchip 24LC64I (datasheet )
Photos

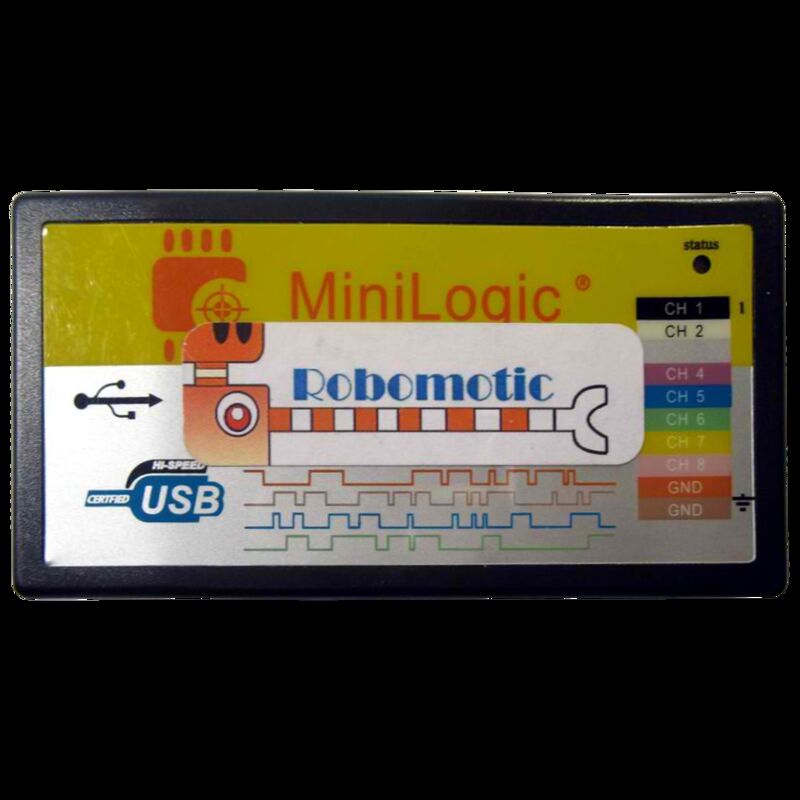

Device, front

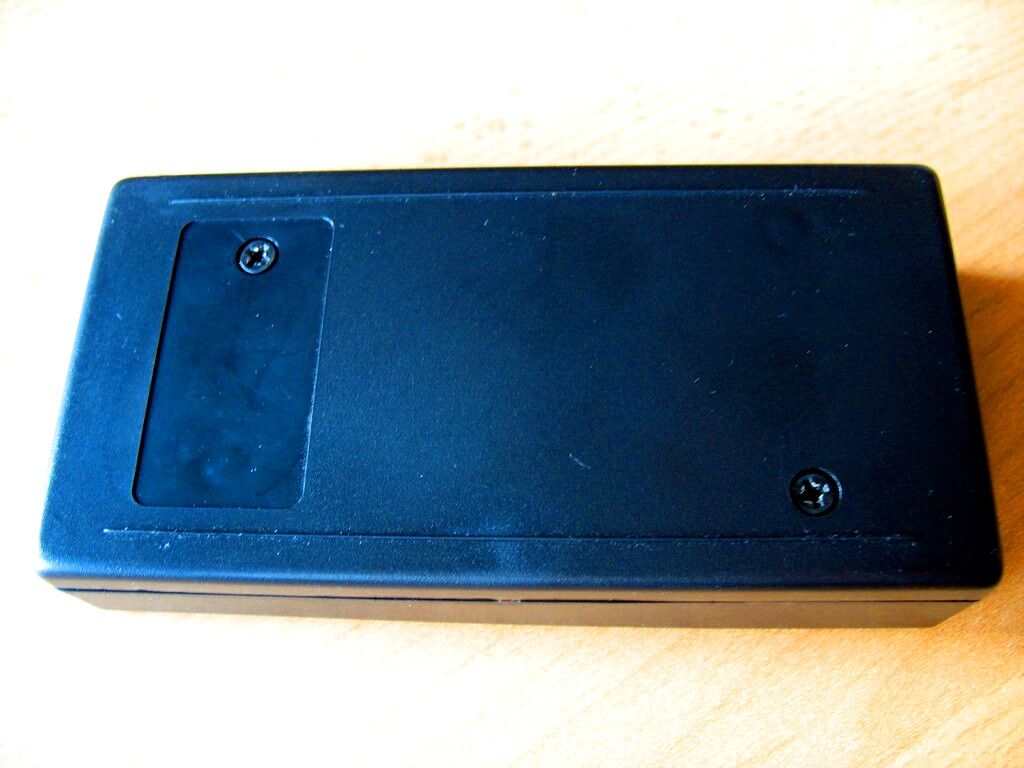

Device, back

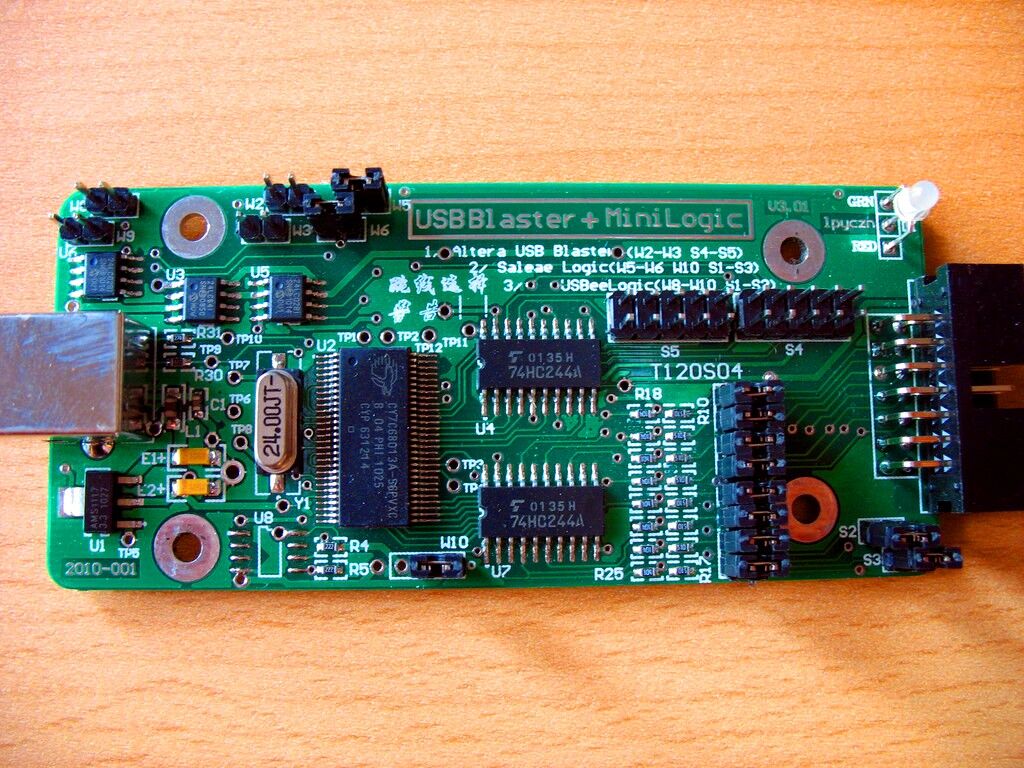

PCB, front

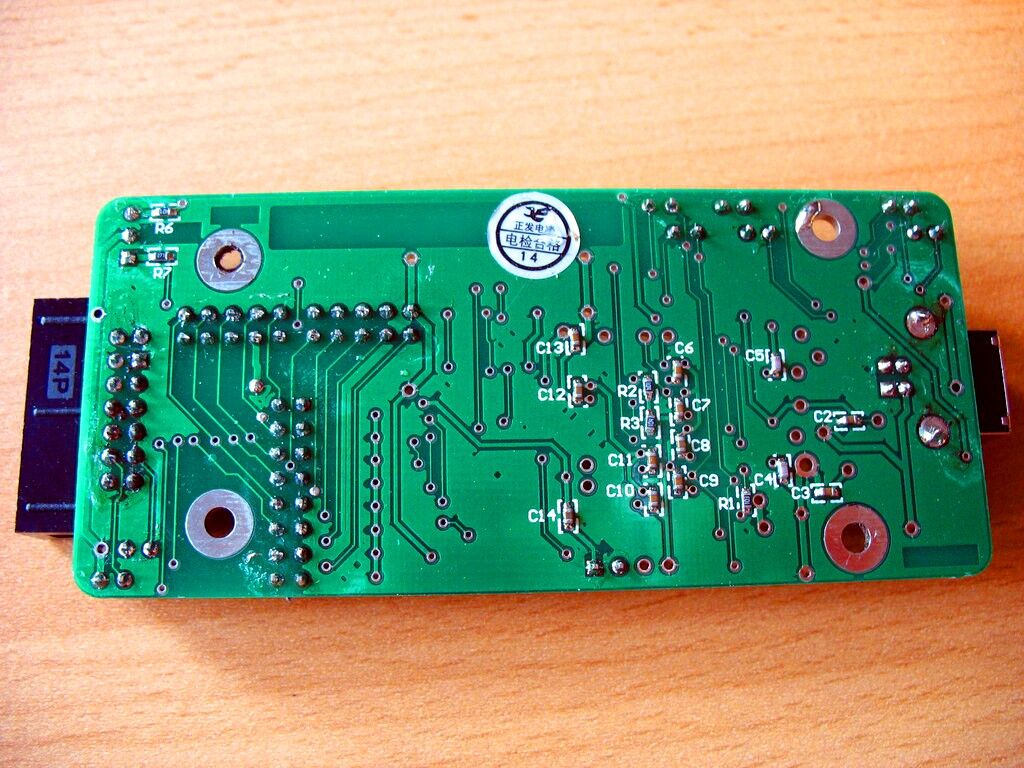

PCB, back

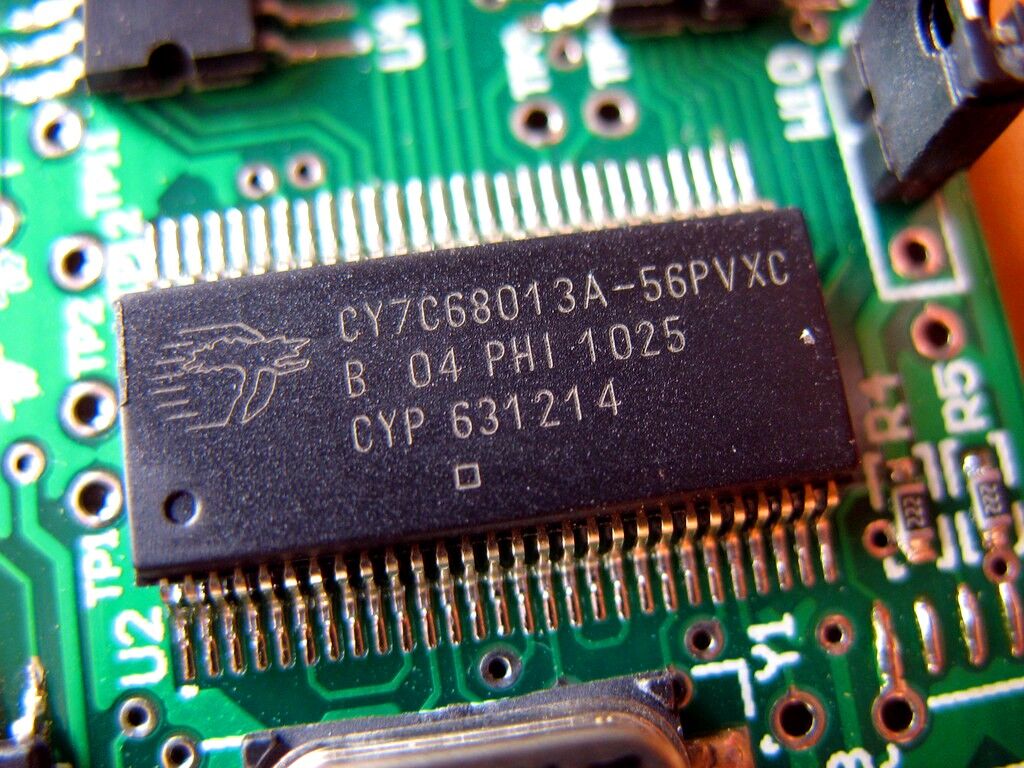

Cypress FX2

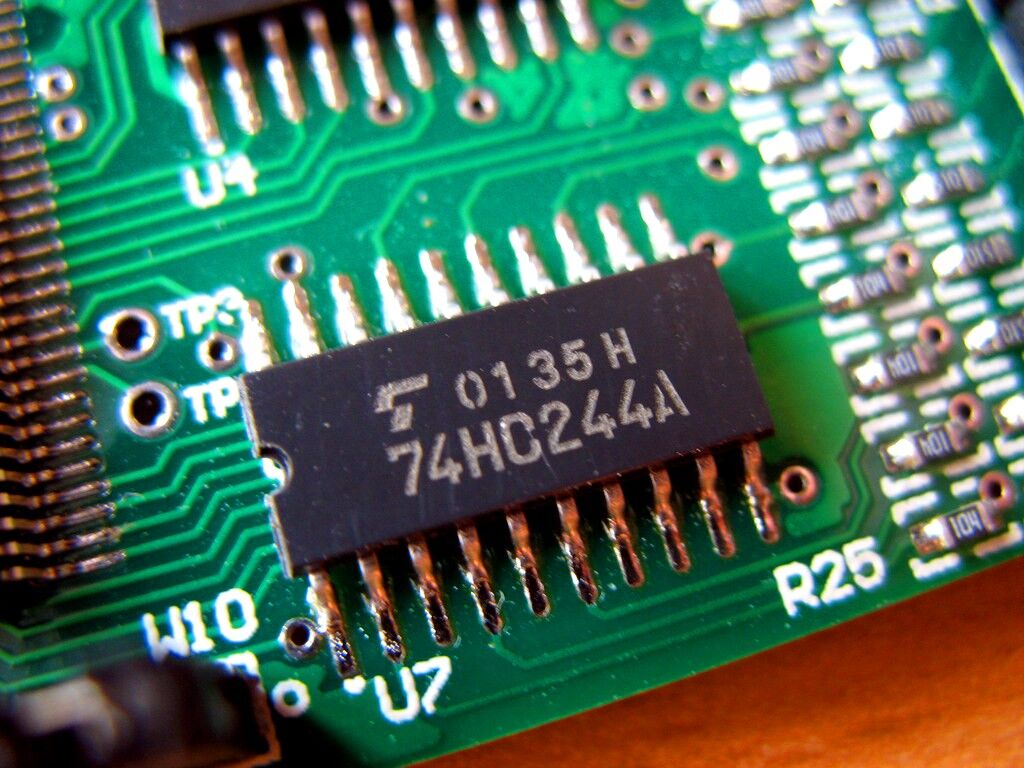

74HC244A

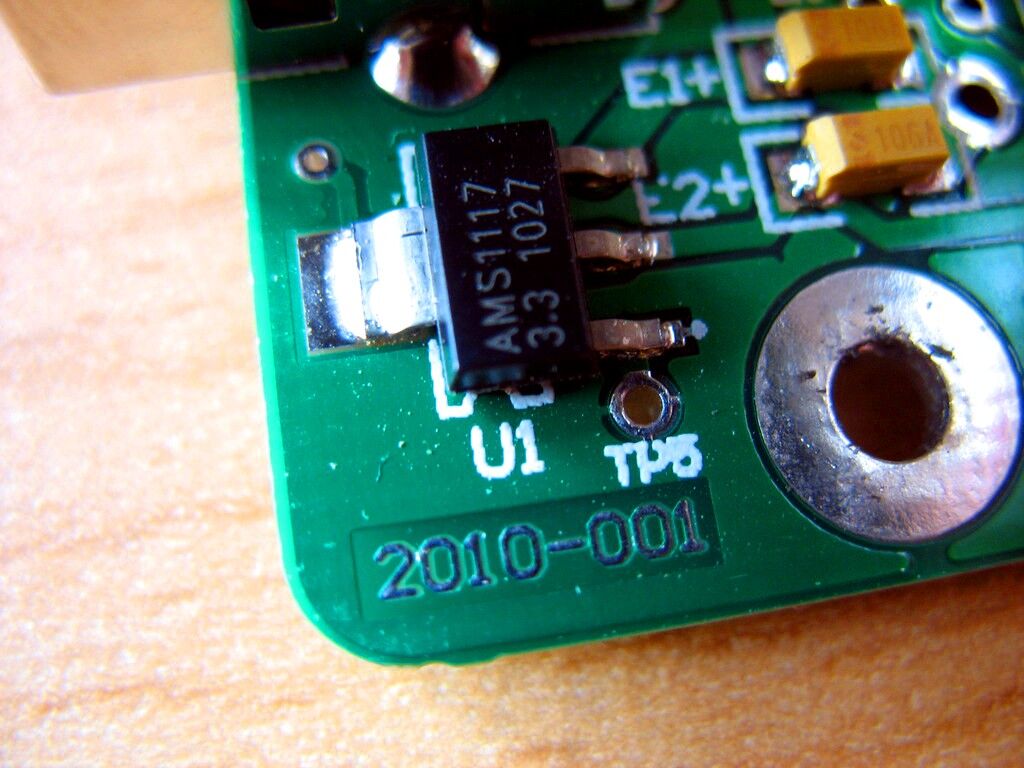

AMS1117

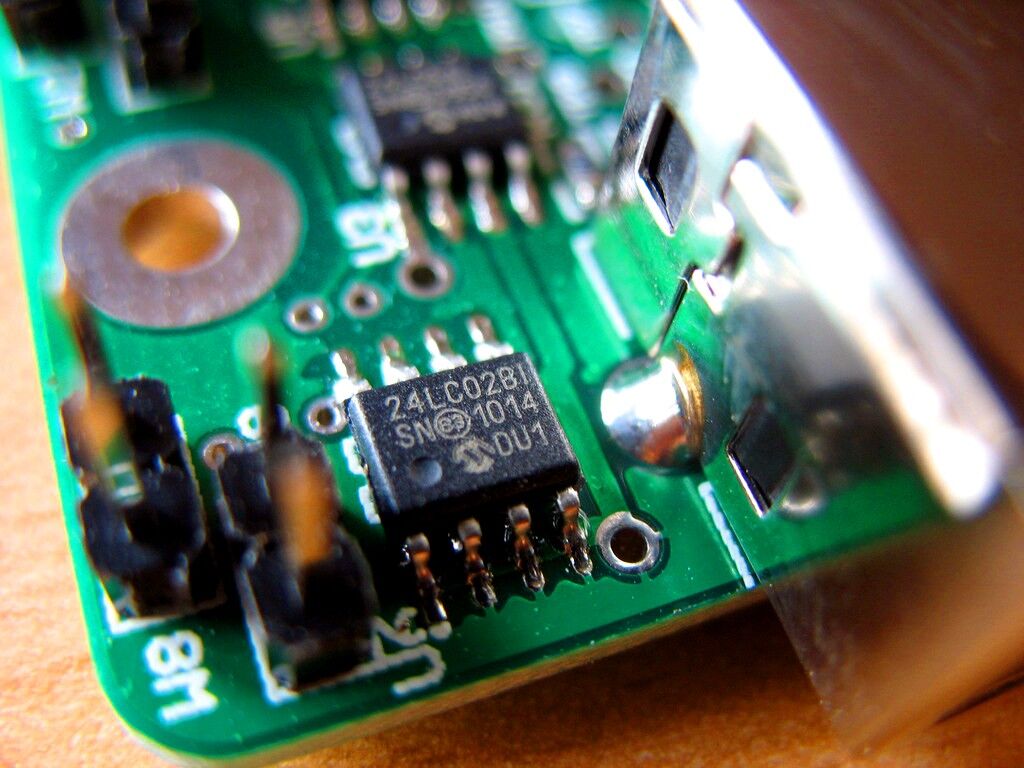

2x Microchip 24LC02BI

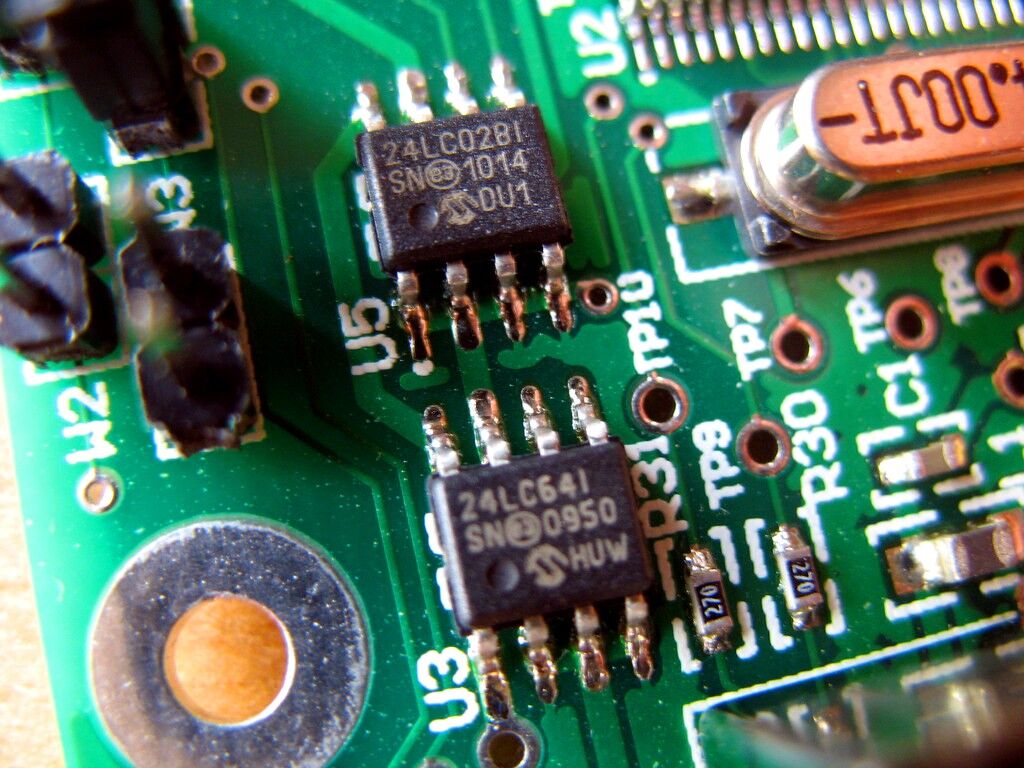

Microchip 24LC64I
See also this flickr set for more photos of the device.
Protocol
Since we use the open-source fx2lafw firmware for this device, we don't need to know the protocol.
