TechTools DigiView DV1-100
| Status | Planned |
| Channels | 18 |
| Sample Rate | 100MHz |
| Memory | 4.5Mb |
| Triggers | pattern, edge |
| Voltage Range | -5V — 10V |
| Website | http://web.archive.org/web/20080418073020/http://www.tech-tools.com/dv_dv1.htm |
The TechTools DigiView DV1-100 is a USB-based, 18-channel logic analyzer with a max. samplerate of 100MHz.
See TechTools DigiView DV1-100/Info for more details (such as lsusb -vvv output) about the device.
Hardware
- Quicklogic QL3025
- GSI GS84036AT-166
- Microchip 93LC46B
- FTDI FT245BM
- Maxim DS1233
- IRF F7314
- BCD AZ1086S
- 100MHz crystal
Photos

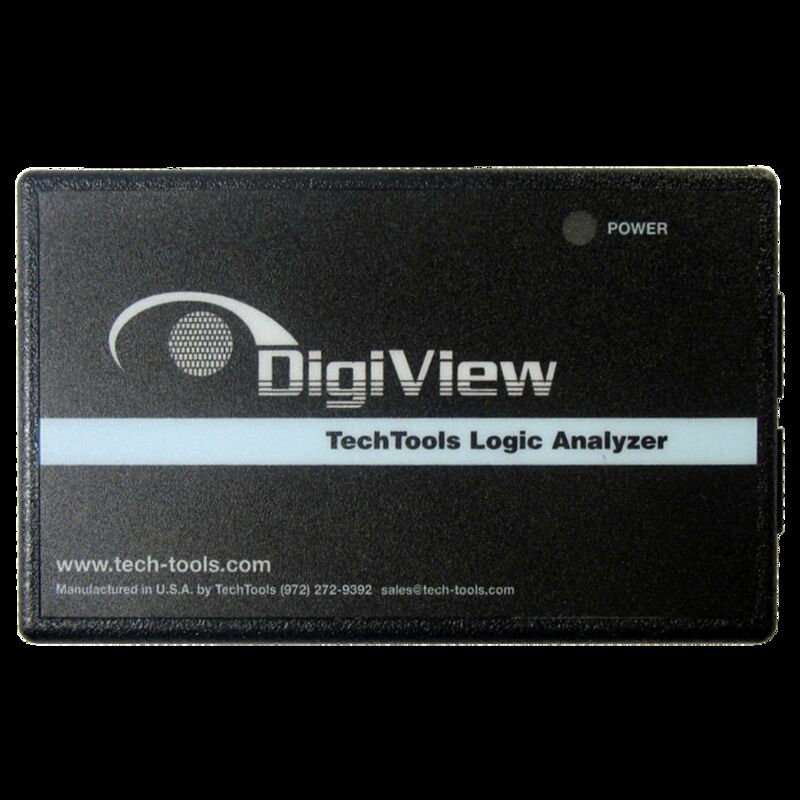

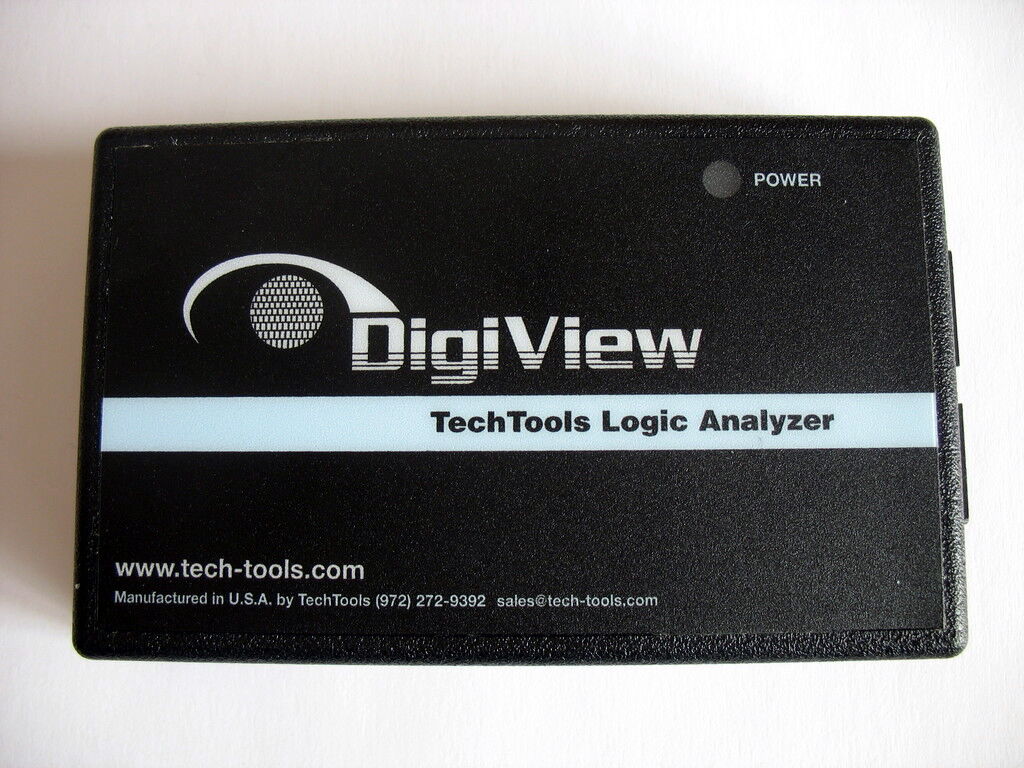

Device, top

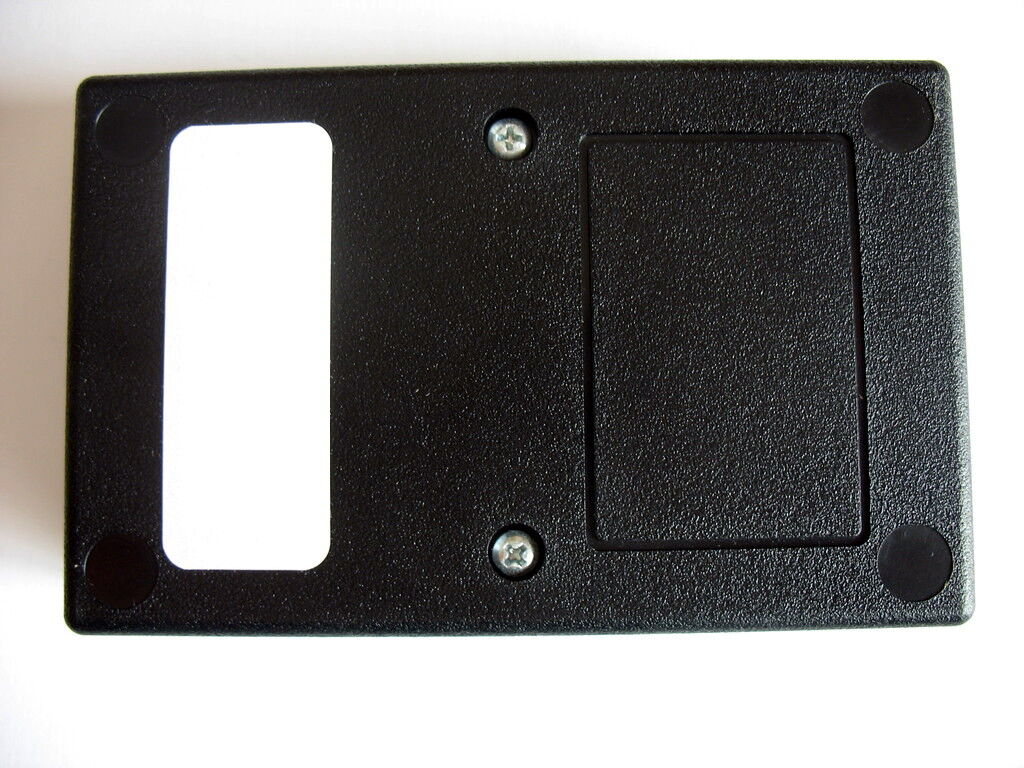

Device, bottom

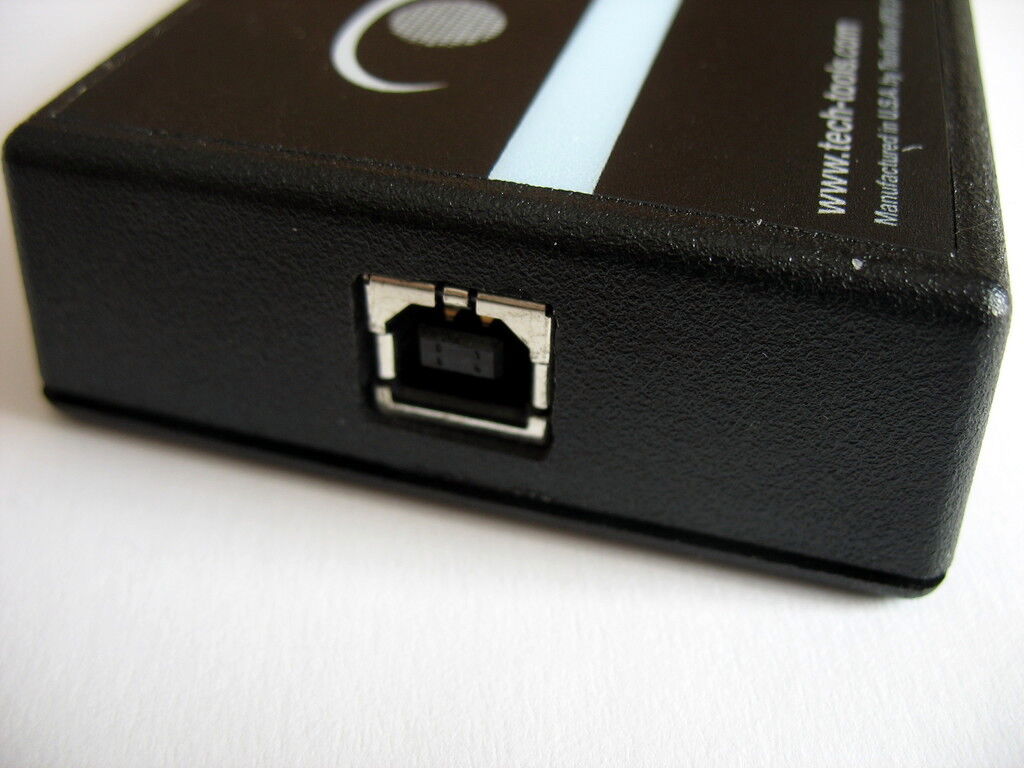

Device, USB

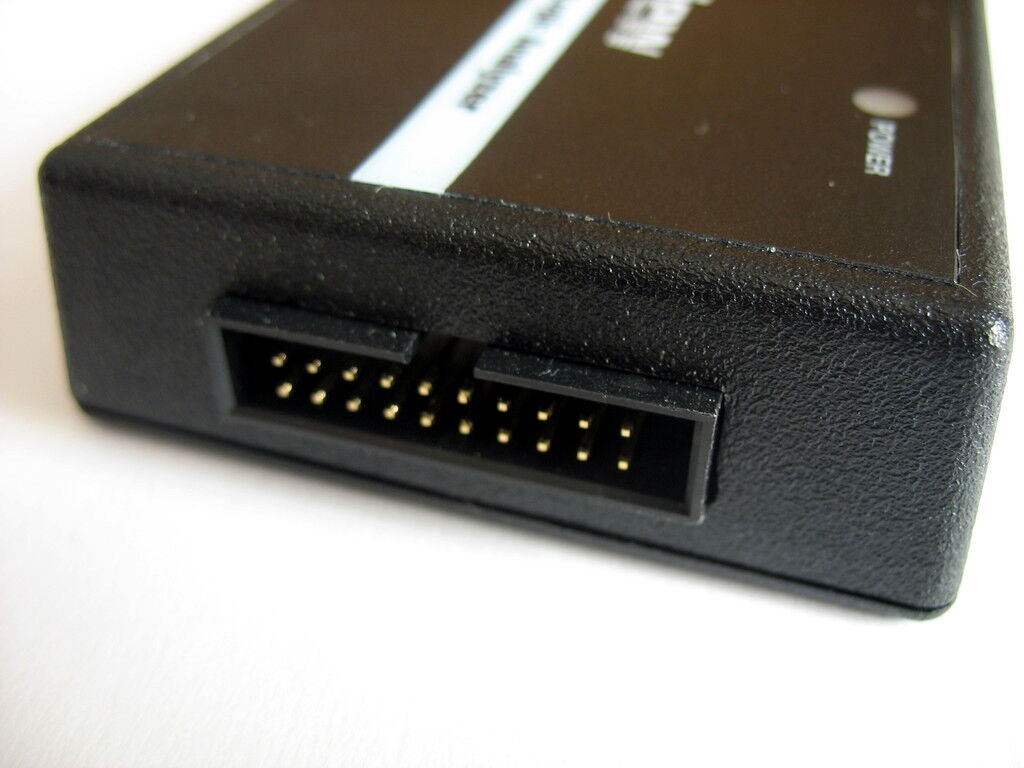

Device, probe connector

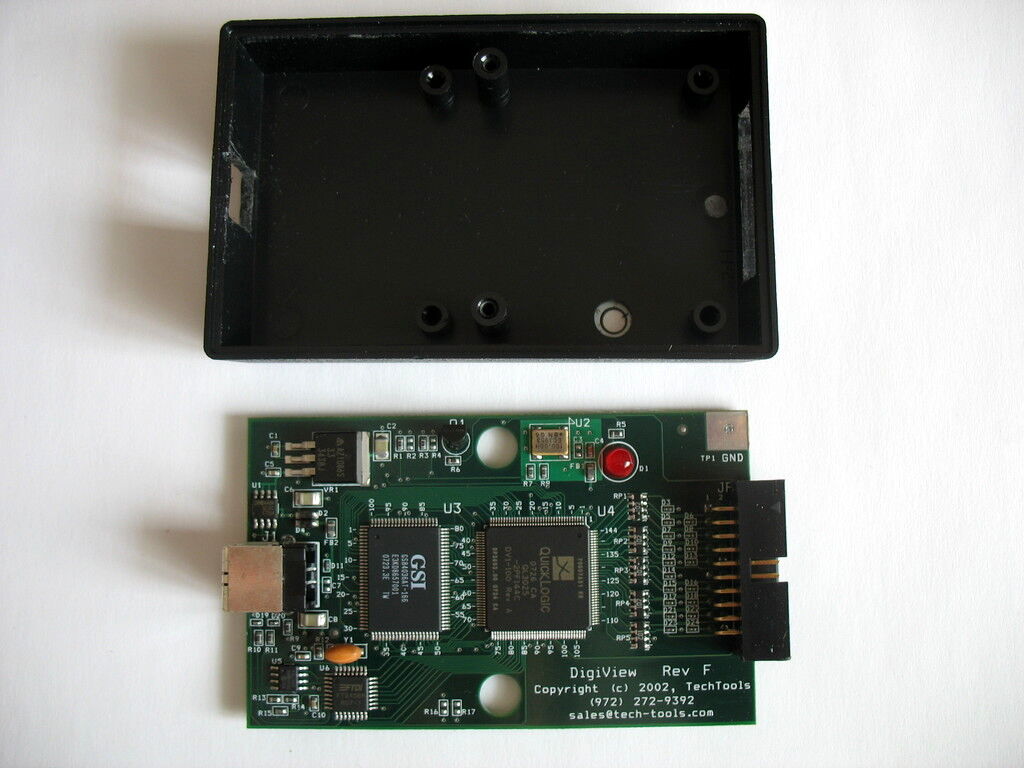

Device, open

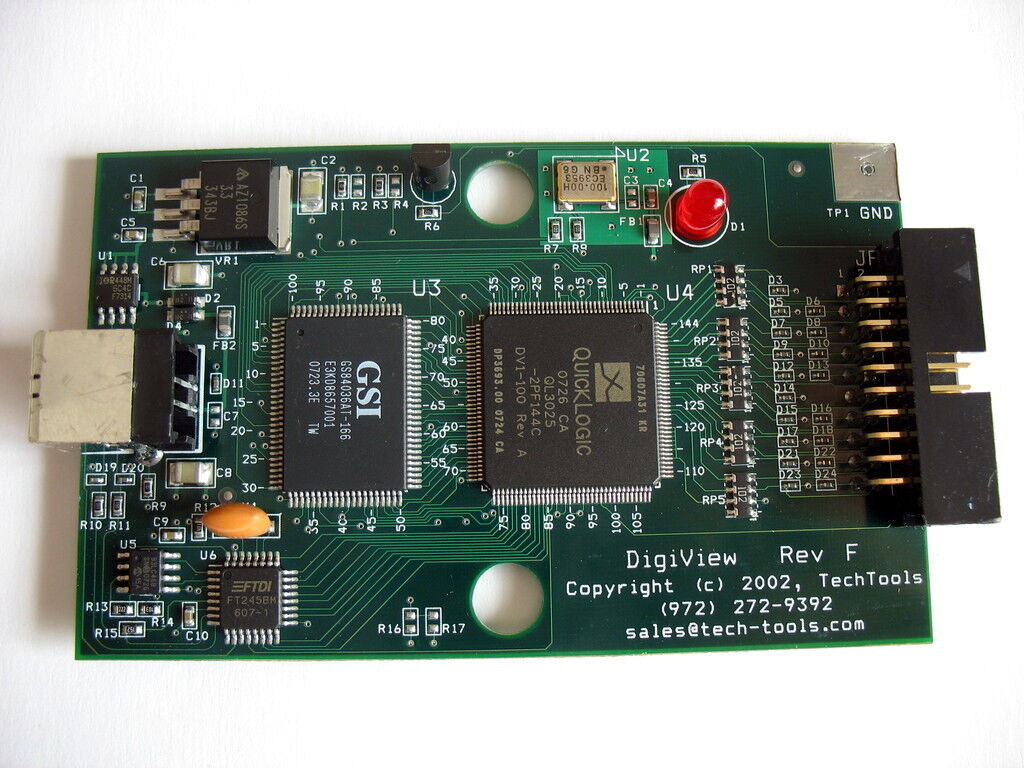

PCB, top

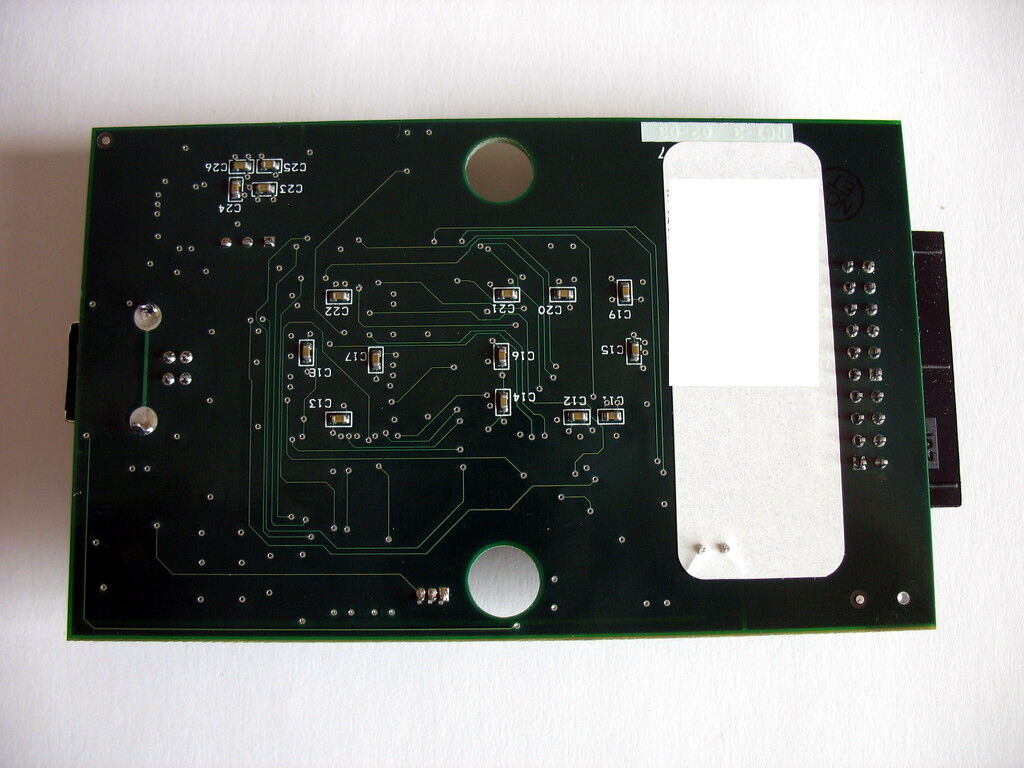

PCB, bottom

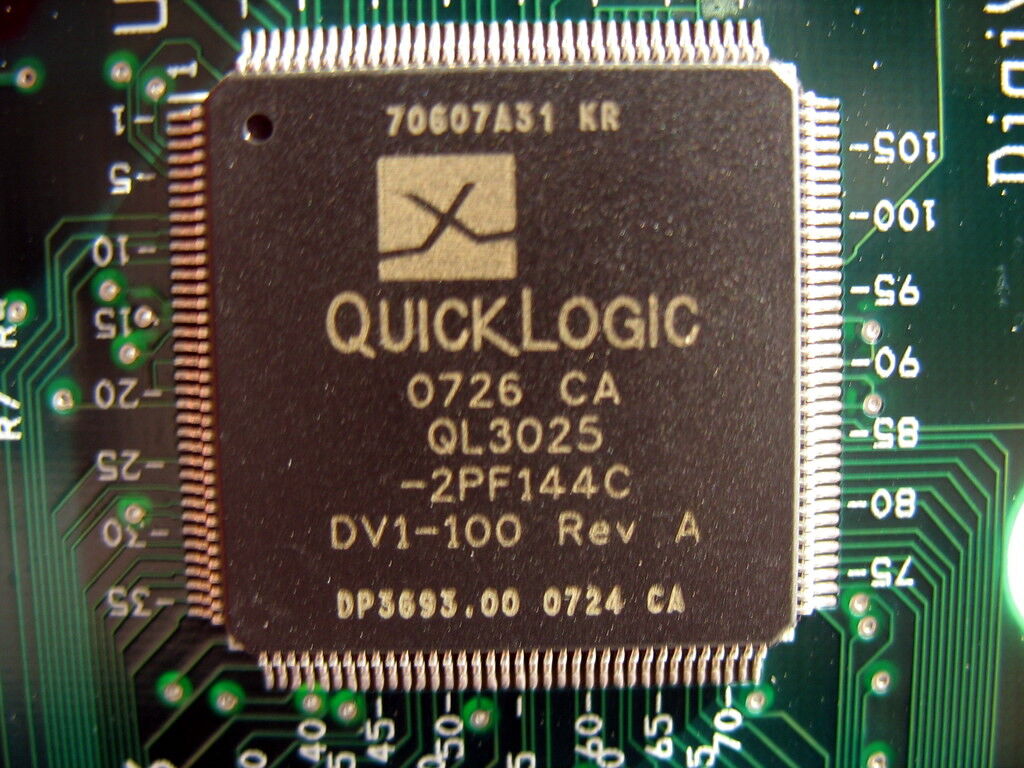

Quicklogic QL3025

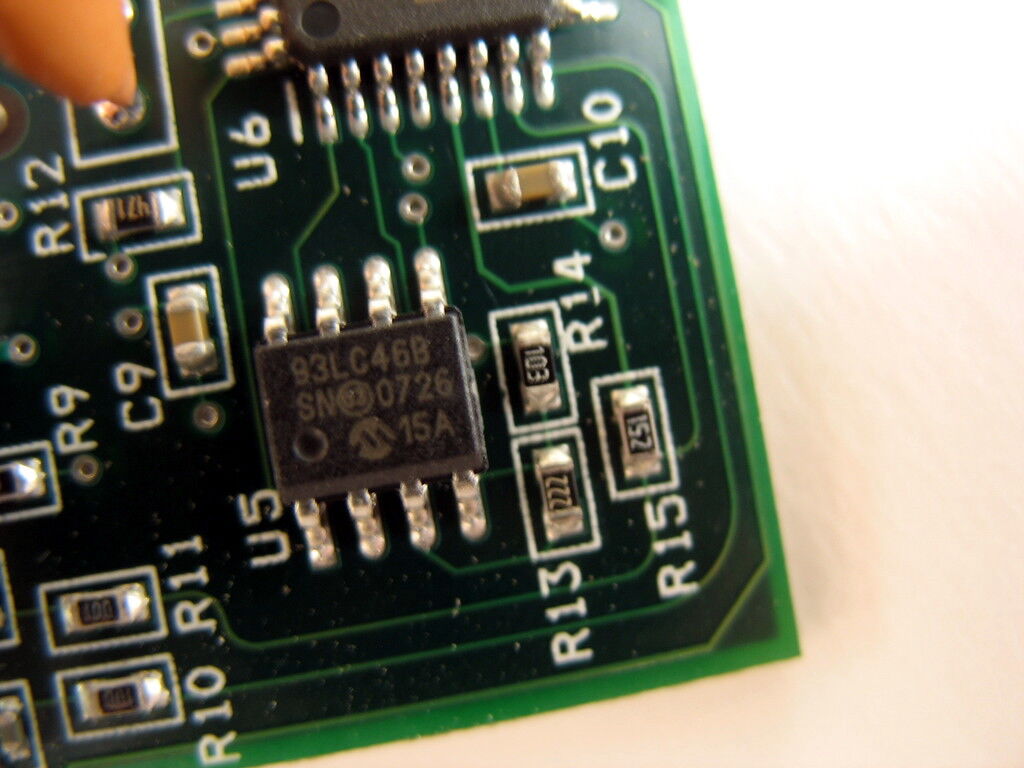

Microchip 93LC46B

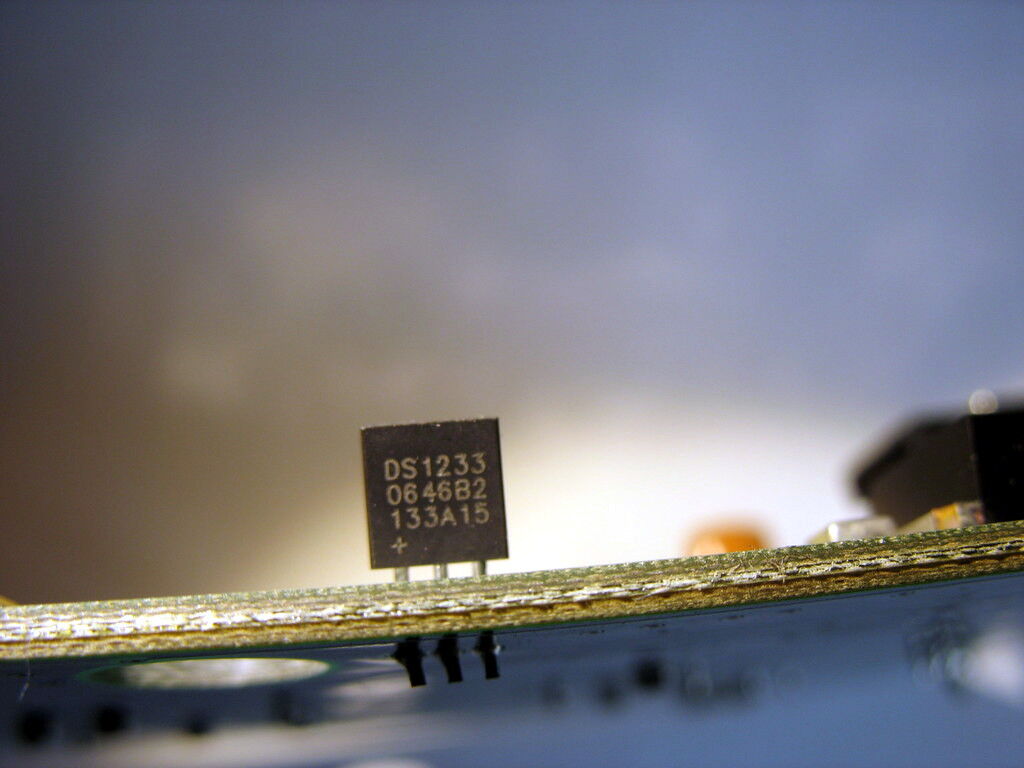

Maxim DS1233

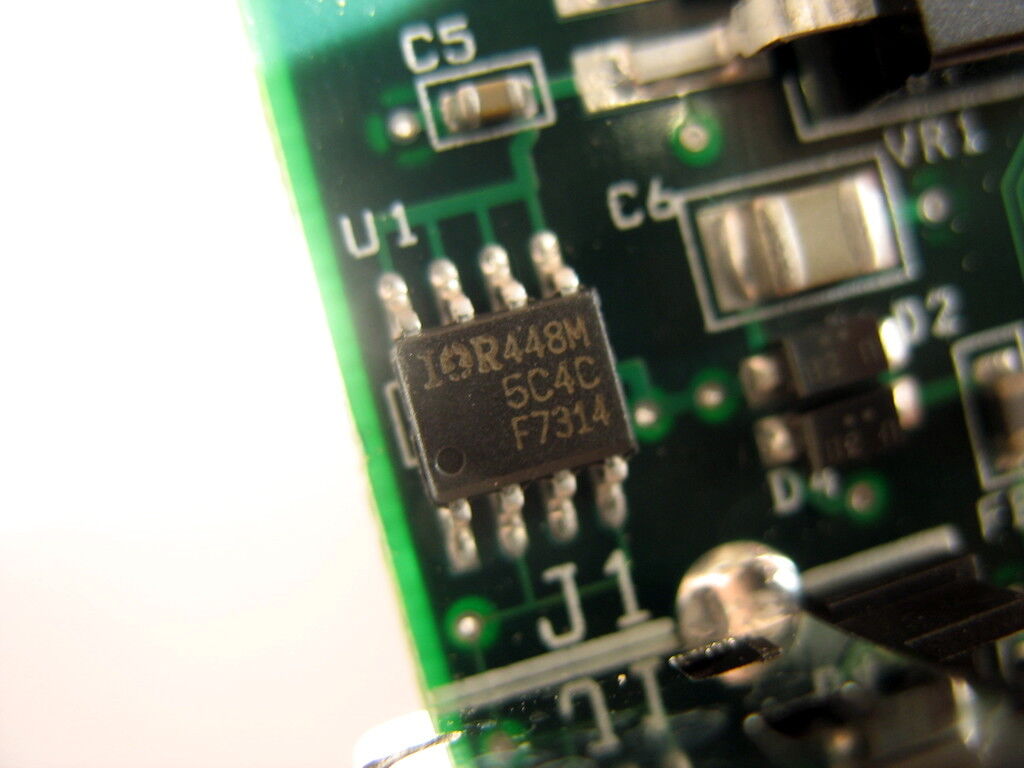

IRF F7314

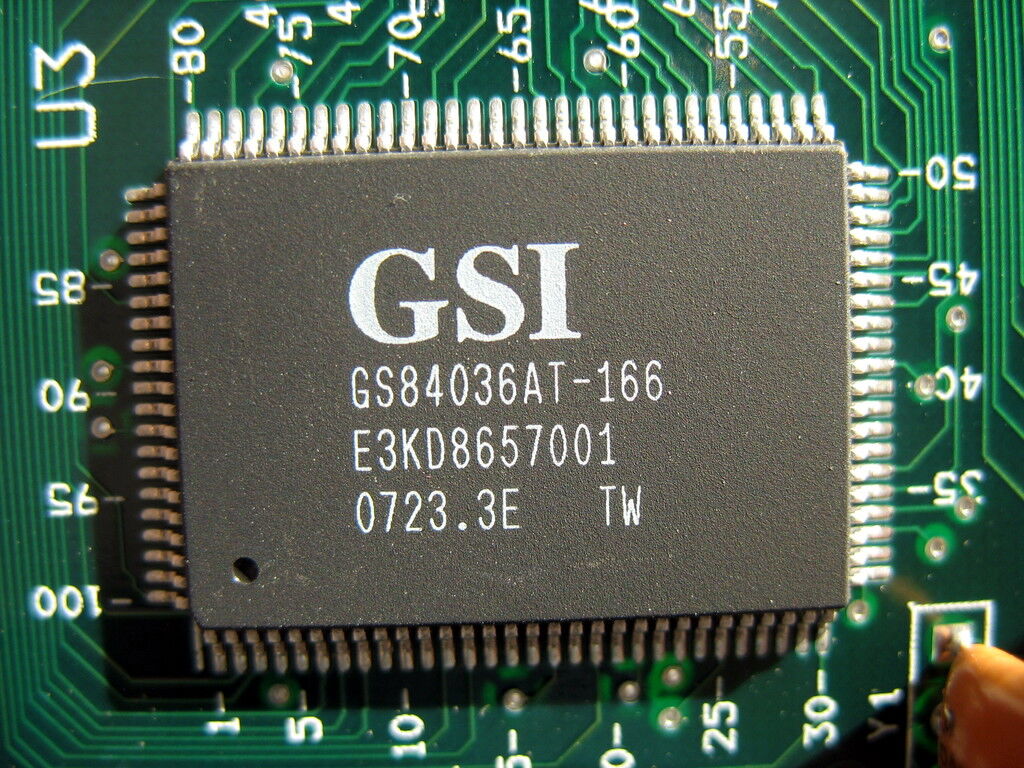

GSI GS84036AT-166

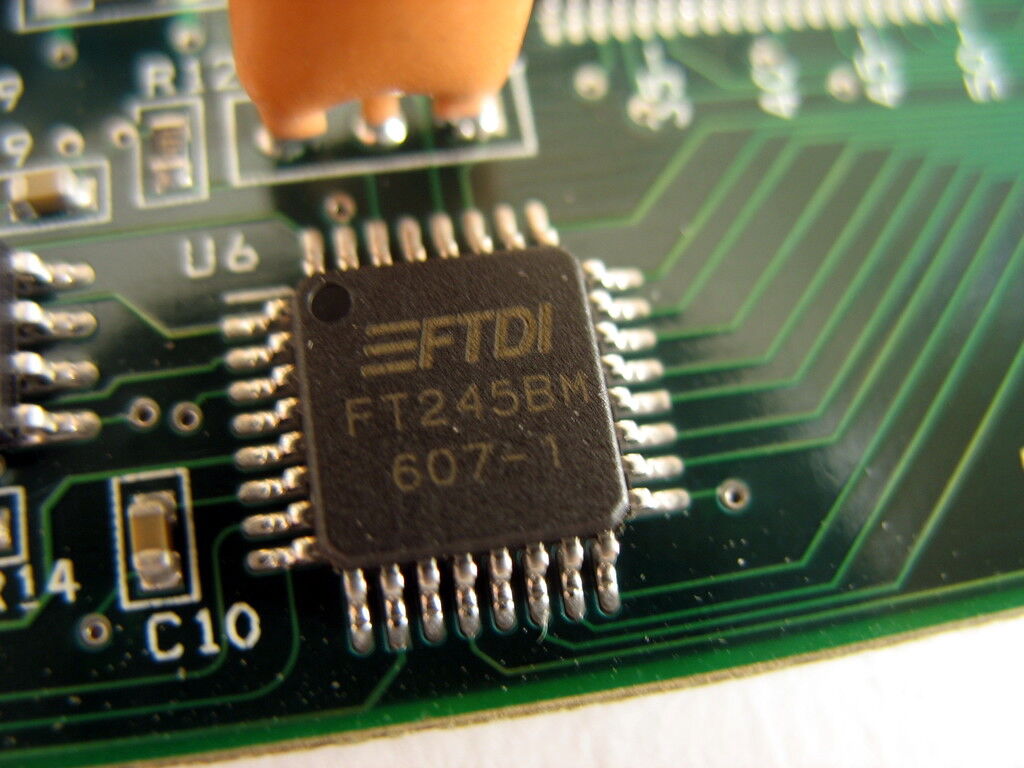

FTDI FT245BM

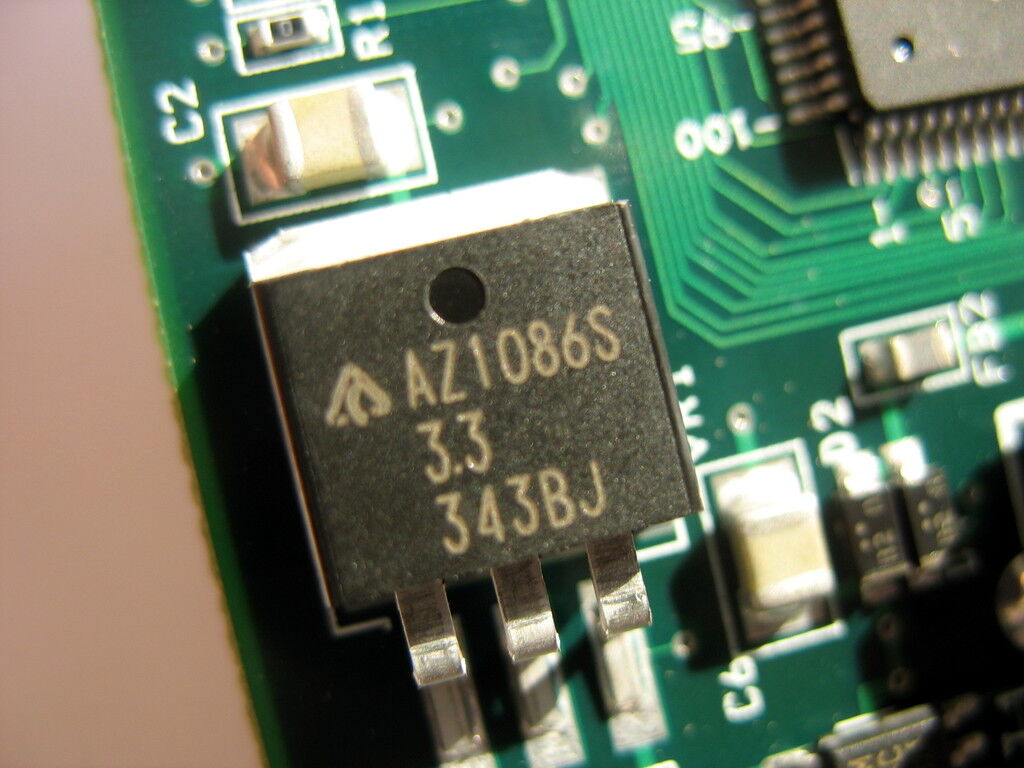

BCD AZ1086S

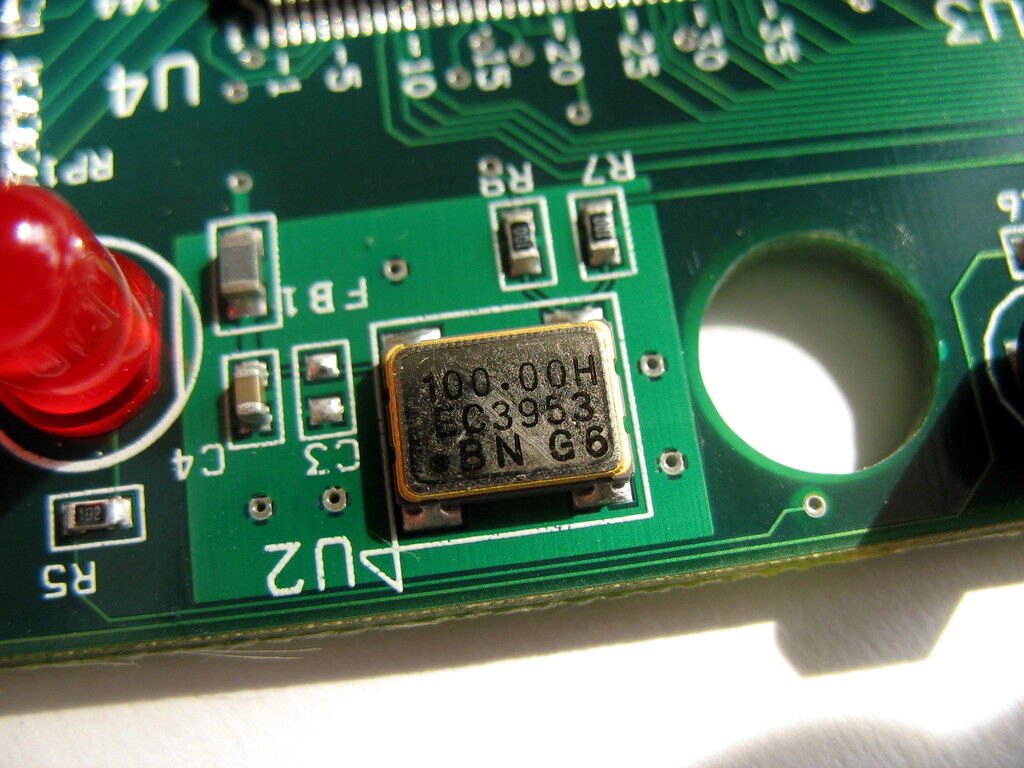

100MHz crystal
Protocol
TODO.
