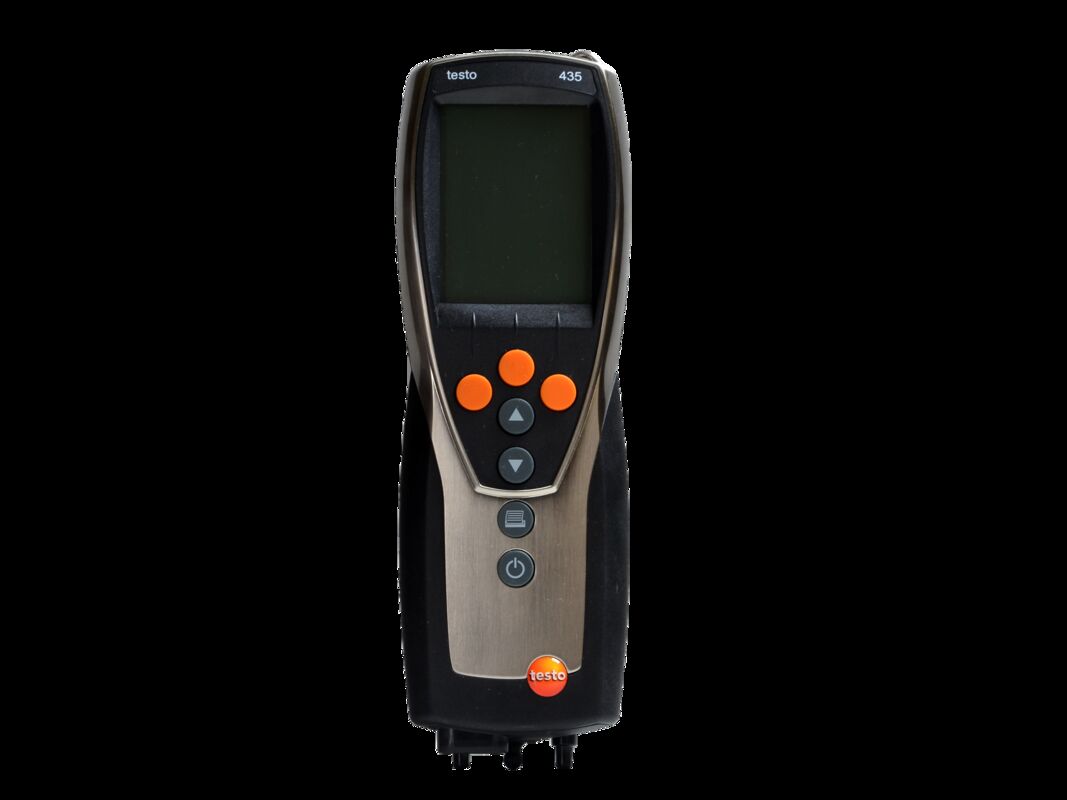

Testo 435-4
| Status | Supported |
| Channels | Unknown |
| Sample Rate | Unknown |
| Memory | Unknown |
| Triggers | Unknown |
| Voltage Range | Unknown |
| Website | http://www.testolimited.com/testo-435-4-multi-function-instrument-for-vac-iaq |
The Testo 435-4 is a multifunction meter, capable of measuring airflow, humidity, temperature, indoor air quality, and more depending on the connected probes. It can store up to 10000 measurements internally, and communicates with a host via USB.
See Testo 435-4/Info for more details (such as lsusb -v output) about the device.
Hardware
- Renesas M16C/62P (M30626FJPGP) microcontroller.
- Cypress CY62128DV30 128K RAM chip.
- FTDI FT232RQ serial-USB interface chip.
Photos

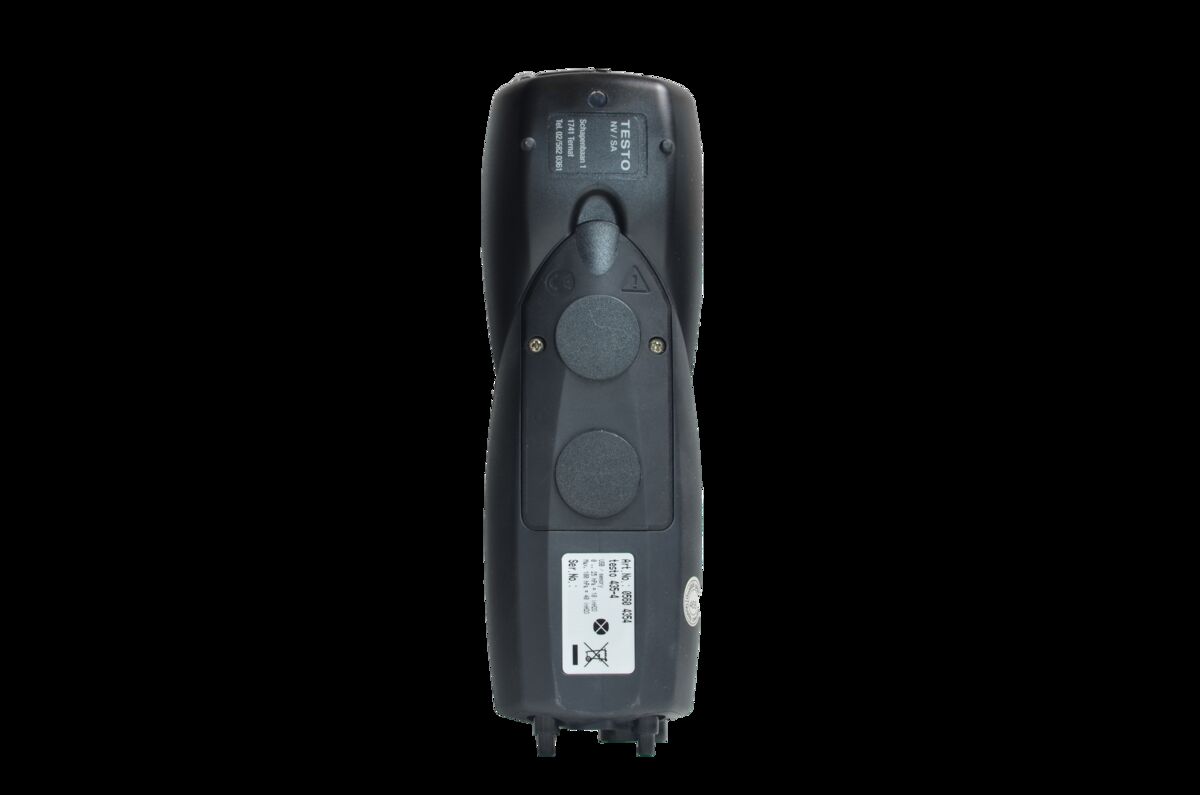

Device, back

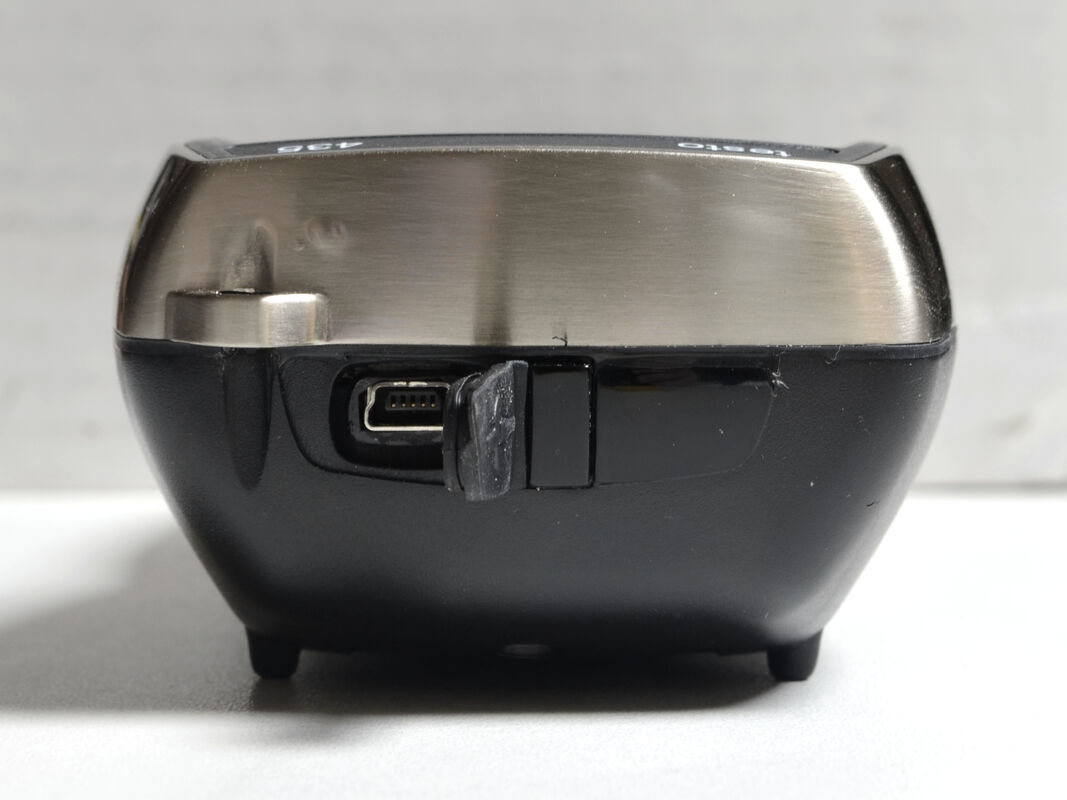

Device, top

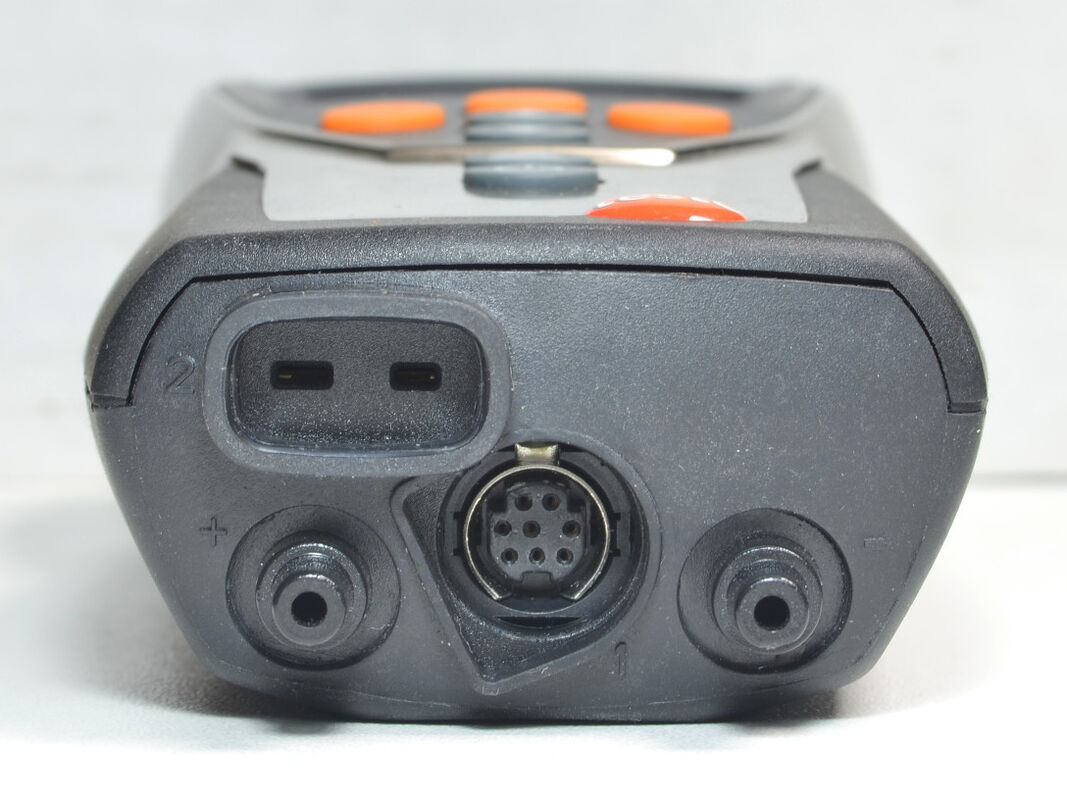

Device, bottom

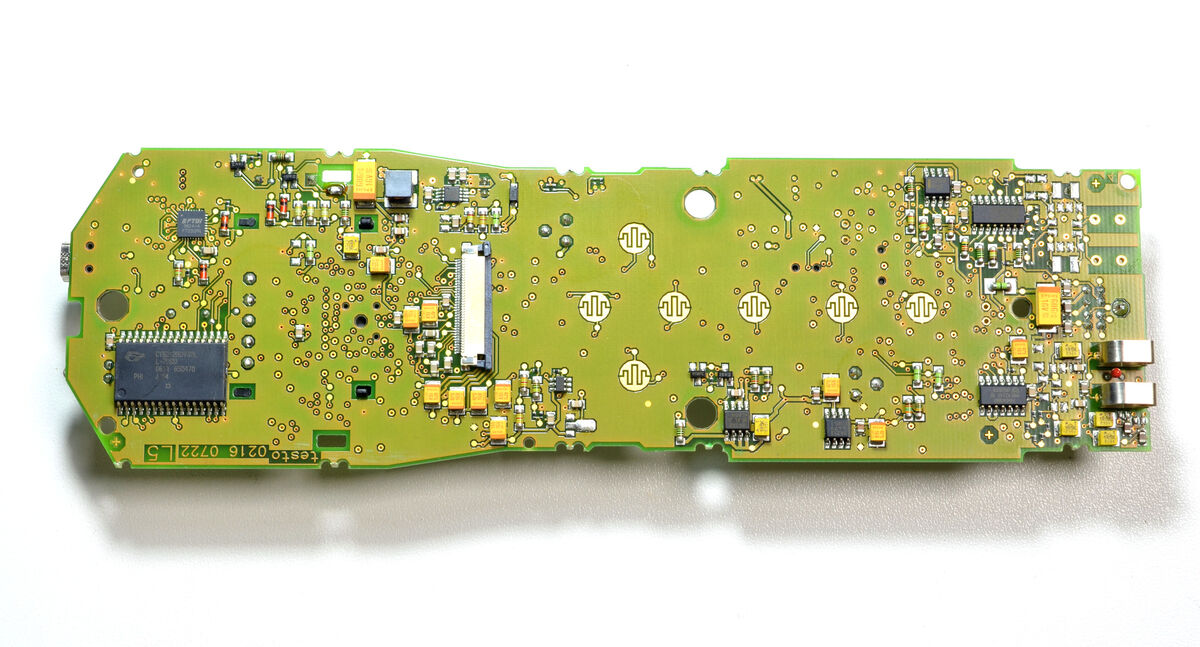

PCB, top

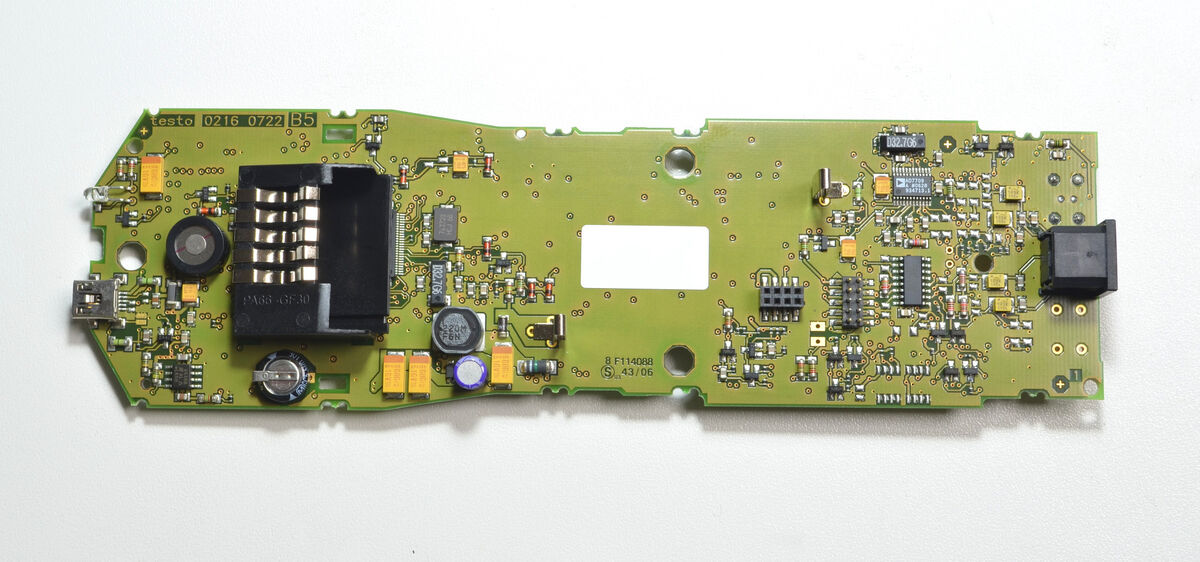

PCB, bottom

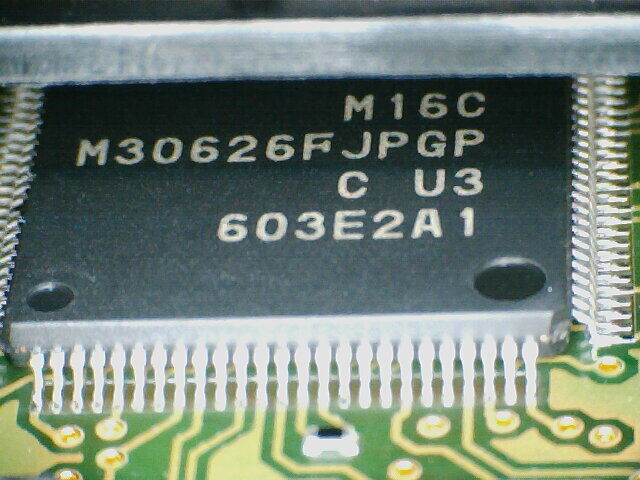

Renesas M16C/62P

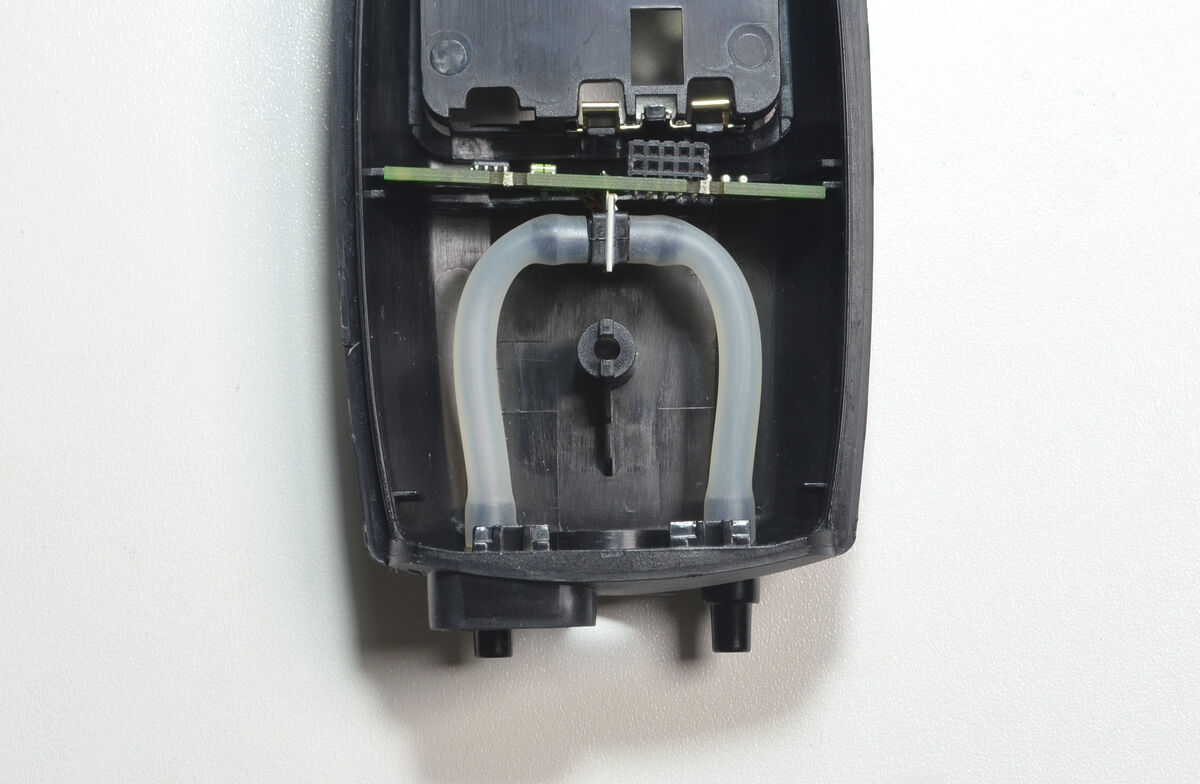

Probe connection

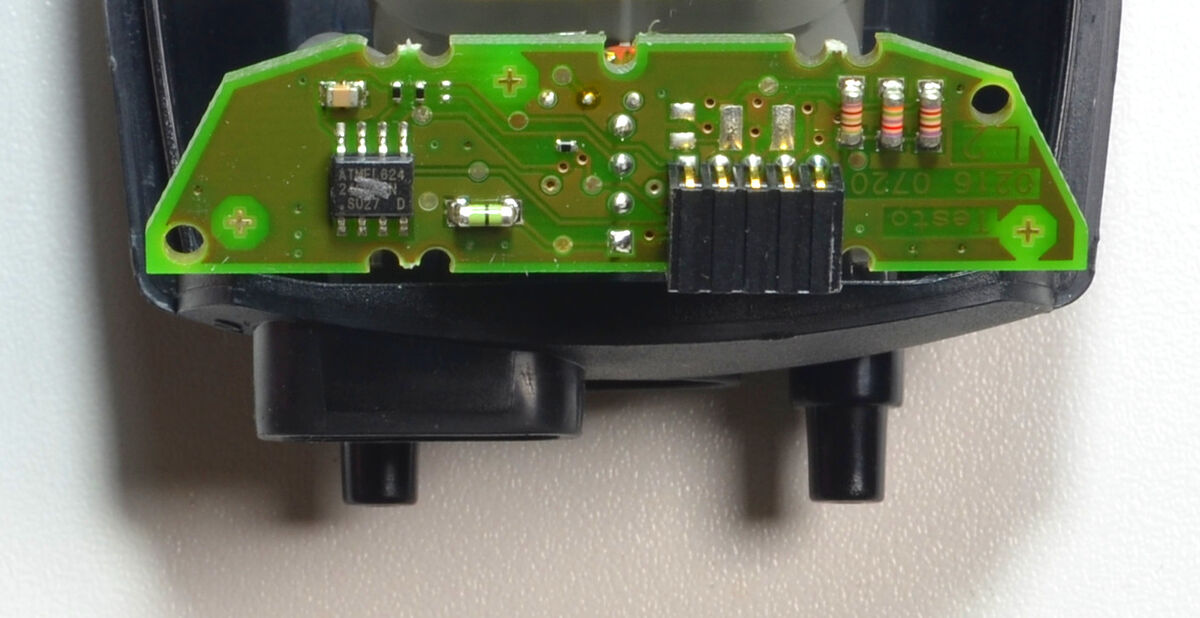

Probe PCB

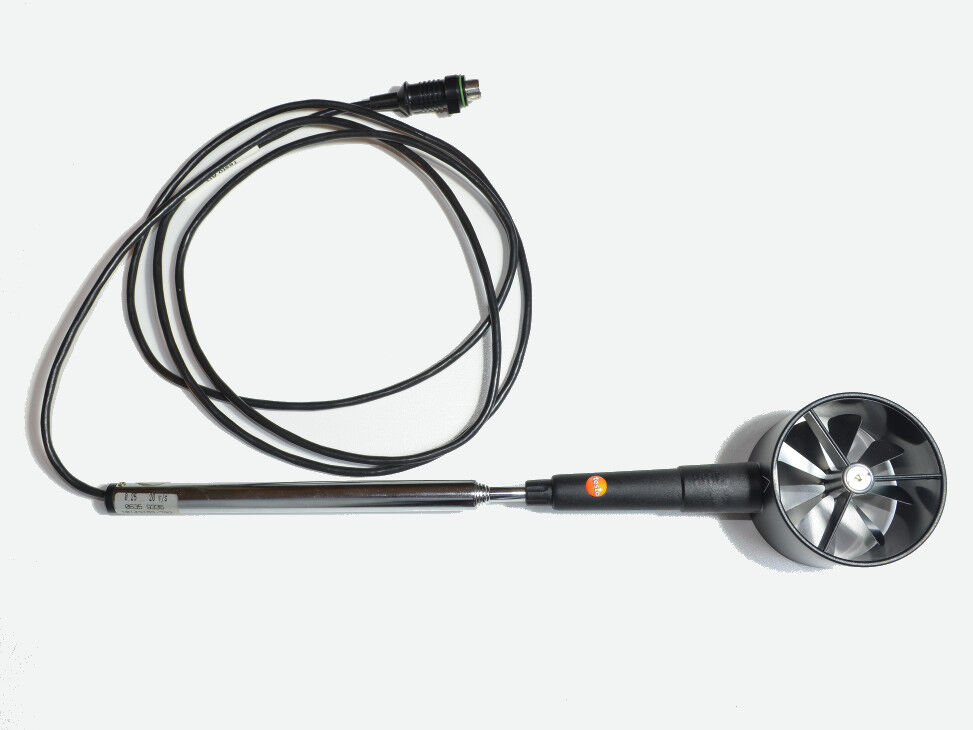

Airflow robe

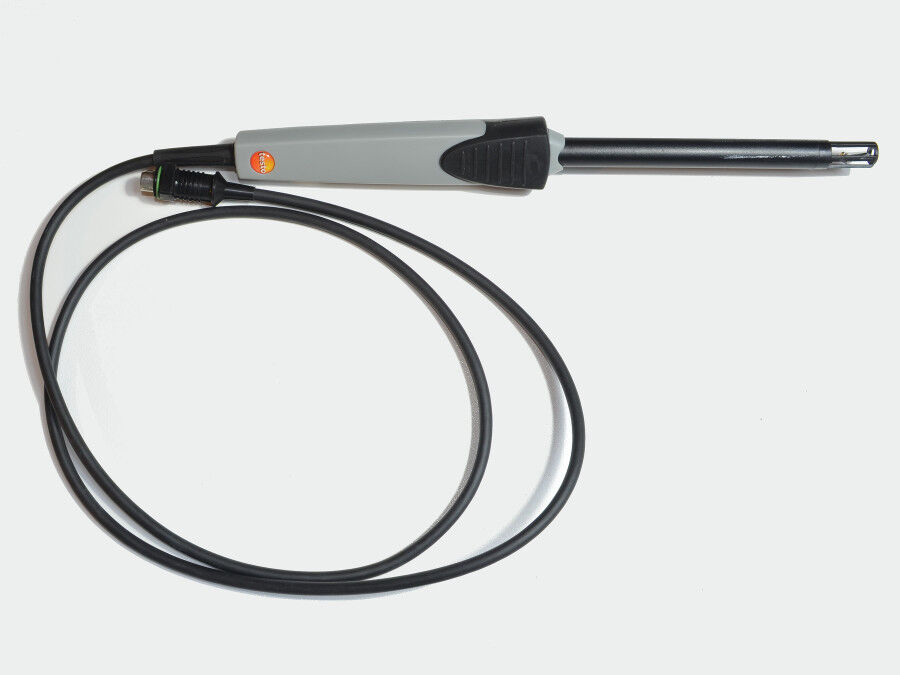

Temperature probe
