WayEngineer Saleae16
| Status | Supported |
| Channels | 3/6/9/16 |
| Sample Rate | 100/50/32/16MHz |
| Memory | None |
| Triggers | None (Software Only) |
| Voltage Range | -0.9V — 6V |
| Website | https://web.archive.org/web/20161229025314/http://www.wayengineer.com/index.php?main_page=product_info&products_id=4747 |
The WayEngineer Saleae16 is a USB-based, 16-channel logic analyzer with 100/50/32/16MHz sampling rate (at 3/6/9/16 enabled channels).
This is a clone of the Saleae Logic16.
See WayEngineer Saleae16/Info for more details (such as lsusb -v output) about the device.
Hardware
- FPGA: Xilinx Spartan-3A XC3S200A , 200K gates (datasheeet )
- USB interface chip: Cypress CY7C68013A-56LTXC (FX2LP) (datasheet )
- I²C EEPROM: Atmel 24C02N (markings: "ATMEL142 24C02N SU27 D") (datasheet )
- 3.3V voltage regulator: Advanced Monolithic Systems AMS1117-3.3 (datasheet , older datasheet )
- 1.2V voltage regulator: Advanced Monolithic Systems AMS1117-1.2 (datasheet , older datasheet )
- Crystal: 24.000
Photos

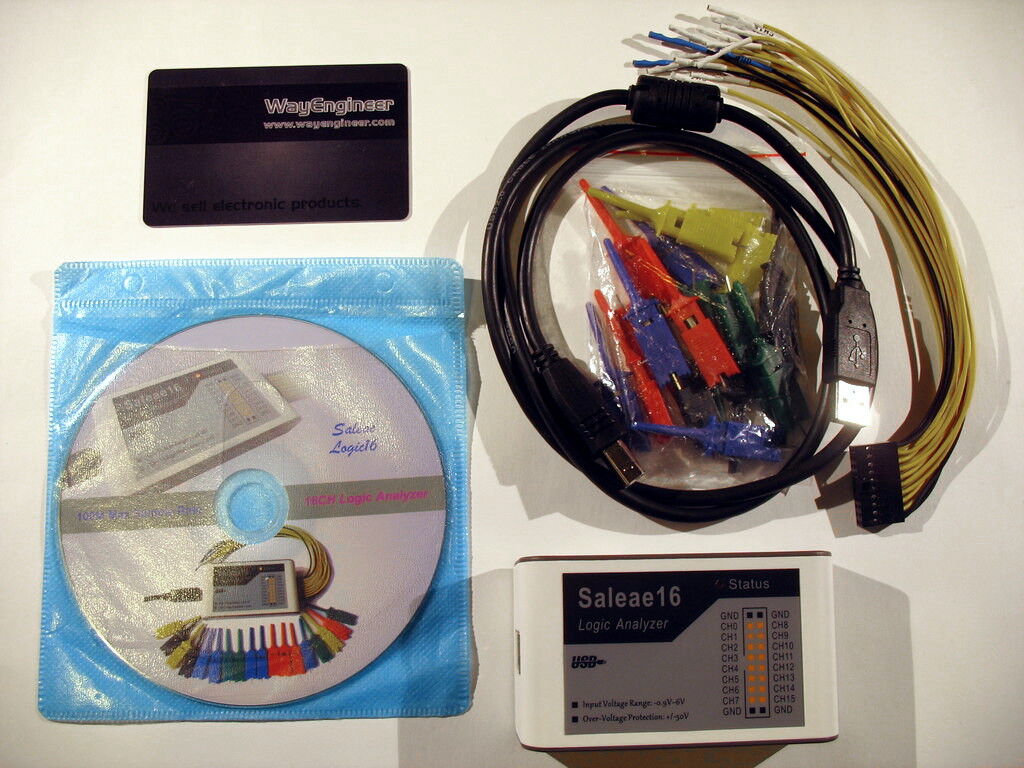

Package contents

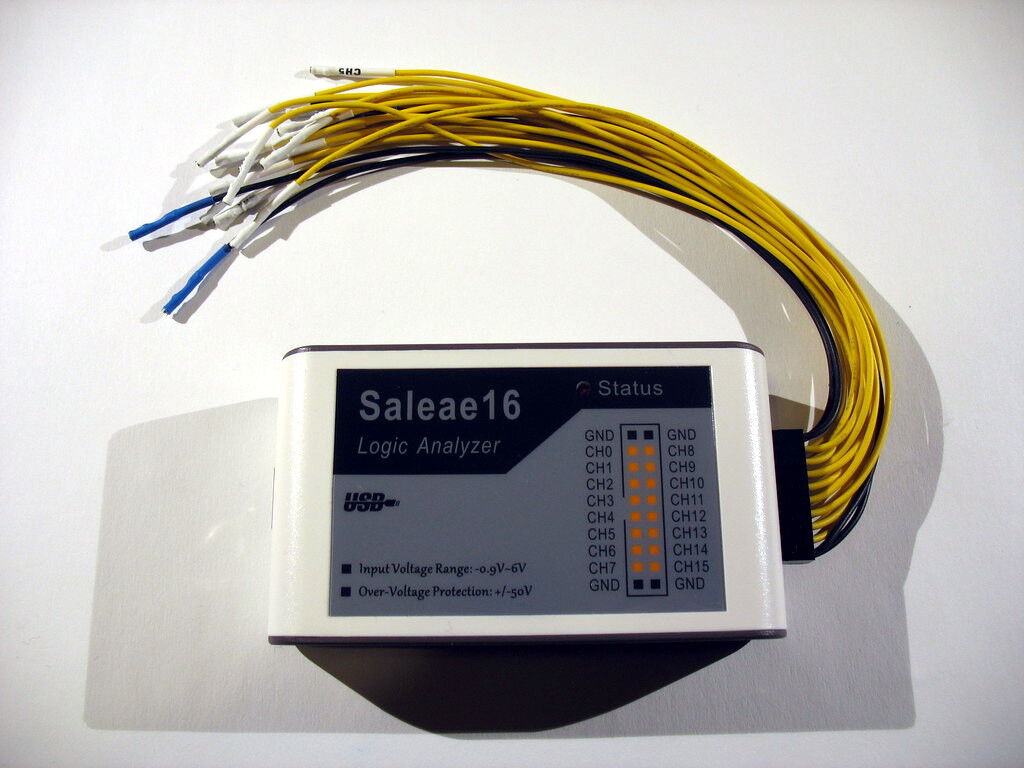

Device with cable

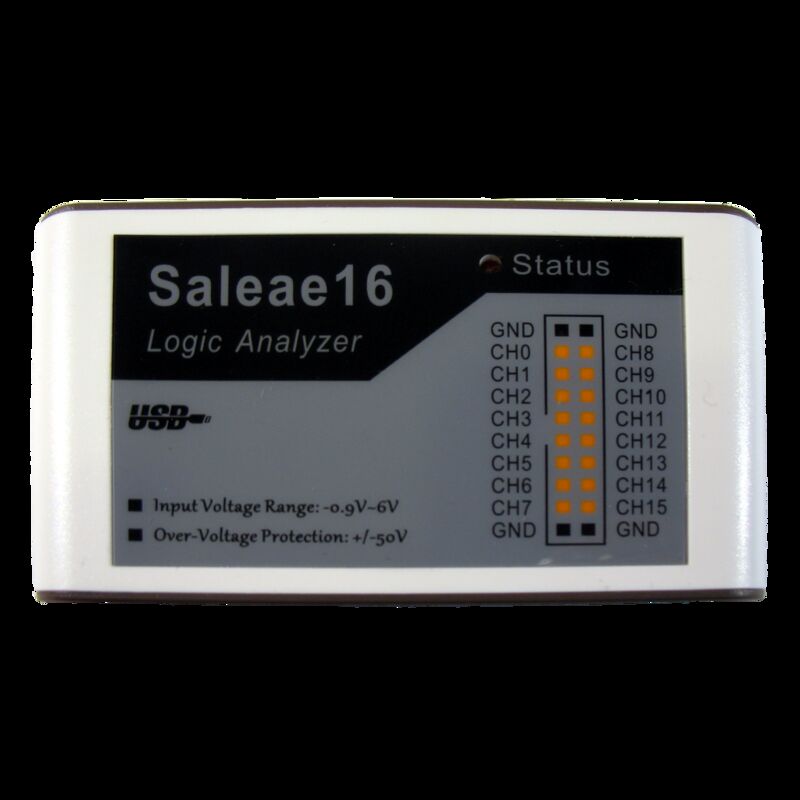

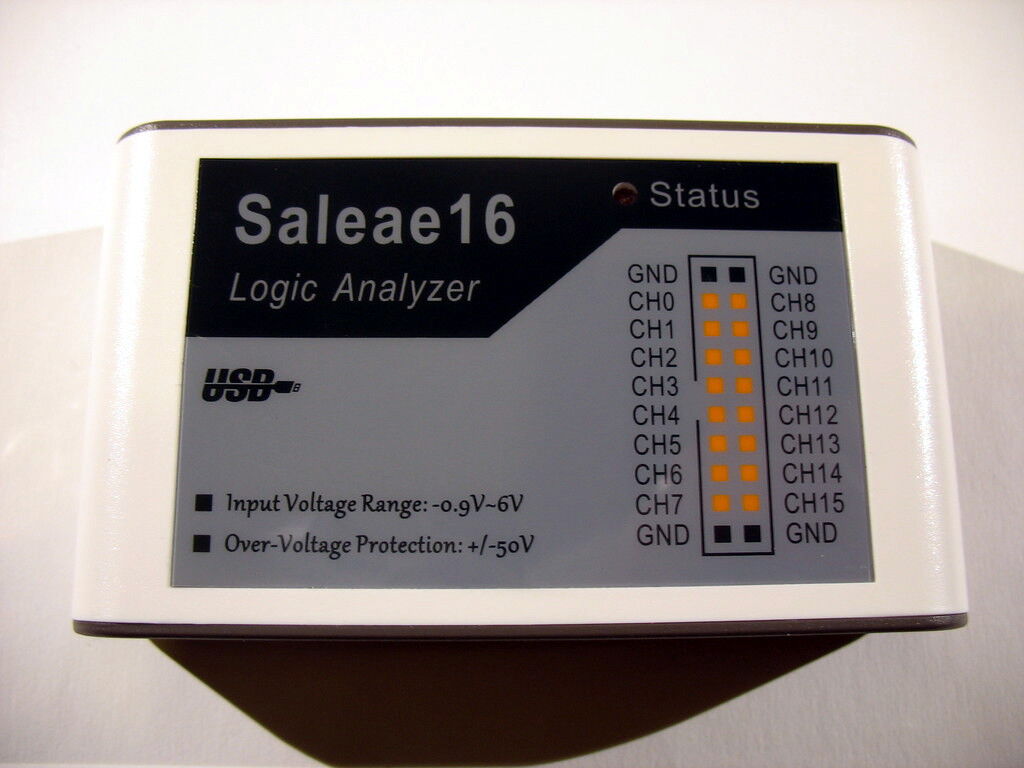

Device, top

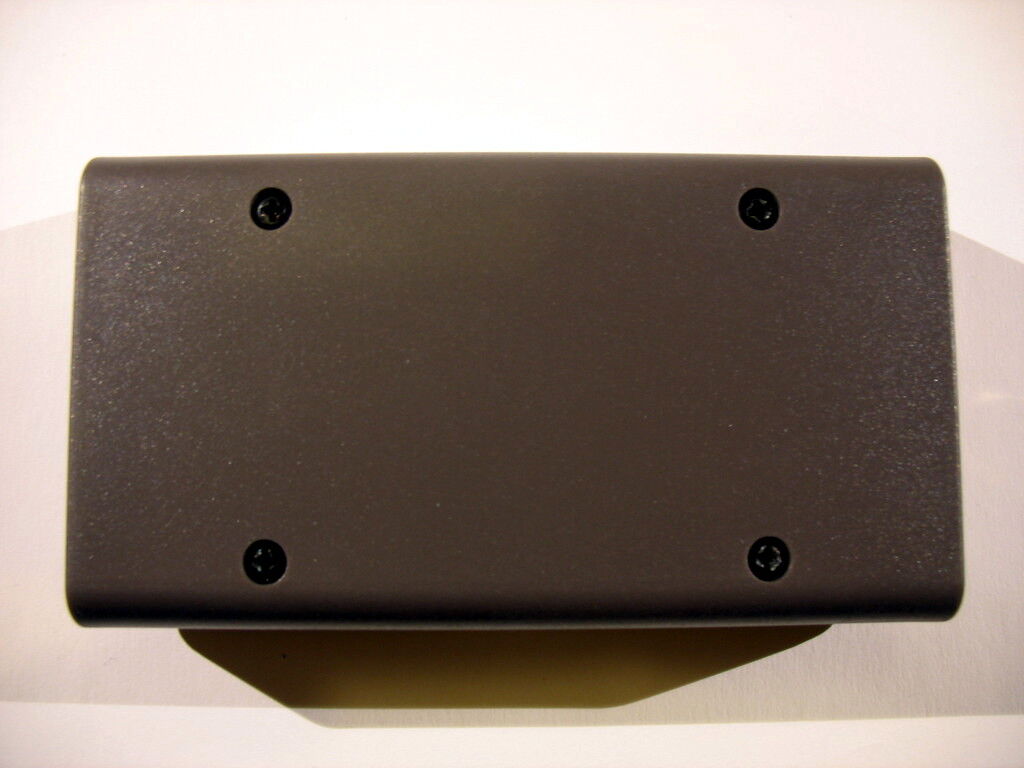

Device, bottom

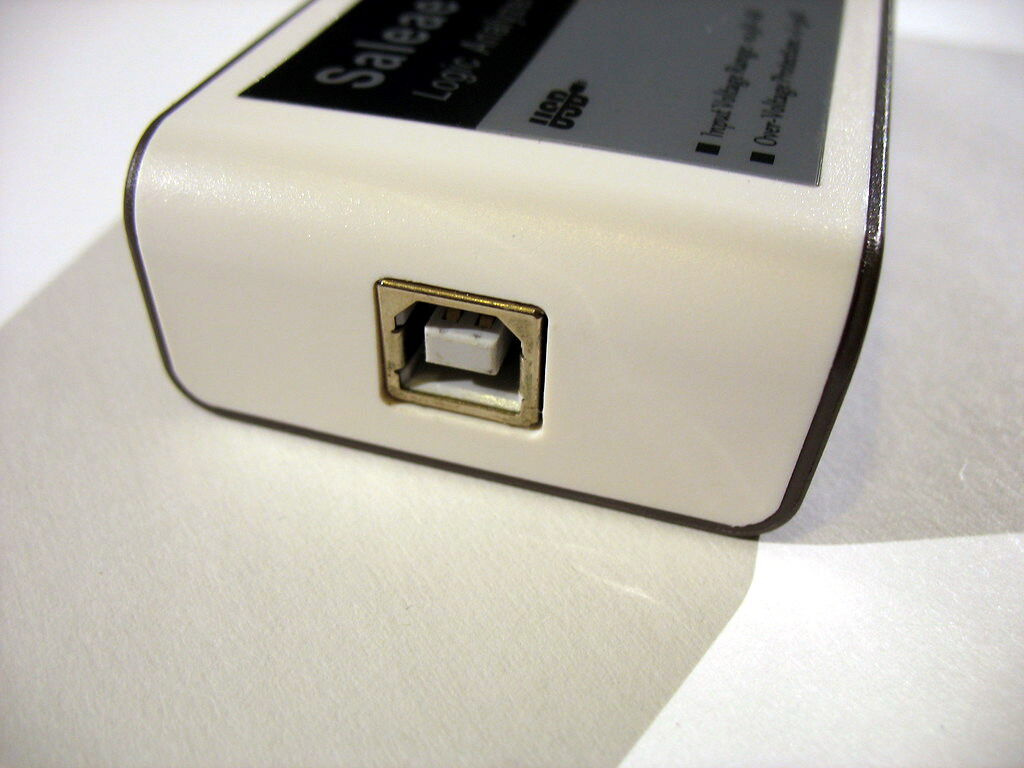

USB connector

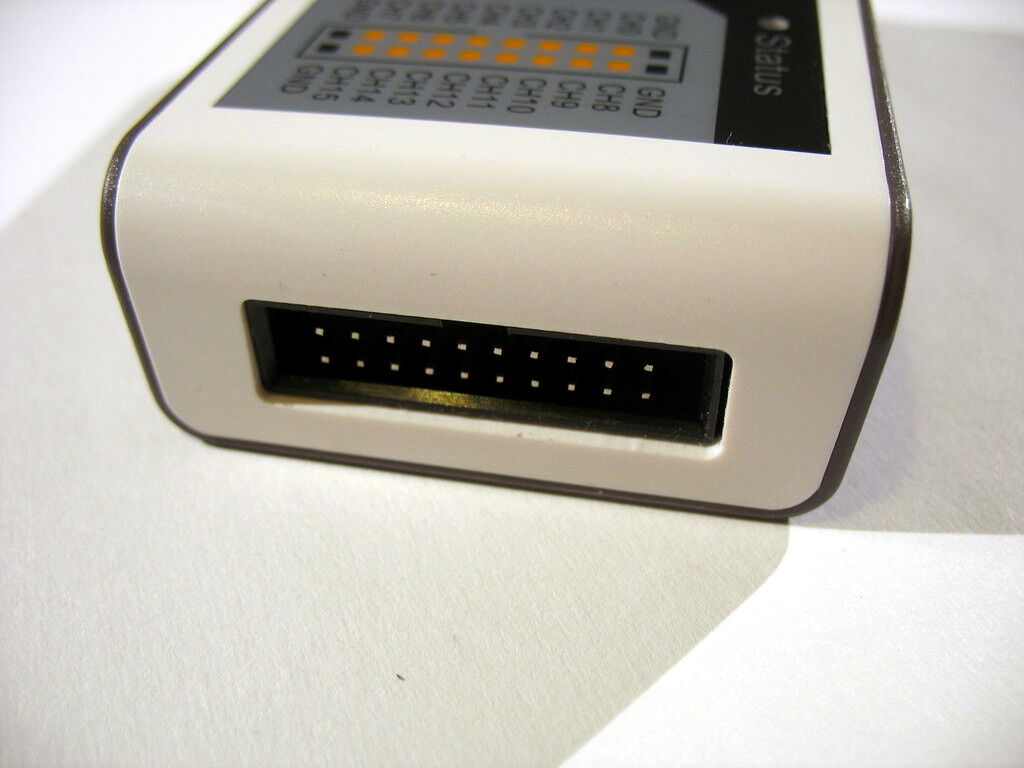

LA connector

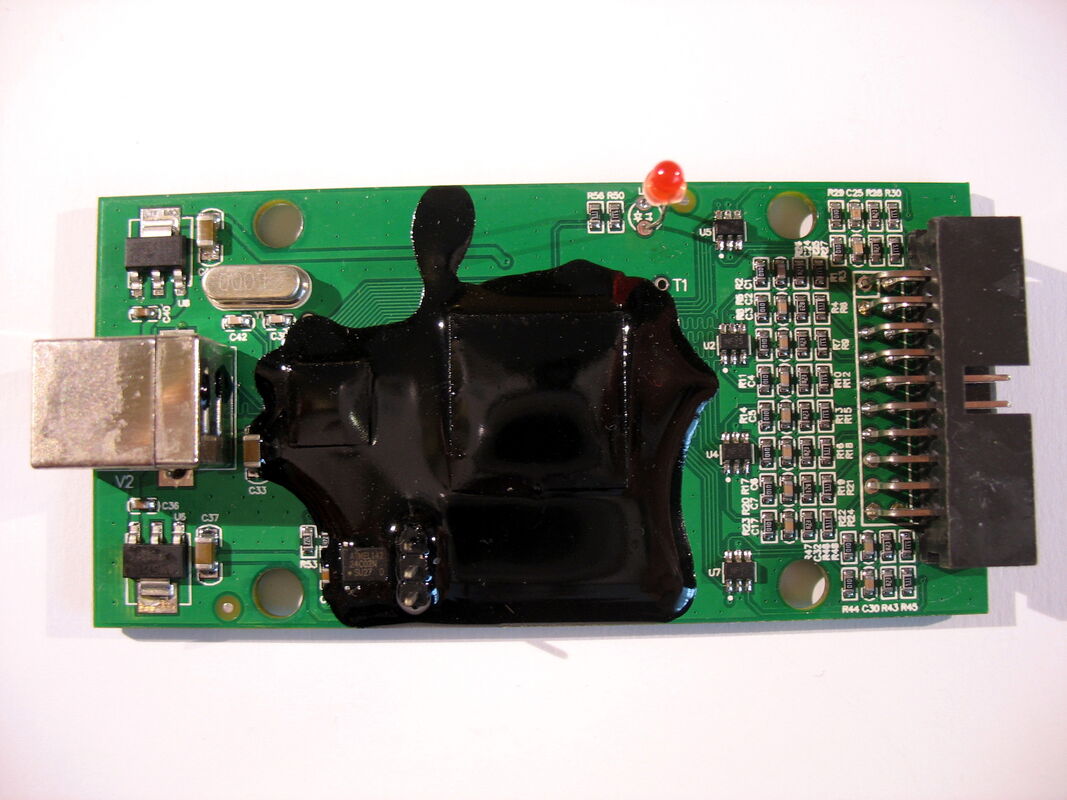

PCB, top

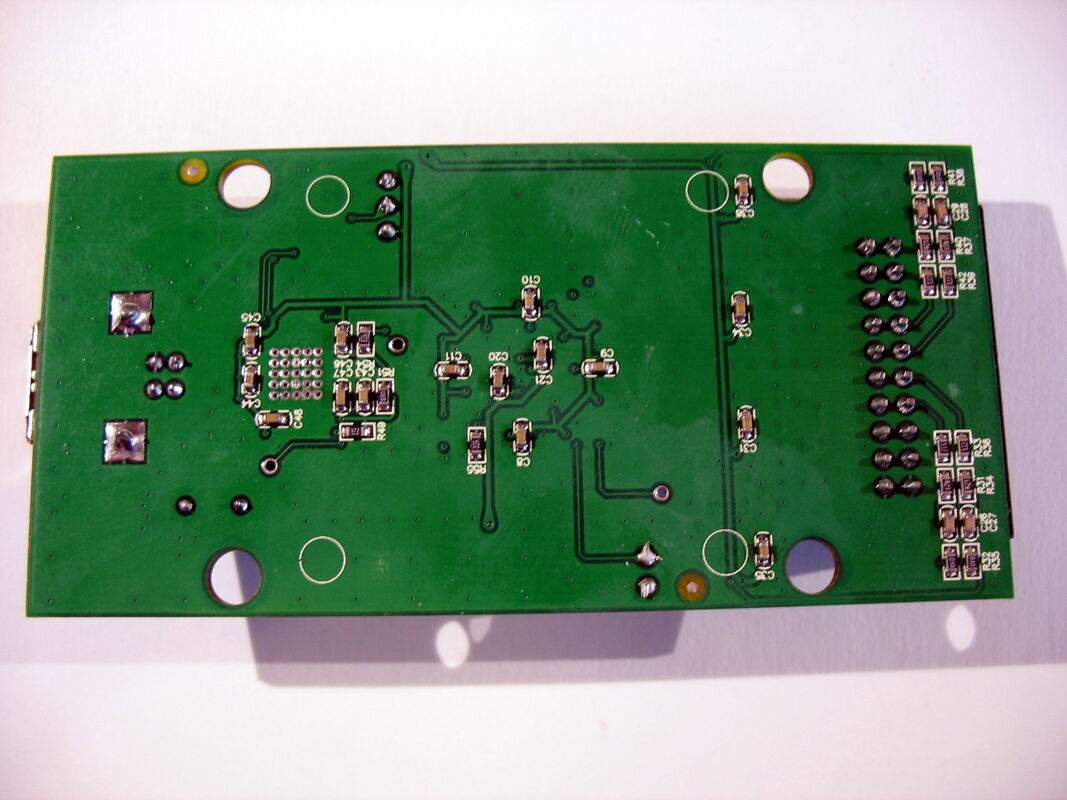

PCB, bottom

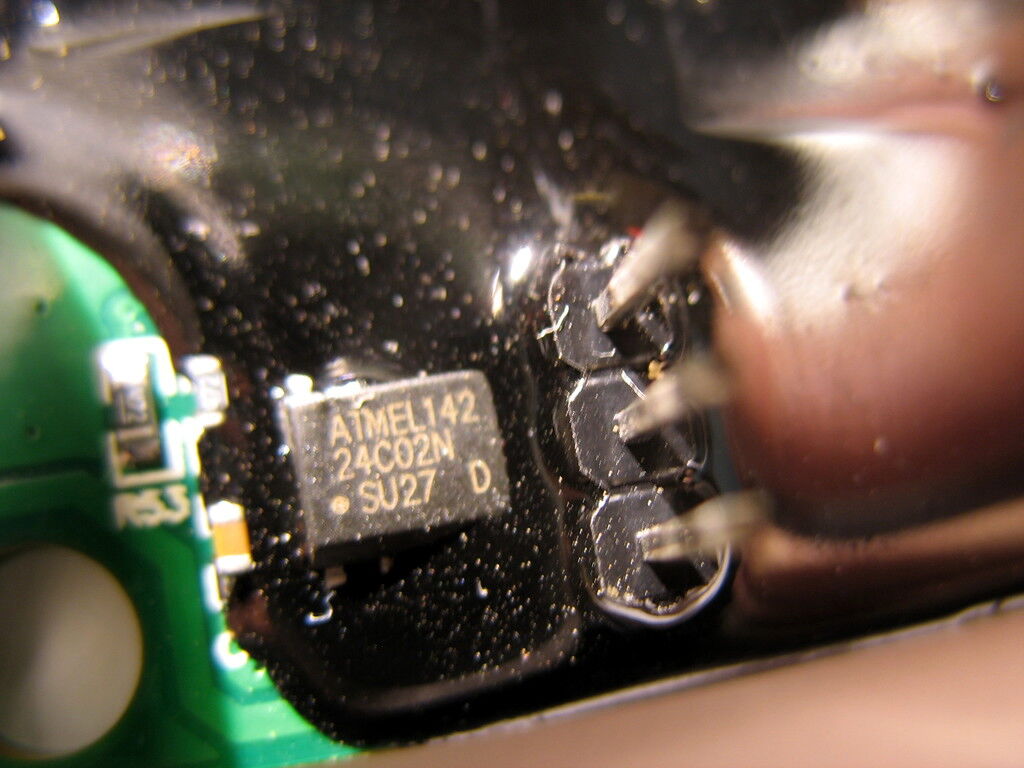

Atmel 24C02N

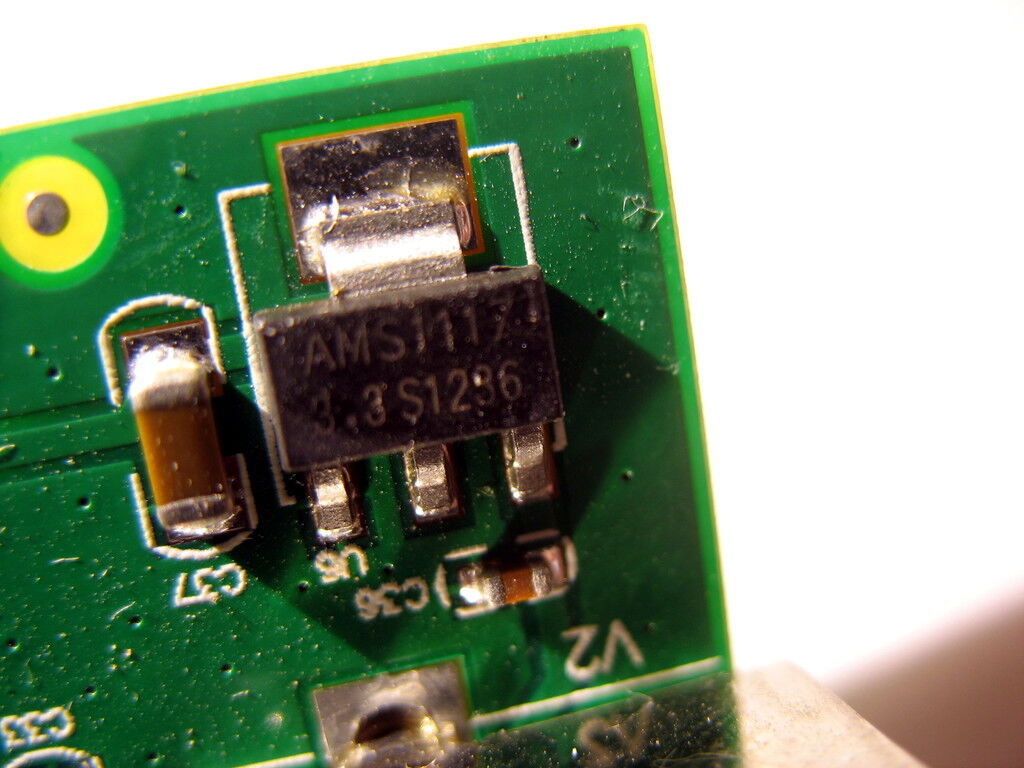

AMS117 3.3V

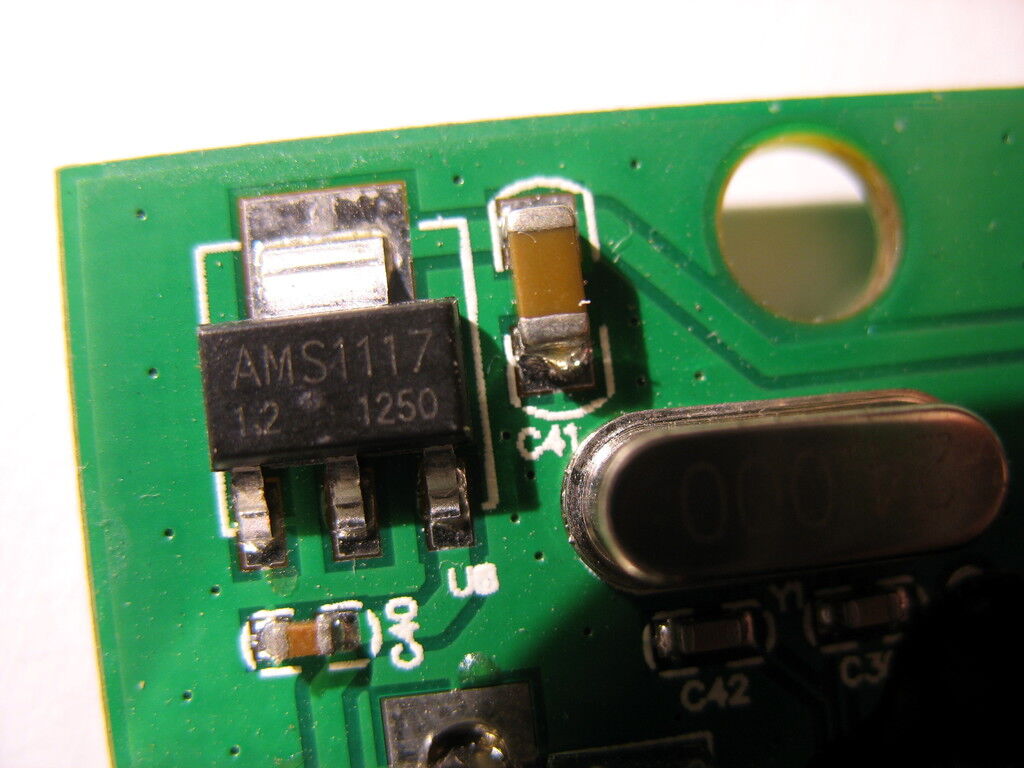

AMS117 1.2V

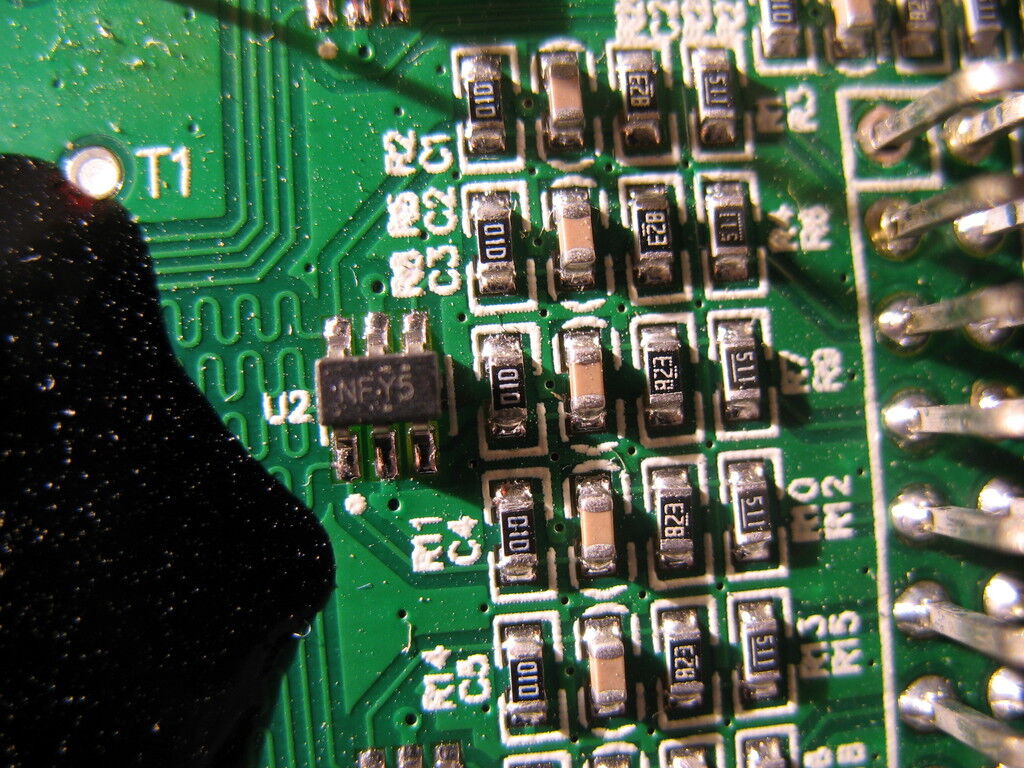

Input stage
Another device:

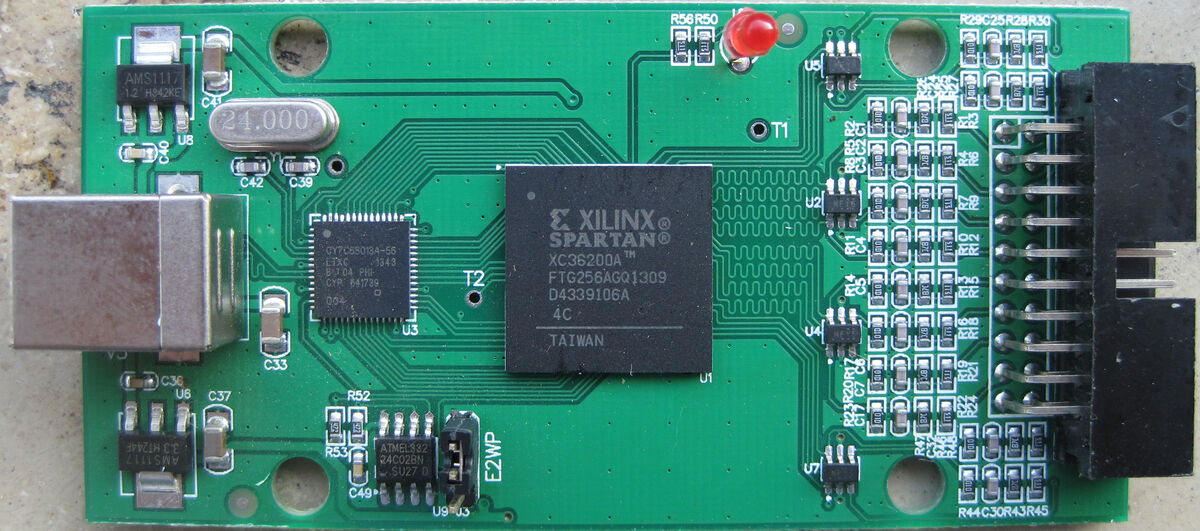

PCB, top, without black coating (September 2014)
Yet another device:

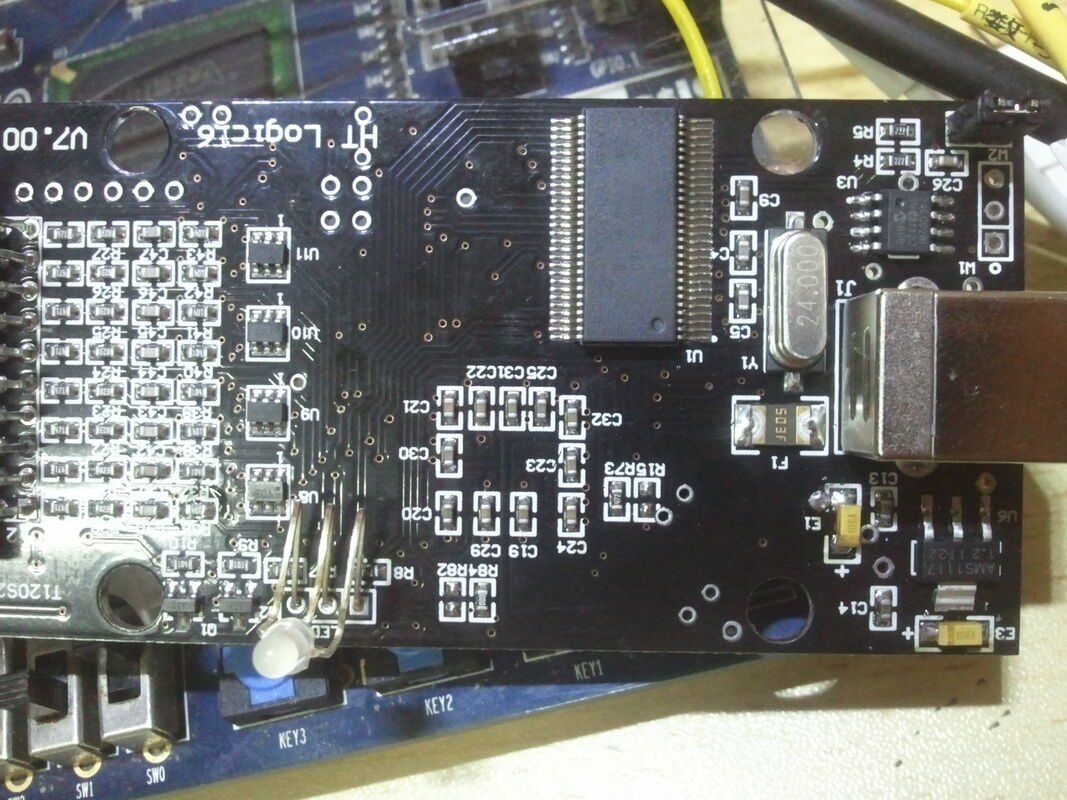

USB connector (of a Chinese version)

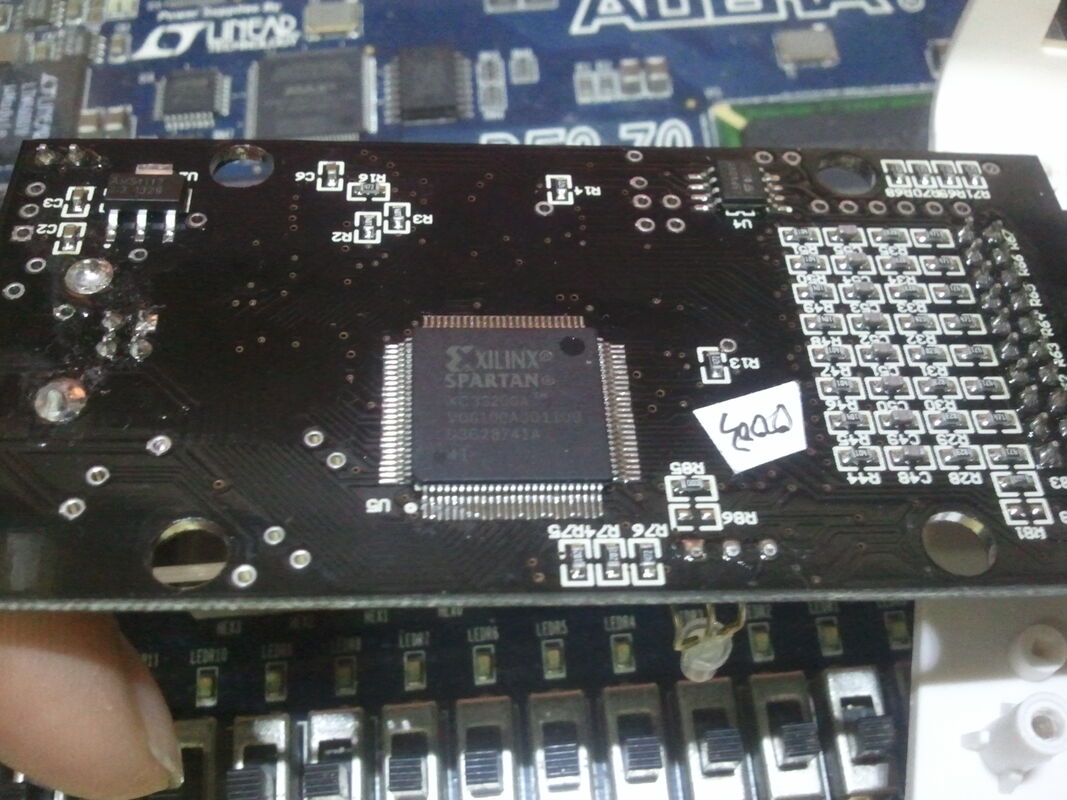

FPGA (of a Chinese version)
