XMOS XTAG-2
| Status | Planned |
| Channels | Unknown |
| Sample Rate | 50MHz @ 2ch, 16MHz @ 7ch |
| Memory | Unknown |
| Triggers | Unknown |
| Voltage Range | Unknown |
| Website | http://www.xmos.com/products/xkits/debug |
The XMOS XTAG-2 is a USB based, ????-channel logic analyzer with up to 50MHz sampling rate.
The XTAG-2 is actually a debug/eval board for XMOS ICs, but it can be used as a logic analyzer with a firmware written by Henk Muller .
See XMOS XTAG-2/Info for more details (such as lsusb -vvv output) about the device.
Hardware

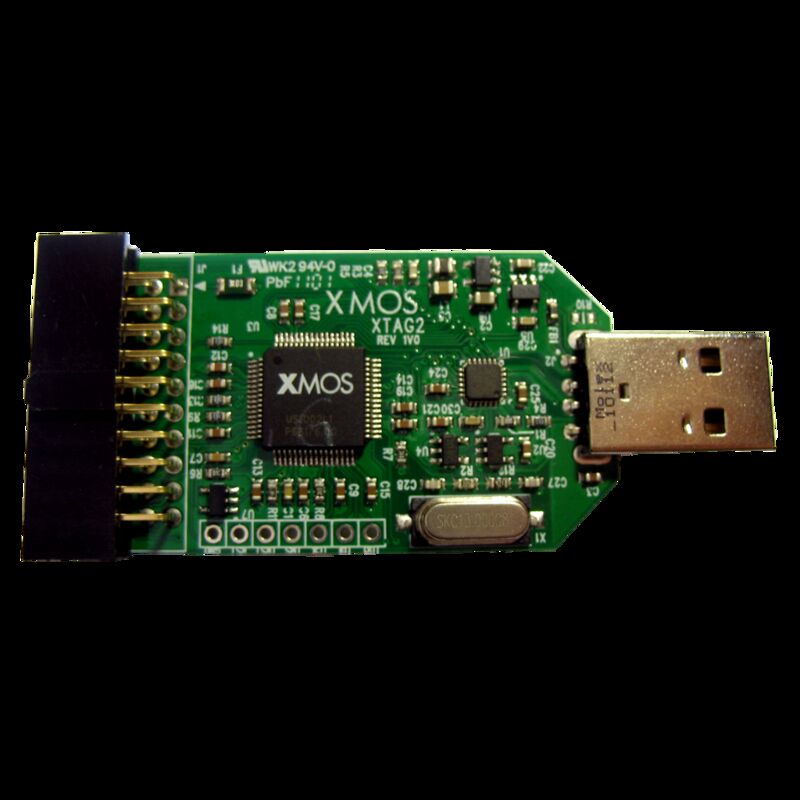

The main chip is an XMOS XS1-L1 XS1-L01A-LQ64 Datasheet . In the above picture, the 7-pin header markings are barely unreadable, but that's the jtag port for the xmos chip. From right to left: TDO, TDI, TCK, TMS, TRST#, RST# and GND.
The secondary chip is an SMSC HS Usb 2.0 transceiver .
Photos

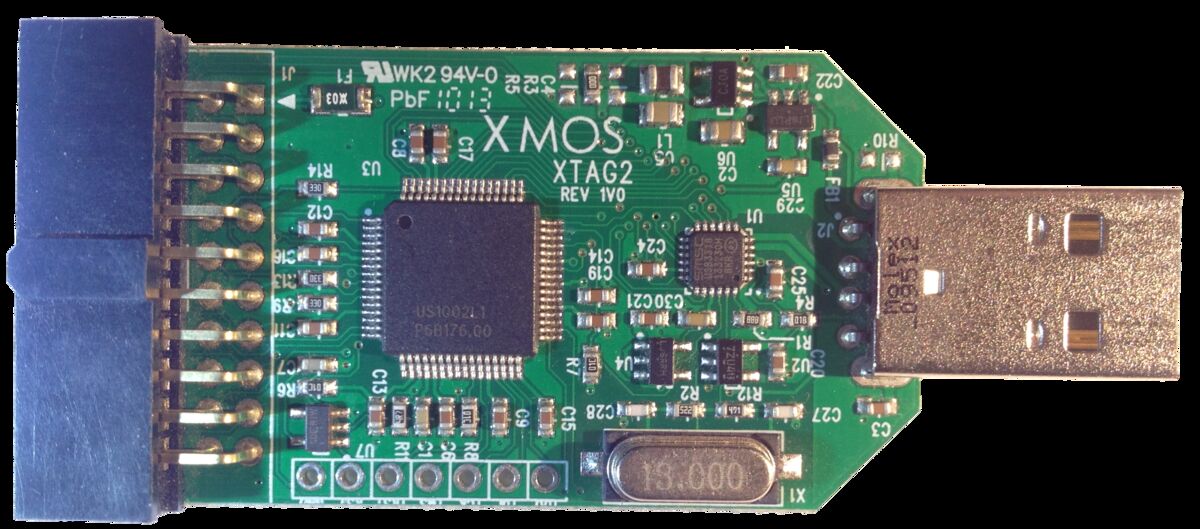

PCB, front

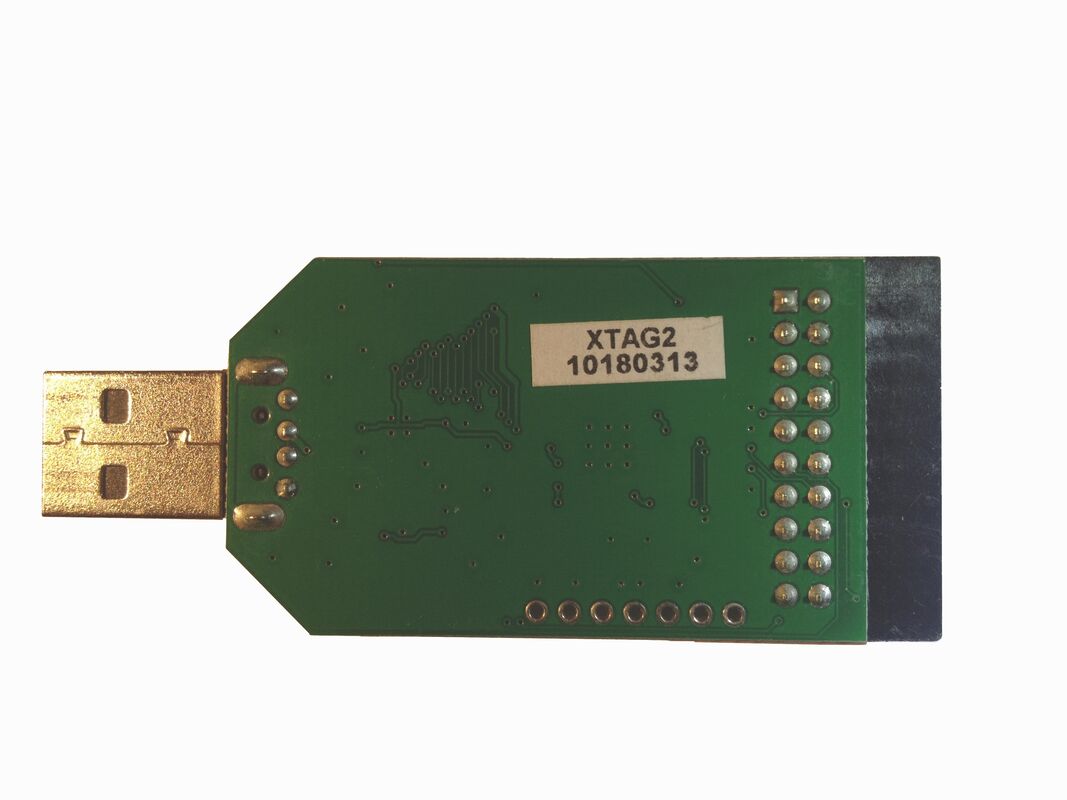

PCB, back
Protocol
TODO.
Resources
- XMOS project page of the logic analyzer firmware
- sw_logic_analyzer github repo
- XTAG-2 quickstart guide
- XTAG-2 hardware manual
- XTAG-2 loader (binary)
- XTAG-2 design files
