ZEROPLUS Logic Cube LAP-C(16032)
| Status | Supported |
| Channels | 16 |
| Sample Rate | 100MHz |
| Memory | 32Kbits/ch |
| Triggers | pattern, edge, |
| Voltage Range | -6V — 6V |
| Website | http://www.zeroplus.com.tw/logic-analyzer_en/products.php?pdn=1&product_id=253 |
The ZEROPLUS Logic Cube LAP-C(16032) is a USB-based, 16-channel logic analyzer with up to 100MHz samplerate.
See ZEROPLUS Logic Cube LAP-C(16032)/Info for some more details (such as lsusb -v output) on the device.
See ZEROPLUS Logic Cube LAP-C series for information common to all devices in this series.
Hardware
- Cypress CY7C1347G-250AXC (4Mbit pipelined sync SRAM, 250MHz)
See ZEROPLUS_Logic_Cube_LAP-C_series#Hardware for the hardware parts that are common to all devices in this series.
Photos

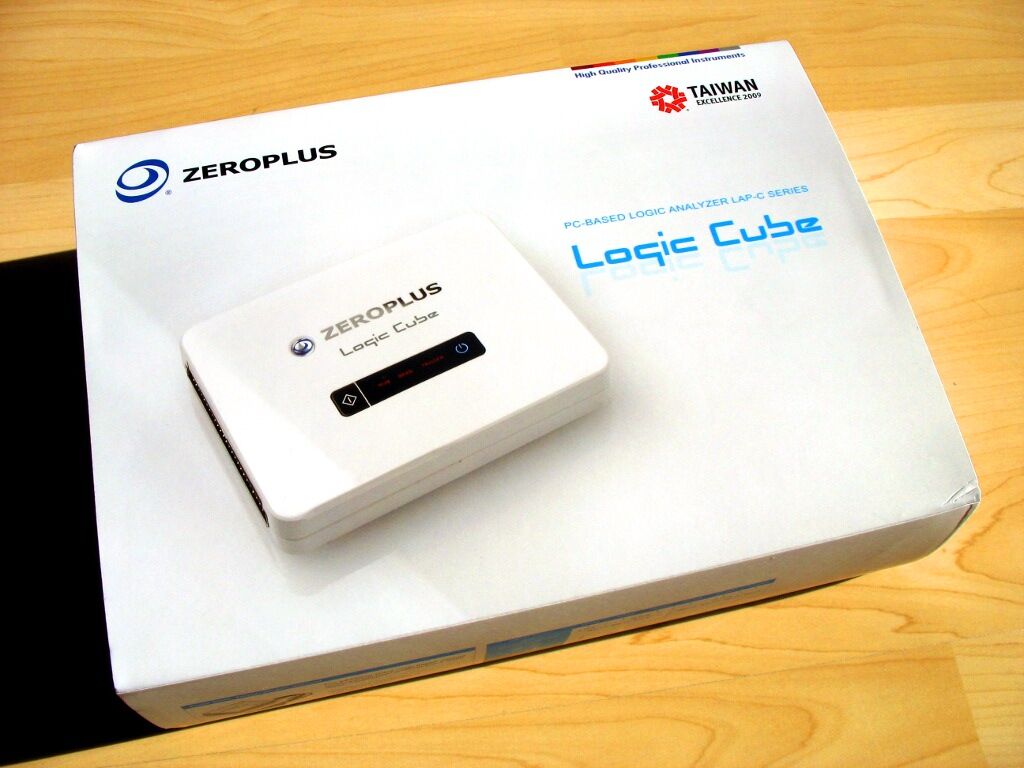

Package, front
Package, back

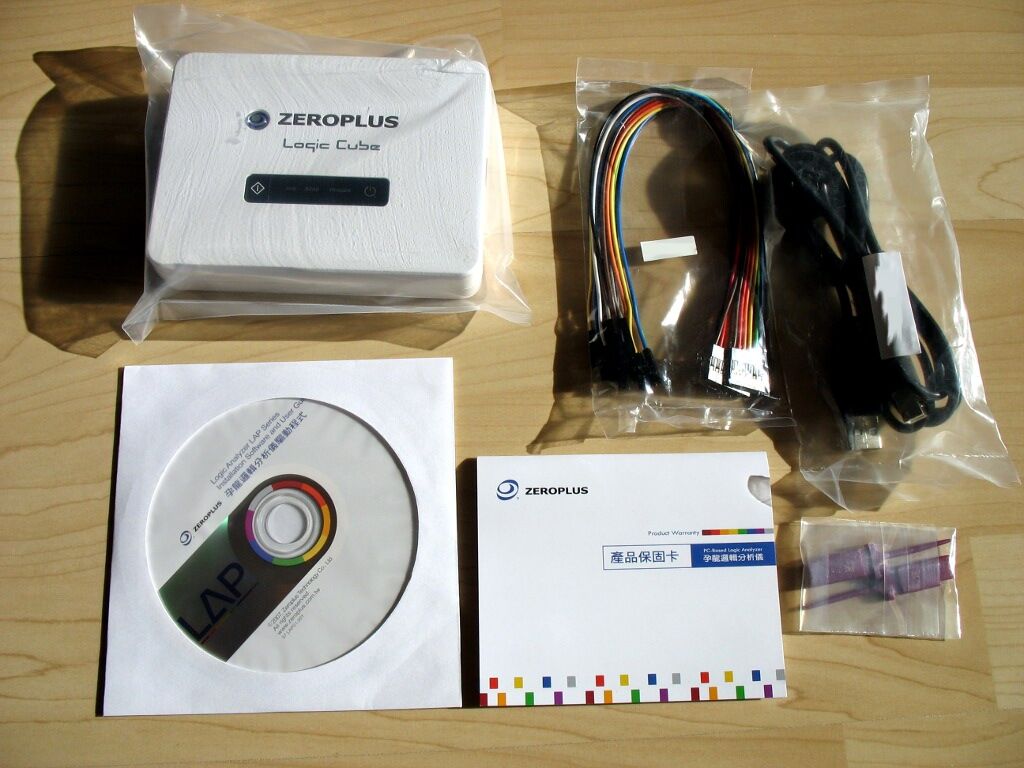

Package contents

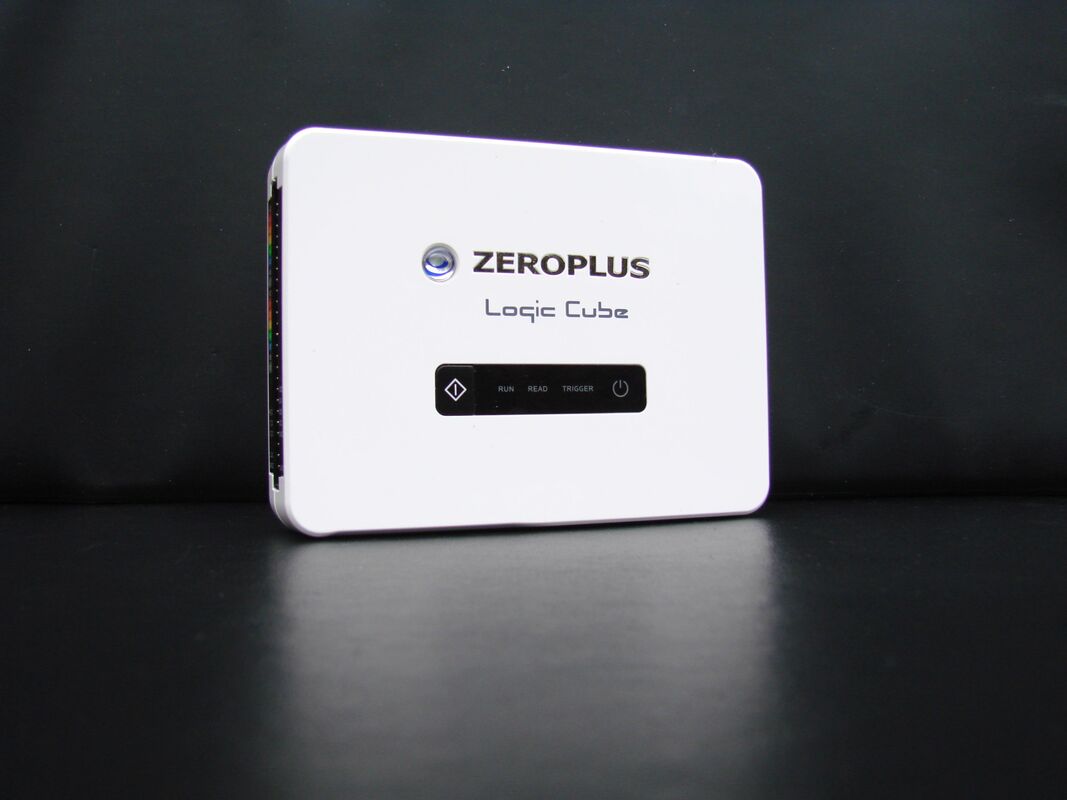

Device

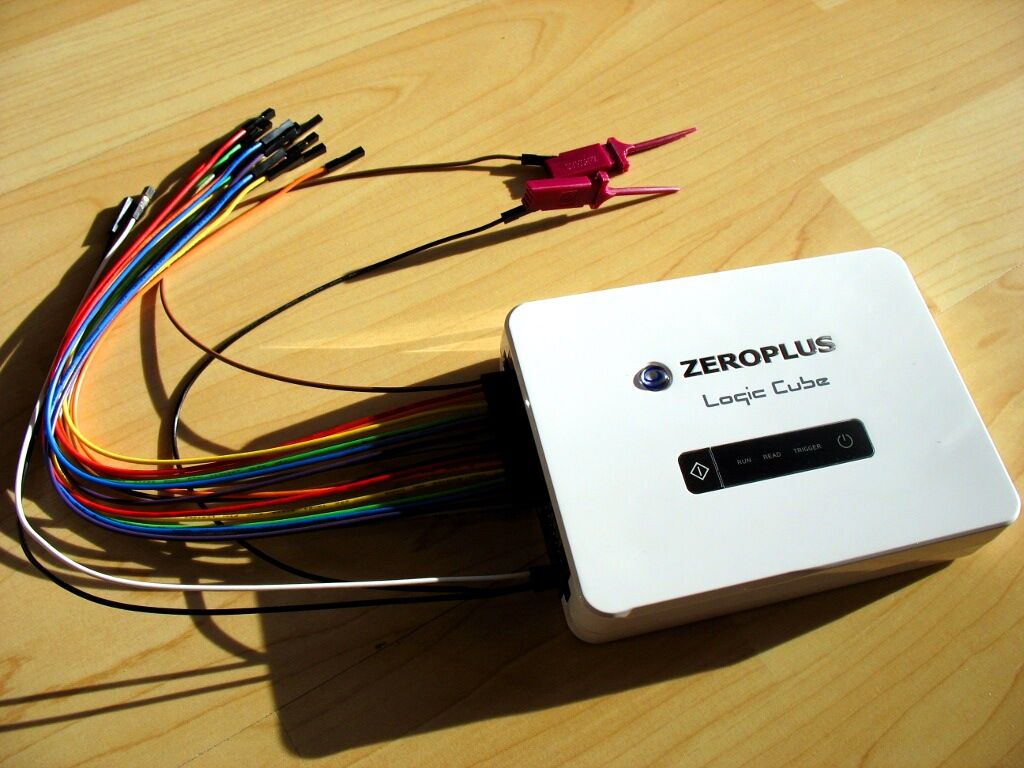

Device with probes

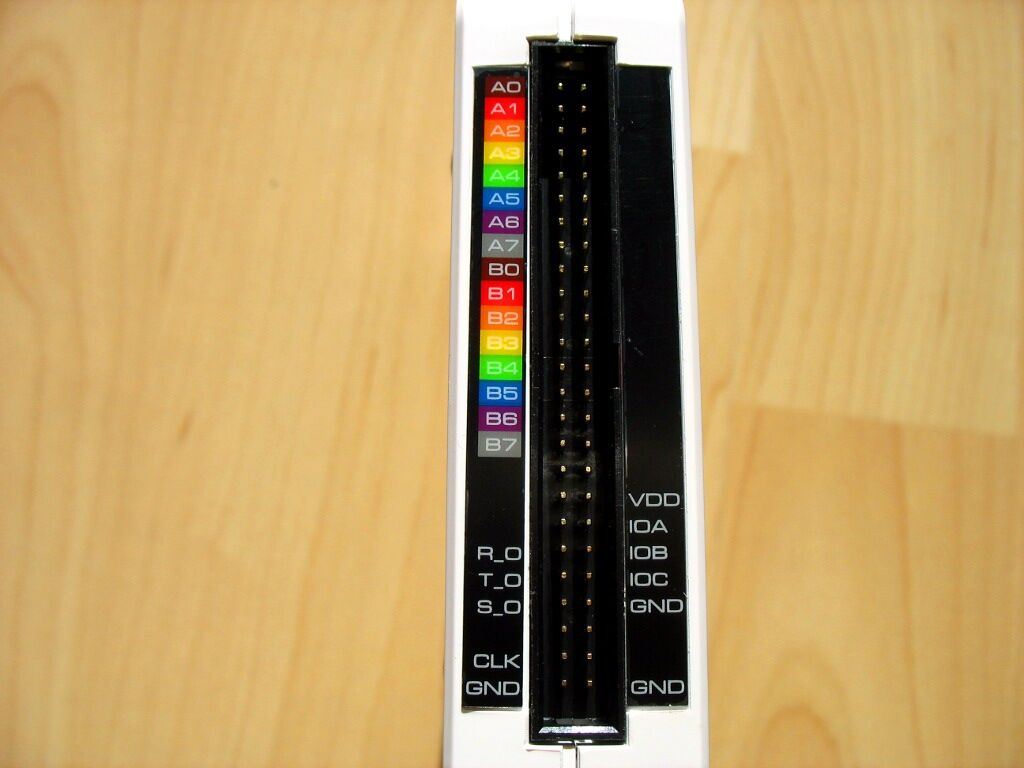

Pins / connector

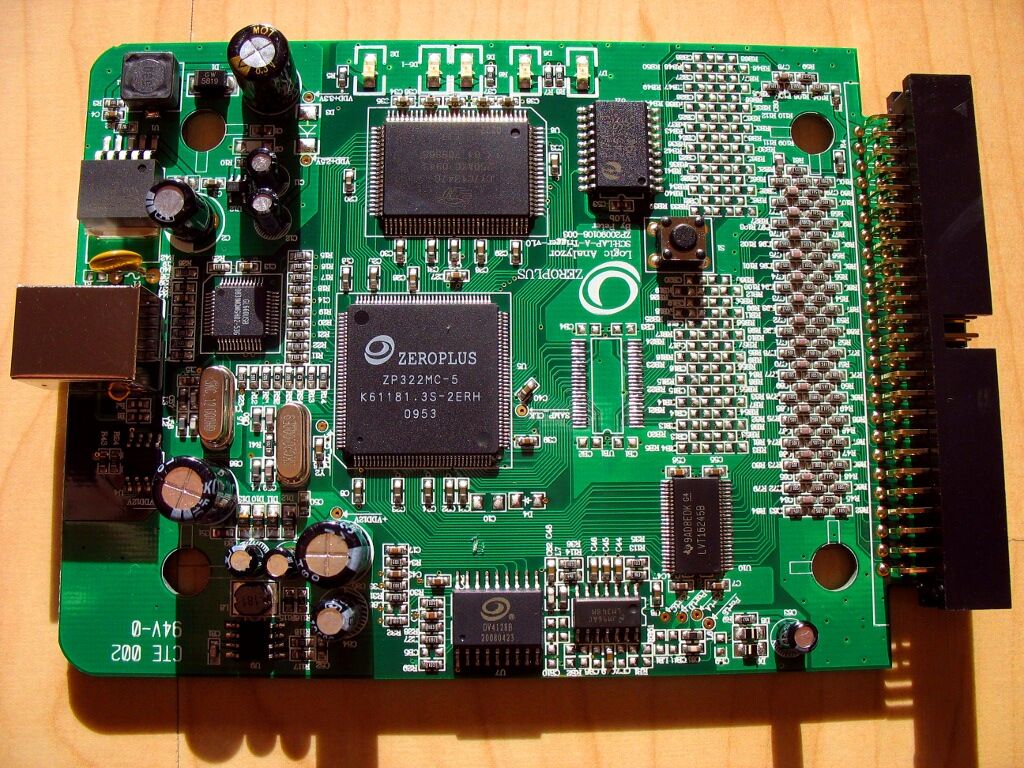

PCB, front

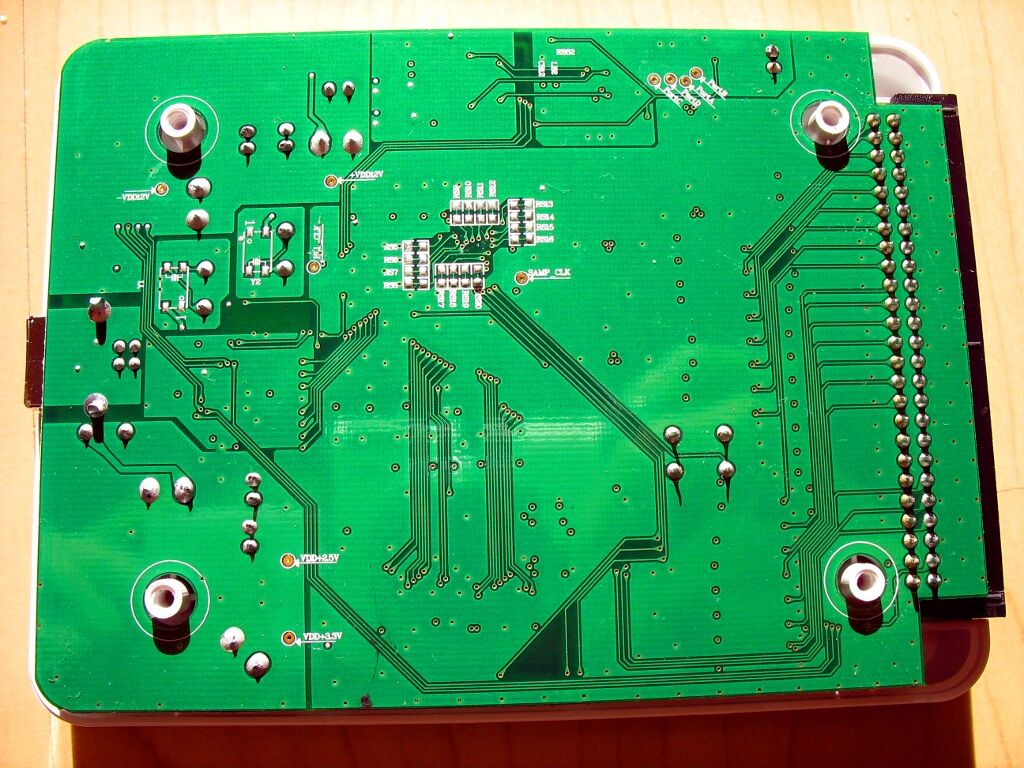

PCB, back
Another model:

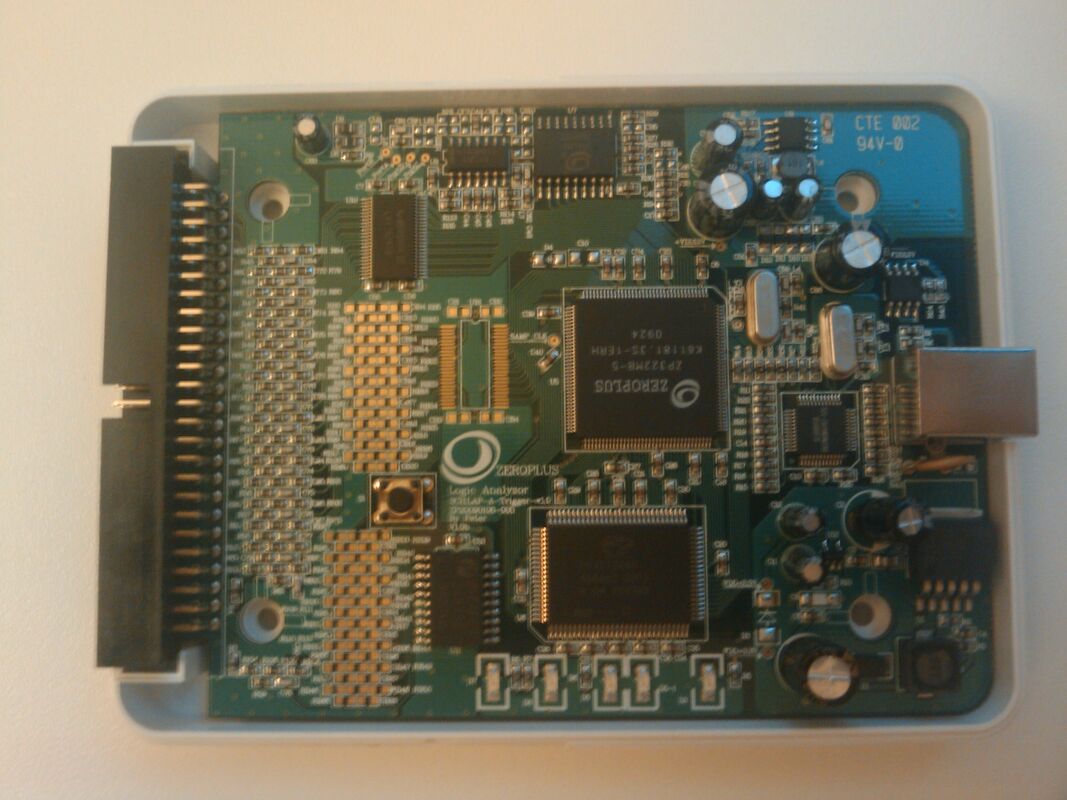

PCB, top
Yet another model:
(・ω<)~✧
missing image
(・ω<)~✧
missing image
Protocol
See ZEROPLUS_Logic_Cube_LAP-C_series#Protocol.
Resources
- Manual
- Vendor software
- Hack a Day: ZeroPlus logic cube modification
- Openschemes: ZeroPlus Logic Cube - Review and Teardown (pages: 1 , 2 ) -- Openschemes: ZeroPlus Logic Cube - The Modification! (pages: 1 , 2 , 3 , 4 , 5 )
- LostScrews: ZeroPlus LA-C16032 Logic Analyzer -- LostScrews: Reversing the ZeroPlus LA (USB) protocol -- bushing's flickr photoset of the device -- LostScrews: Upgrading the ZeroPlus Logic Analyzer -- bushing's "ZeroPlus upgrade" flickr photoset
