Hantek 6254BD
| Status | Planned |
| Channels | 4 |
| Website | http://www.hantek.com/en/ProductDetail_2_10164.html |

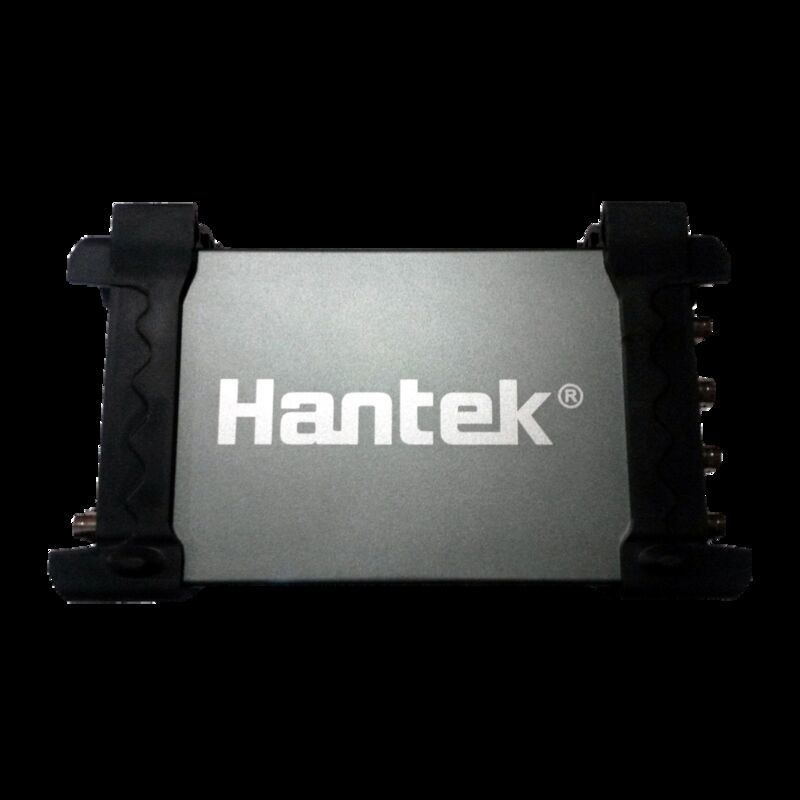

The Hantek 6254BD is a USB-based, 4-channel oscilloscope with an analog bandwidth of 250MHz and 1GSa/s sampling rate.
See Hantek 6254BD/Info for more details (such as lsusb -v output) about the device.
Hardware
- FPGA: Xilinix Spartan-6 XC6SLX16 (datasheet )
- SPI flash: Macronix MX25L4006E (datasheet )
- 8-bit 1GSa/s ADC: Analog Devices HMCAD1511 (datasheet )
- Integrated synthesizer and VCO: Analog Devices ADF4360-7 (datasheet )
- 12-bit 165MSa/s DAC: Texas Instruments DAC902E (datasheet )
- USB controller: Cypress CY7C68013A (FX2) (datasheet )
- 6Kbit I²C EEPROM: Microchip 24LC64
- 3-State shift register: ON Semiconductor MC74HC595A (datasheet )
Photos

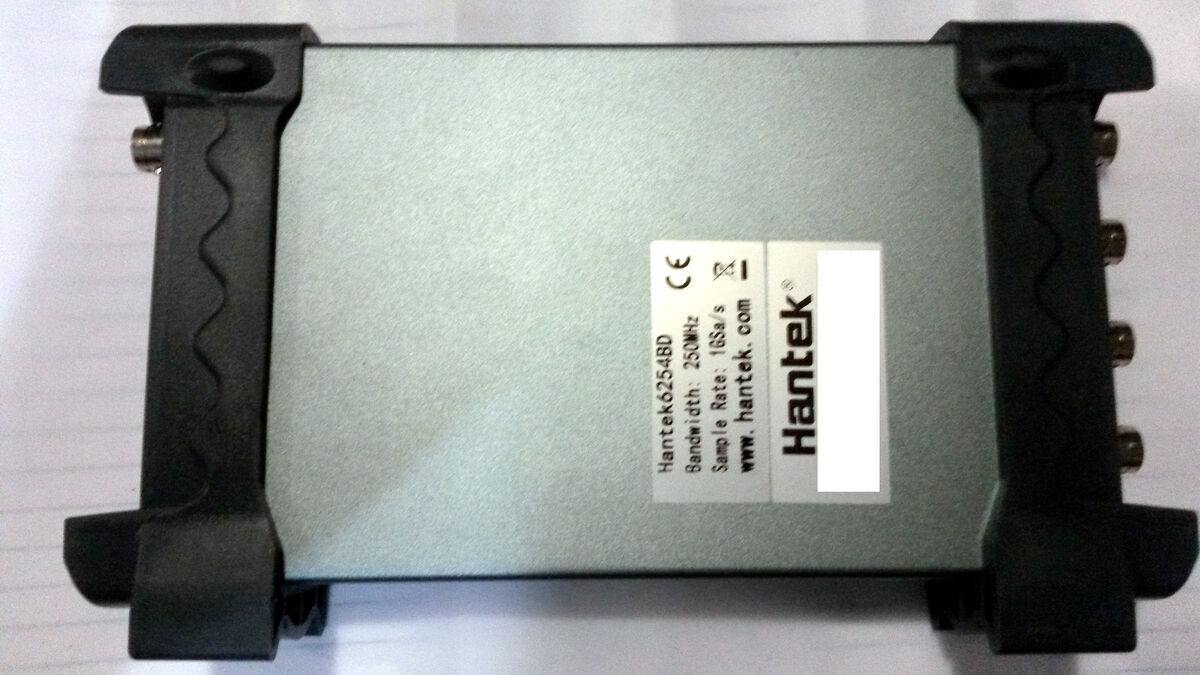

Device, top

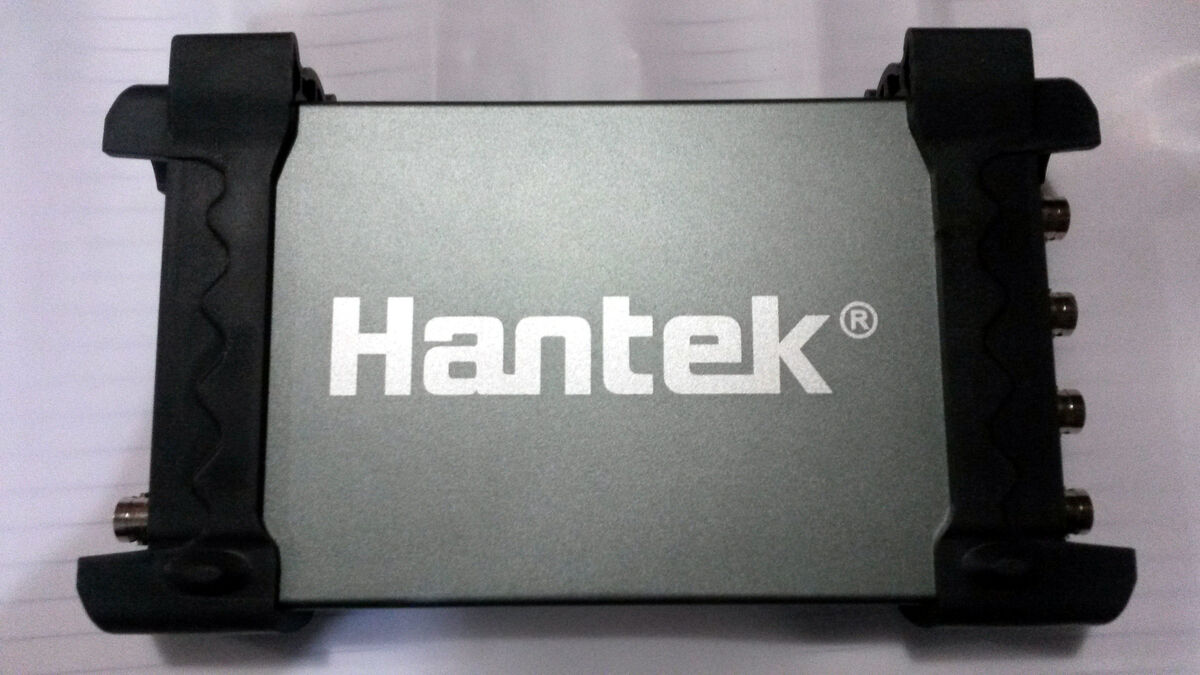

Device, top

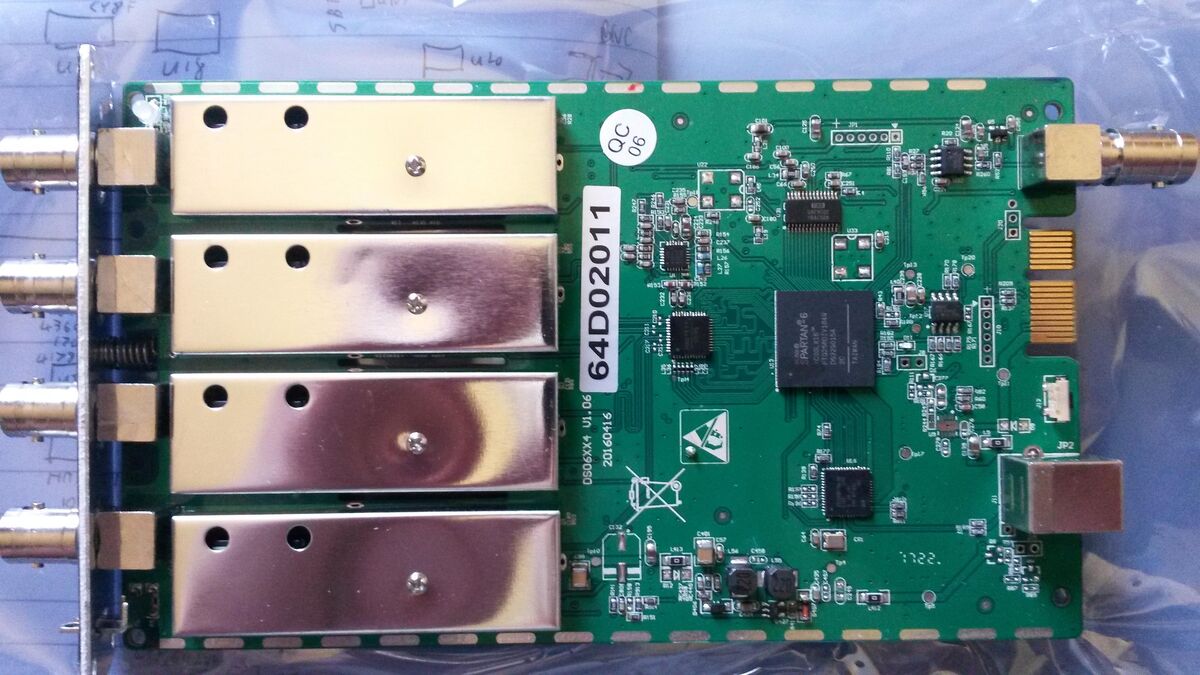

PCB, top

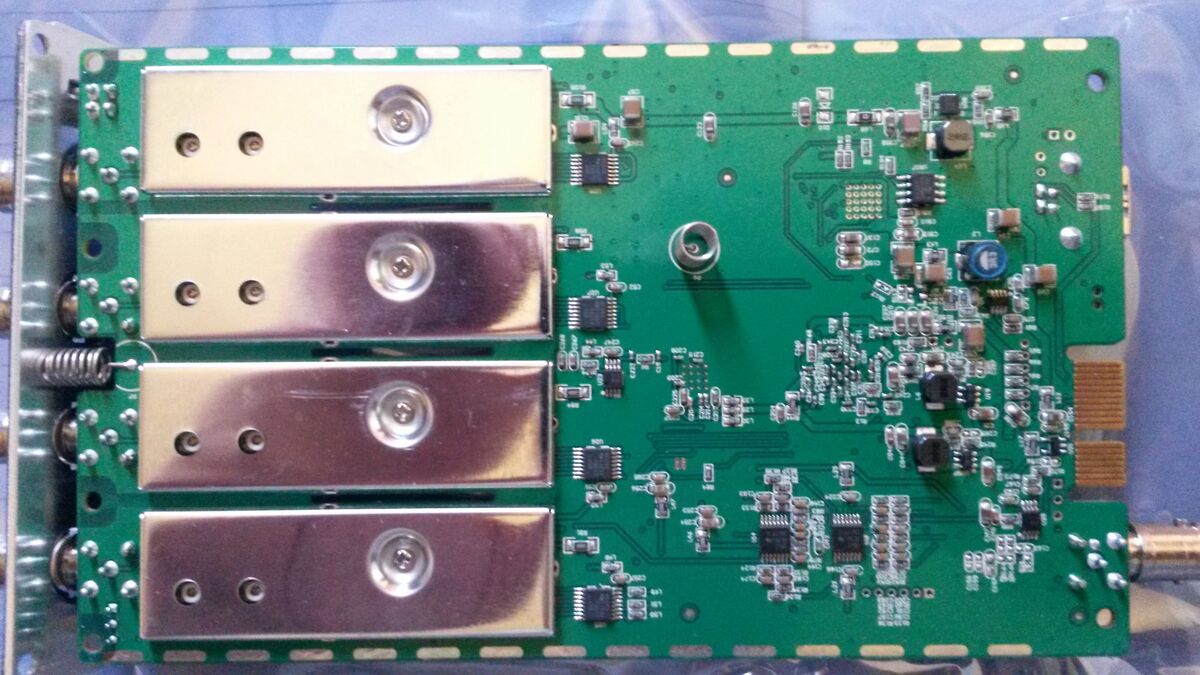

PCB, top
Resources
- Manual
- Vendor software
- Vendor driver
- Vendor SDK
- eevblog.com: Hantek 6254BD 250MHz 1GSa/s PC/USB DSO
- github libhantek6xx4 , github pyhantek , github hantek6004
