Rigol DS1102E
| Status | Supported |
| Channels | 2 |
| Website | http://www.rigolna.com/products/digital-oscilloscopes/ds1000e/ds1102e/ |
The Rigol DS1102E is a 100MHz, 1GSa/s, 2-channel digital storage oscilloscope.
See Rigol DS1102E/Info for more details (such as lsusb -v output) about the device.
See Rigol DS1000 series for information common to all devices in this series.
Hardware
TODO.
Photos

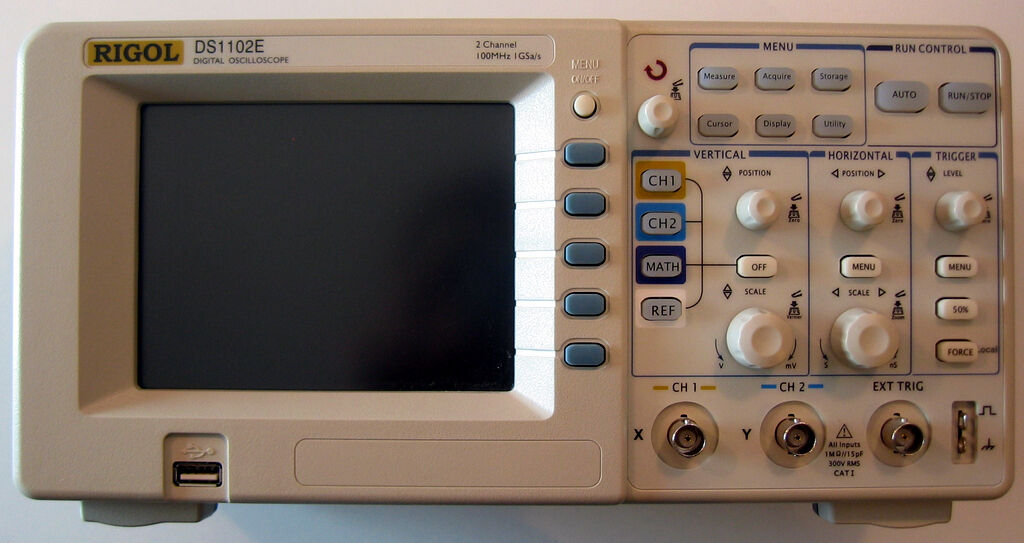

Device, front

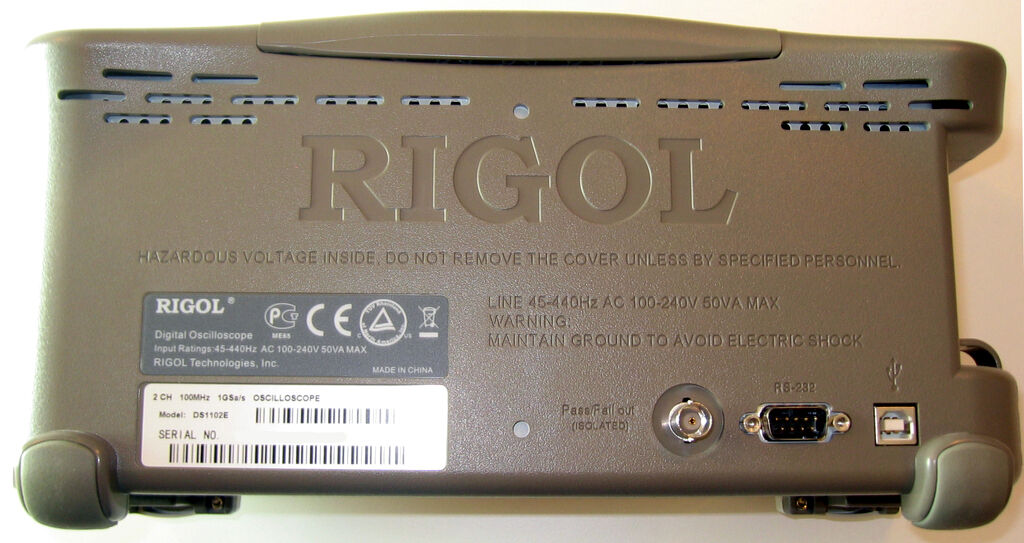

Device, back

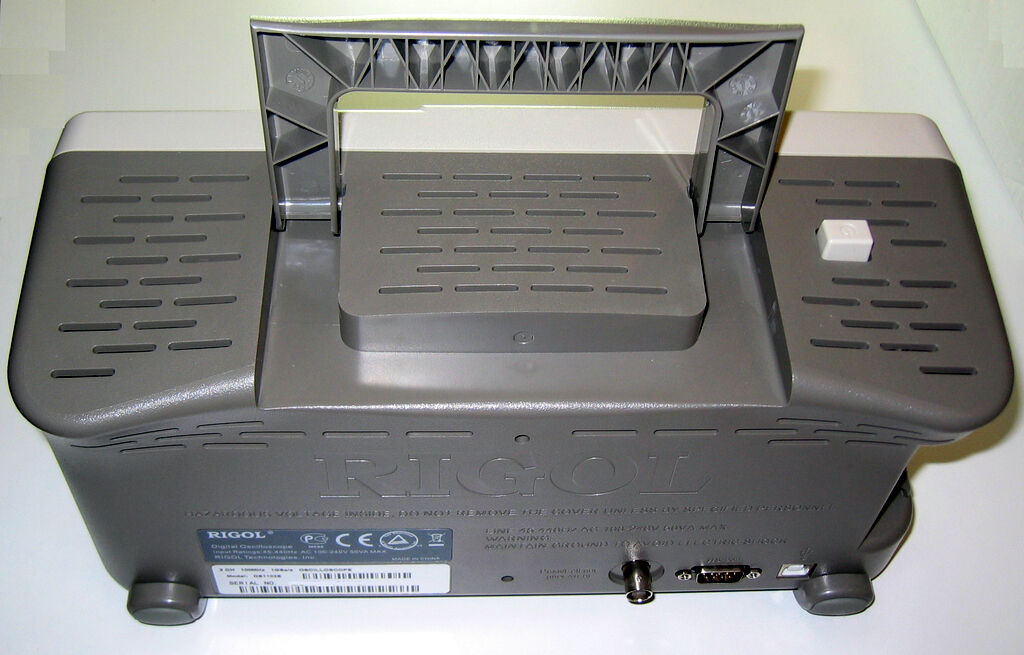

Device, top

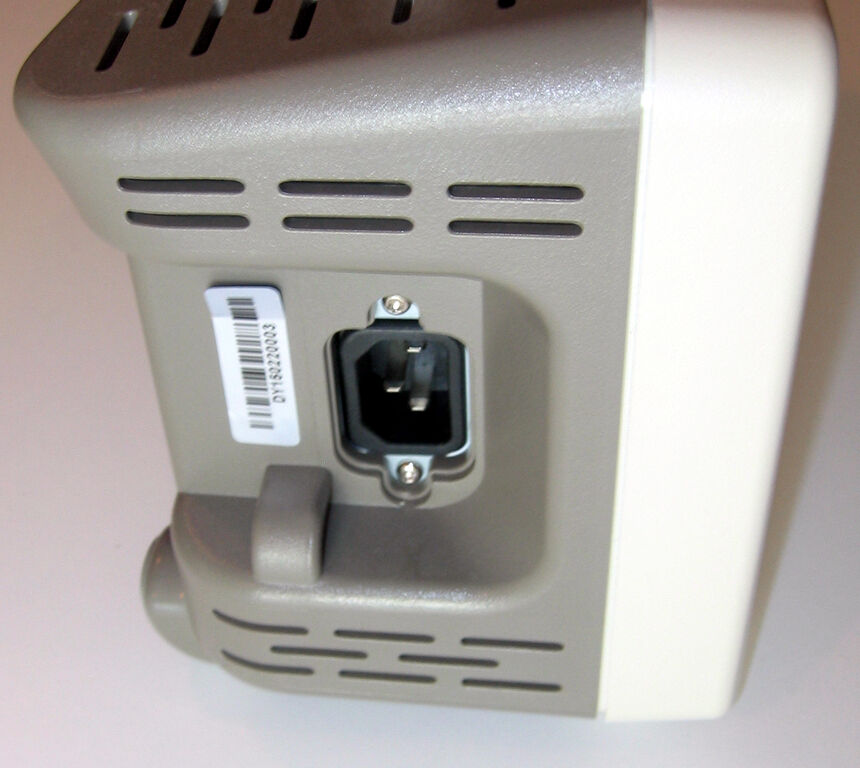

Device, left

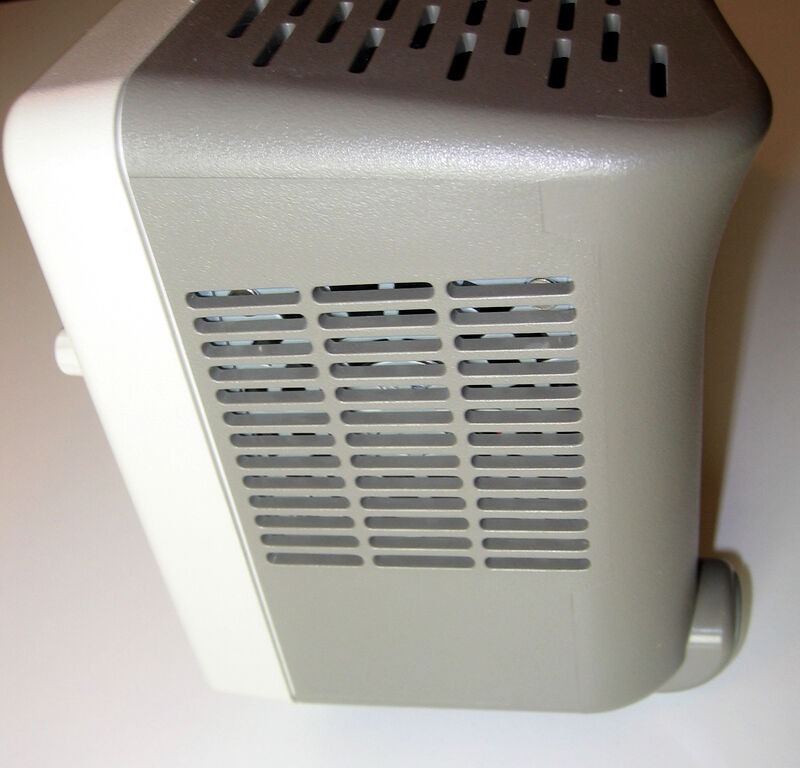

Device, right

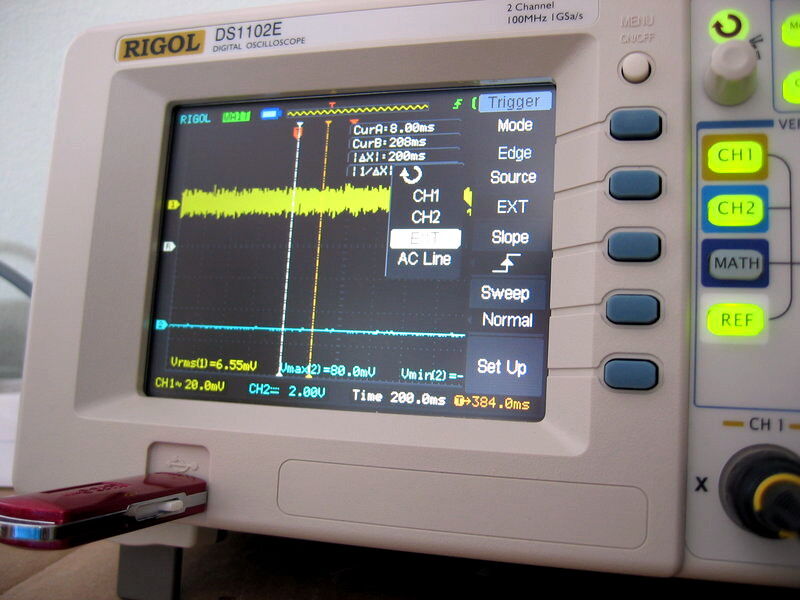

Waveform
Protocol
See Rigol DS1000 series#Protocol.
Resources
- Rigol: DS1102E related documents (datasheet, user guide, ...)
- ajawam1: Rigol DS1102E teardown
- DS1000E Programming Guide (link dead) -- Mirror
- Rigol Homebrew wiki (lots of useful info) -- Developer blog , software/protocol/command info
