Tektronix TDS2024B

Status In Progress
Channels 4
Website http://www.tek.com/oscilloscope/tds1001b-manual/tds1000b-and-tds2000b-series

The Tektronix TDS2024B is 4 channel oscilloscope with 2GS/s sampling rate, analog bandwidth of 200MHz and USB connectivity (optionally GPIB via the TEK-USB-488 adapter).

See Tektronix TDS2024B/Info for more details (such as lsusb -v output) about the device.

See Tektronix TDS2000B series for information common to all devices in this series.

Hardware

Photos

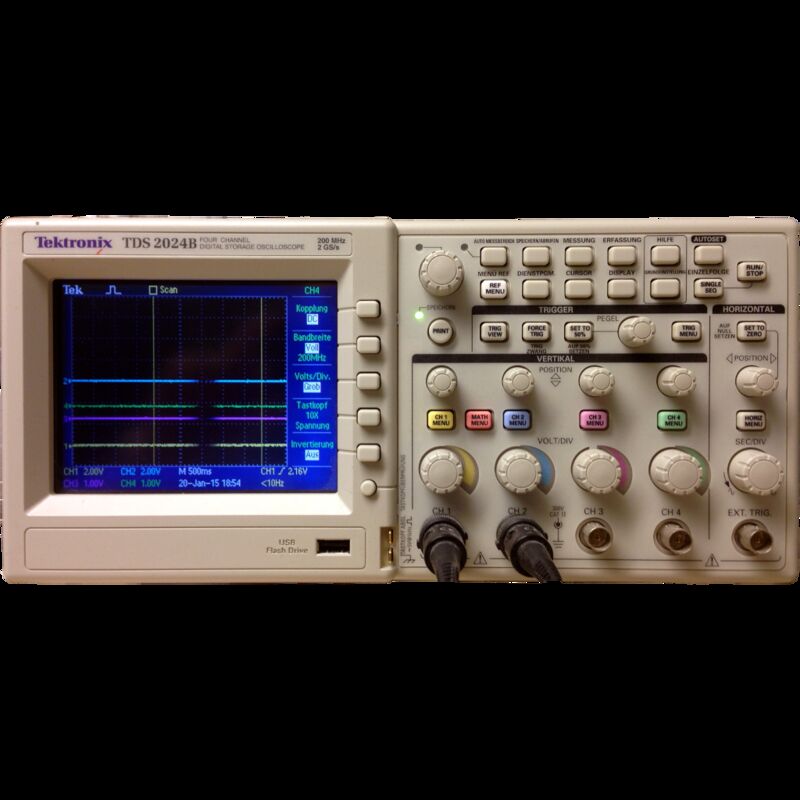

Device, front

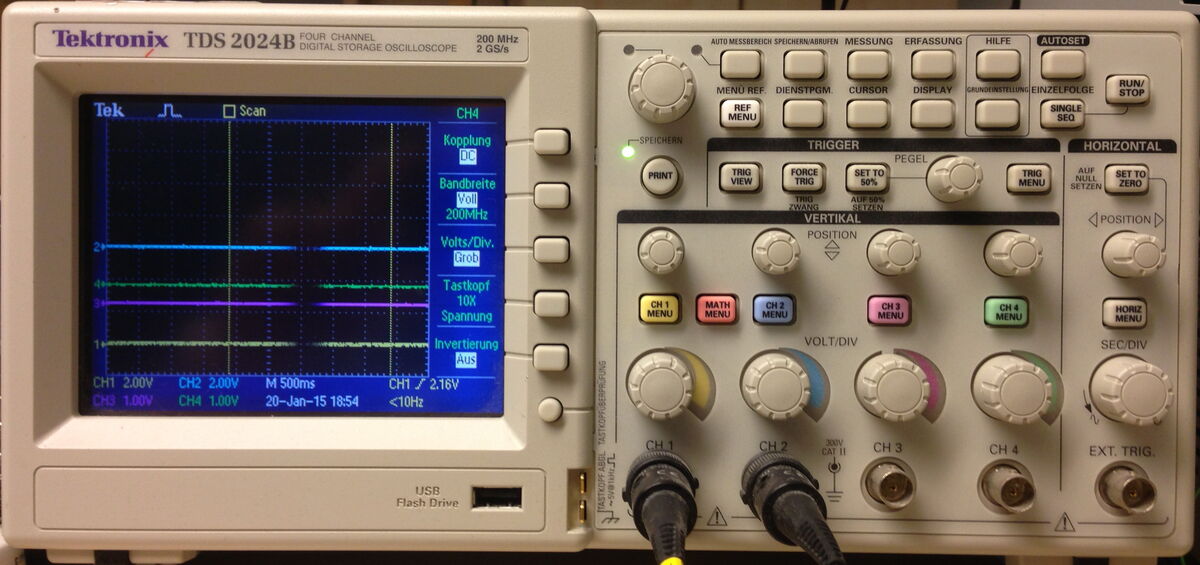

Device, front

Usage

Test your device for USB connection with Linux (also works in an VM):

$ *echo IDN? > /dev/usbtmc1 && cat /dev/usbtmc1

Output should be similar to this:

TEKTRONIX,TDS 2024B,C100044,CF:91.1CT FV:v22.16

Protocol

See Tektronix TDS2000B series#Protocol.
